Amplifier
20~3000MHz, Gain30dB, Noise figure2.5dB, P-1dB14dBm, N
- DLNA8-20-3000
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 2 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 1.5 | |||
| P-1dB | 14 | dBm | ||
| Max input power | 15 | dBm | ||
| OIP3 | 29 | dBm |
Other parameters
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | 220V交流供电 |

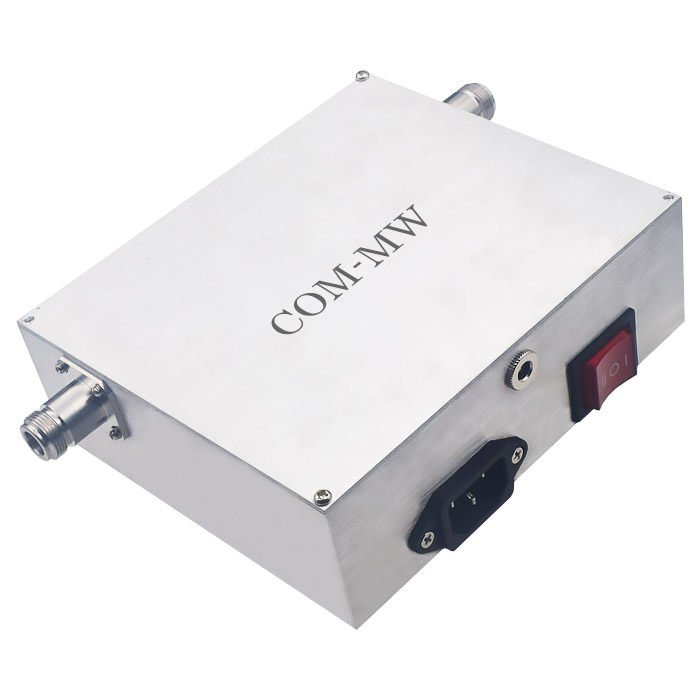

Reference picture

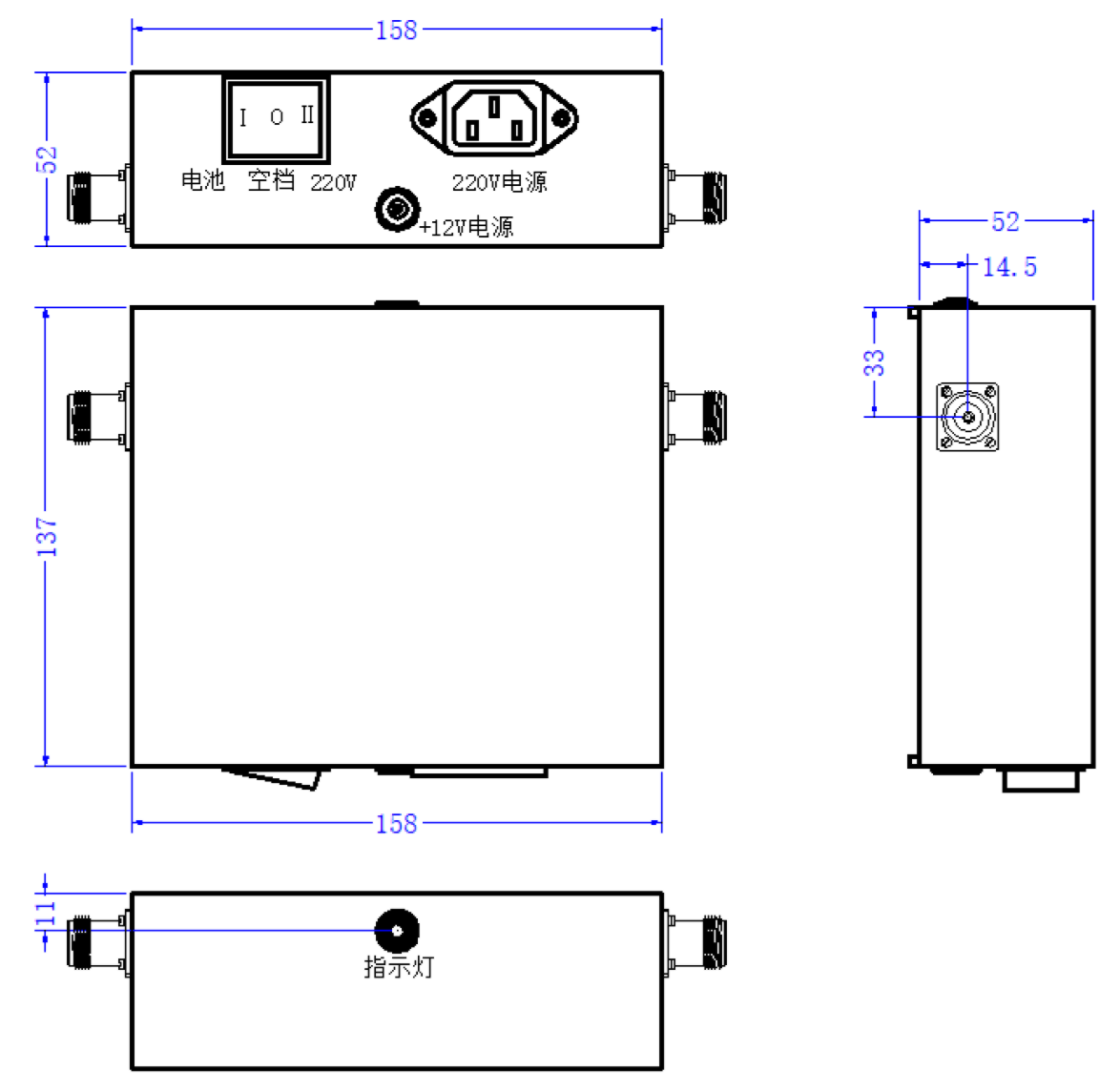

Configuration(mm)
Note
, When designing, consider the issue of amplifier heat dissipation.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
