Power amplifier
4.8~9.2GHz, Gain36dB, Psat25dBm, SMA
- DPA8-4.8-9.2G-3604
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 4.8 | ~ | 9.2 | GHz |
| Gain | 36 | dB | ||
| Gain flatness | ±0.75 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 24 | dBm | ||
| Psat | 25 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 13 | dBc | ||
| OIP3 | 33 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency GHz | S11 SWR | S22 SWR | GaindB | NFdB | P-1 OUT dBm | Psat dBm |
| 1 | 123.51 | 1.26 | 26.18 | 4.04 | 13.5 | 15.8 |
| 2.36 | 2.12 | 1.25 | 36.87 | 1.45 | 25.3 | 25.5 |
| 3.71 | 1.81 | 1.25 | 36.57 | 1.34 | 24.9 | 25 |
| 5.07 | 1.83 | 1.19 | 36.66 | 1.3 | 25.4 | 25.7 |
| 6.43 | 1.71 | 1.12 | 36.13 | 1.32 | 25.2 | 25.5 |
| 7.79 | 1.44 | 1.21 | 36.18 | 1.3 | 24.7 | 25.2 |
| 9.14 | 1.19 | 1.38 | 36.28 | 1.52 | 24.8 | 25.4 |
| 10.5 | 1.08 | 1.55 | 35.98 | 1.53 | 25 | 26 |
| 11.86 | 1.31 | 1.41 | 35.51 | 1.69 | 25.4 | 26.2 |
| 13.21 | 1.5 | 1.33 | 35.56 | 1.82 | 25.5 | 26.3 |
| 14.57 | 1.43 | 1.27 | 35.7 | 1.92 | 25.4 | 26.3 |
| 15.93 | 1.11 | 1.12 | 35.45 | 2.15 | 24.9 | 26 |
| 17.29 | 1.18 | 1.14 | 36.08 | 2.28 | 25.2 | 26.5 |
| 18.64 | 1.46 | 1.13 | 35.85 | 2.35 | 25 | 26.7 |
| 20 | 2.15 | 1.7 | 34.06 | 2.55 | 25.3 | 27.4 |

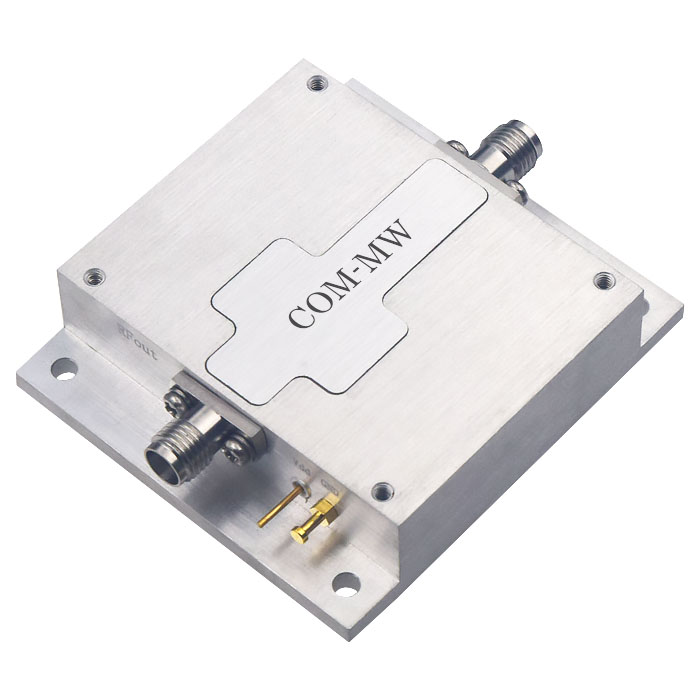

Reference picture

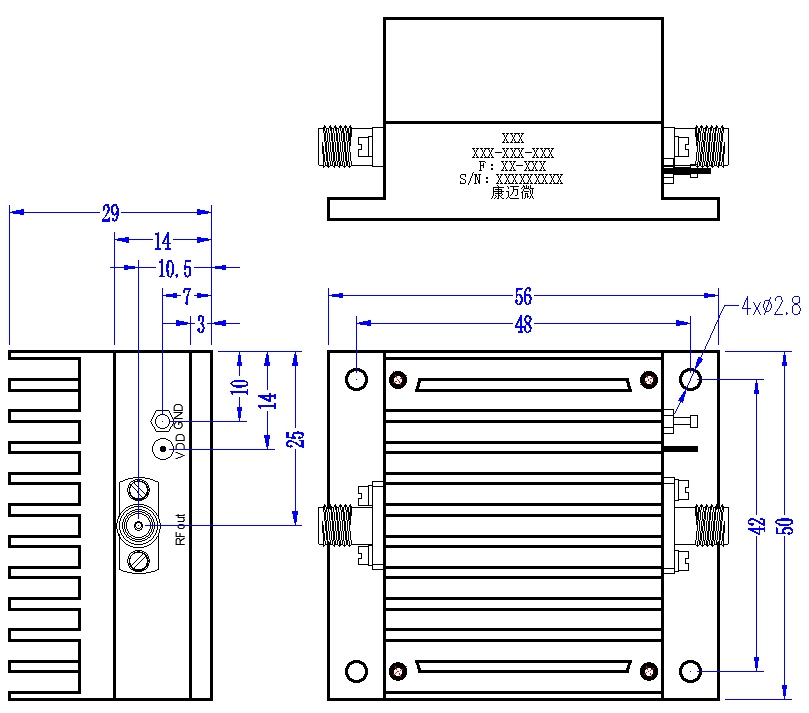

Configuration

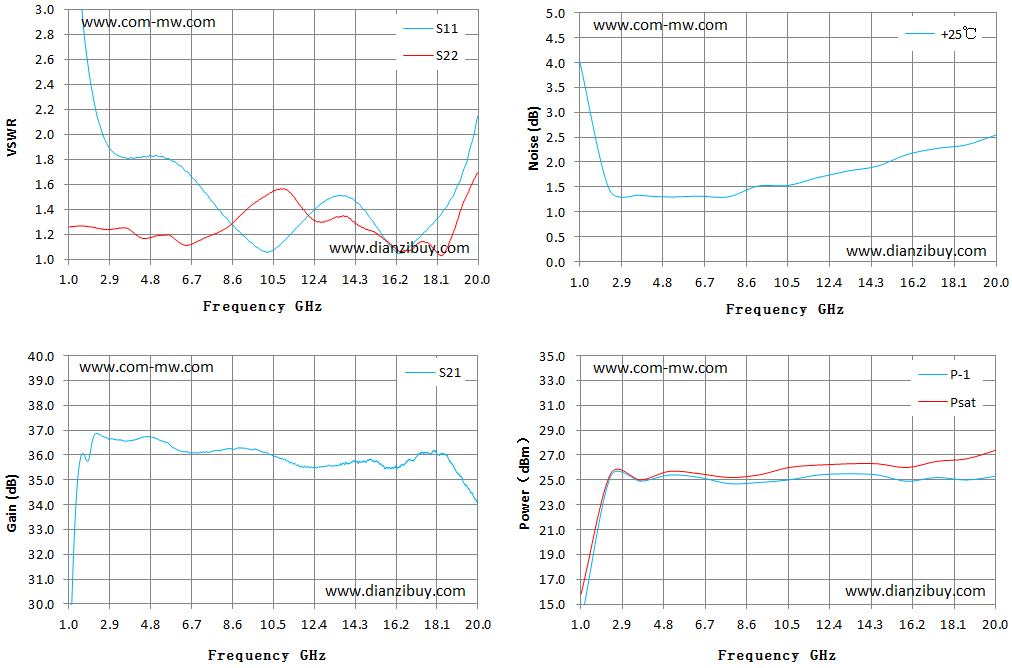

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
