LNA
0.009~3000MHz, Gain41dB, Noise figure3dB, P-1dB15dBm, SMA
- DLNA8-0.009-3000-013
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 38 | 41 | dB | |
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12~15V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 0.009 | 17.1 | / | 1.05 | 1.33 | 41.1 |
| 400 | 18.9 | 2.42 | 1.35 | 1.14 | 44.6 |
| 800 | 19.2 | 2.39 | 1.34 | 1.06 | 45.1 |
| 1200 | 18.7 | 2.48 | 1.36 | 1.31 | 45.3 |
| 1600 | 18.2 | 2.74 | 1.61 | 1.54 | 44.6 |
| 2000 | 17.7 | 2.63 | 1.75 | 1.61 | 43.8 |
| 2400 | 17.1 | 2.79 | 1.55 | 1.66 | 42.9 |
| 2800 | 16.3 | 2.82 | 1.37 | 1.74 | 42.6 |
| 3200 | 15.8 | 2.95 | 1.73 | 1.74 | 42.1 |
| 3600 | 14.9 | 2.88 | 2.25 | 1.79 | 41.8 |
| 4000 | 14 | 3.06 | 2.27 | 1.79 | 41.9 |

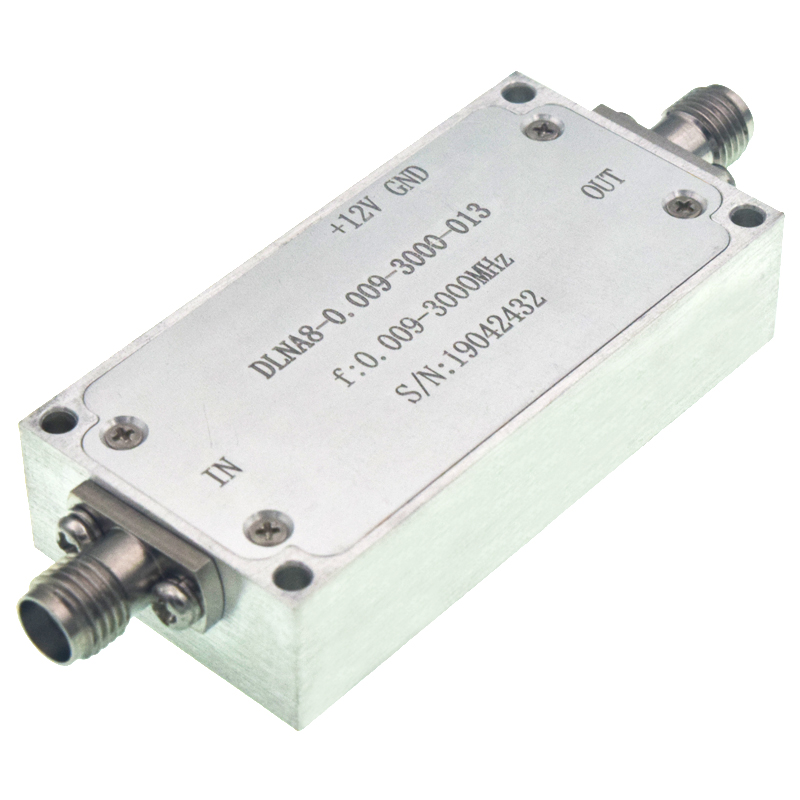

Reference picture
Configuration(mm)

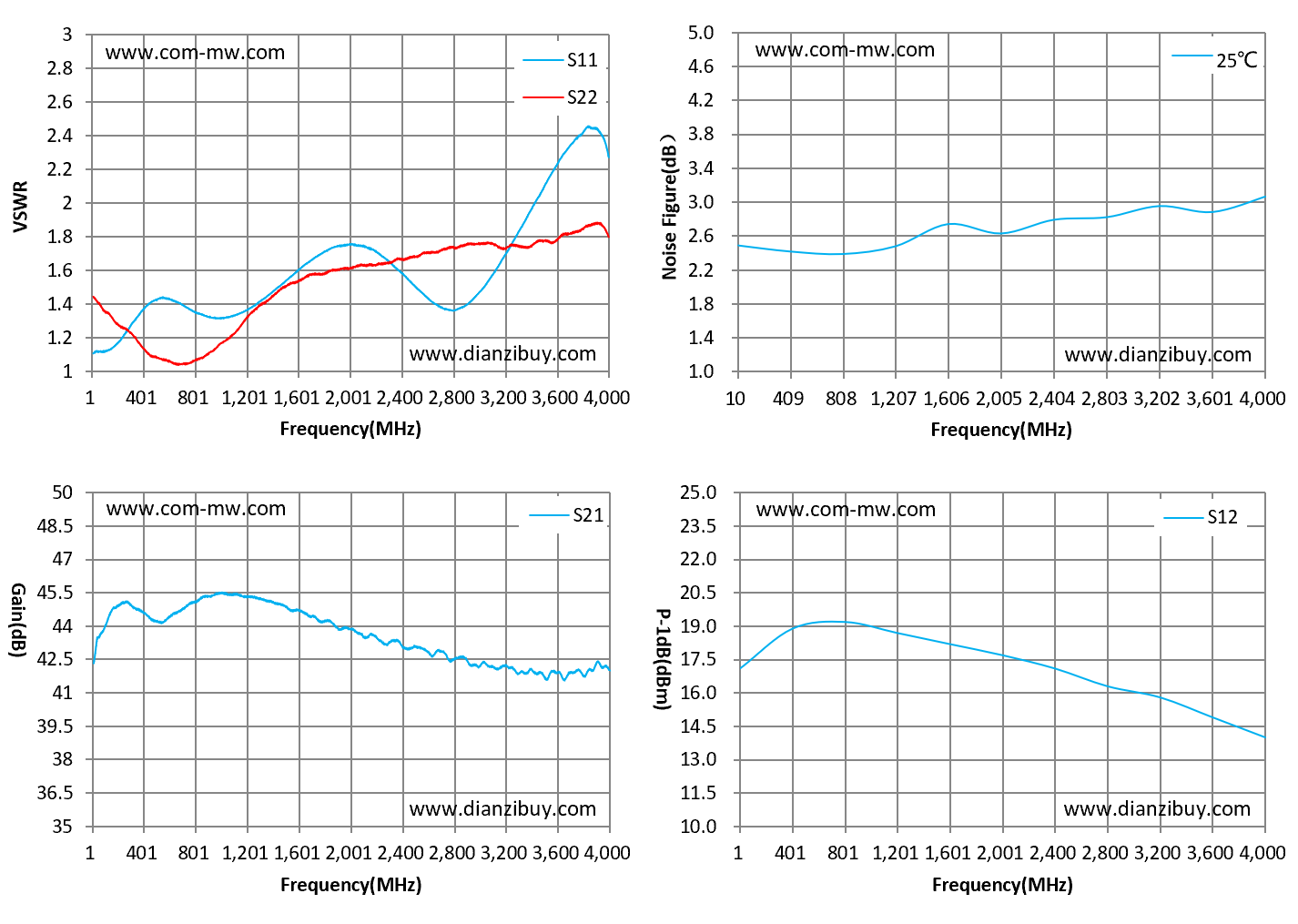

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
