Power amplifier
400~8000MHz, Gain30dB, Noise figure2.2dB, P-1dB24dBm, SMA
- DPA9-400-8000-1165
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 3 | dB | ||
| Noise figure | 2.2 | 3 | dB | |
| VSWR | 1.8 | 2.2 | ||
| P-1dB | 22 | 24 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Maximum input undamaged power: 10dBm |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 0.4 | 25.1 | 1.79 | 1.67 | 1.14 | 32 |
| 1 | 25 | 1.64 | 1.31 | 1.17 | 31.7 |
| 2 | 25.2 | 1.53 | 1.42 | 1.17 | 32.4 |
| 3 | 25.5 | 1.55 | 1.67 | 1.11 | 32.1 |
| 4 | 25.2 | 1.62 | 1.07 | 1.12 | 32.78 |
| 5 | 25.7 | 1.65 | 1.79 | 1.17 | 31.49 |
| 6 | 25.5 | 1.82 | 1.55 | 1.37 | 32.08 |
| 7 | 25.6 | 1.91 | 1.37 | 1.23 | 31.9 |
| 8 | 25.5 | 2.21 | 1.83 | 1.52 | 31.65 |
| 9 | 25.5 | 2.68 | 2.5 | 1.14 | 28.86 |
| 10 | 23.3 | 3.07 | 3.79 | 1.07 | 25.33 |
Reference picture
Configuration(mm)

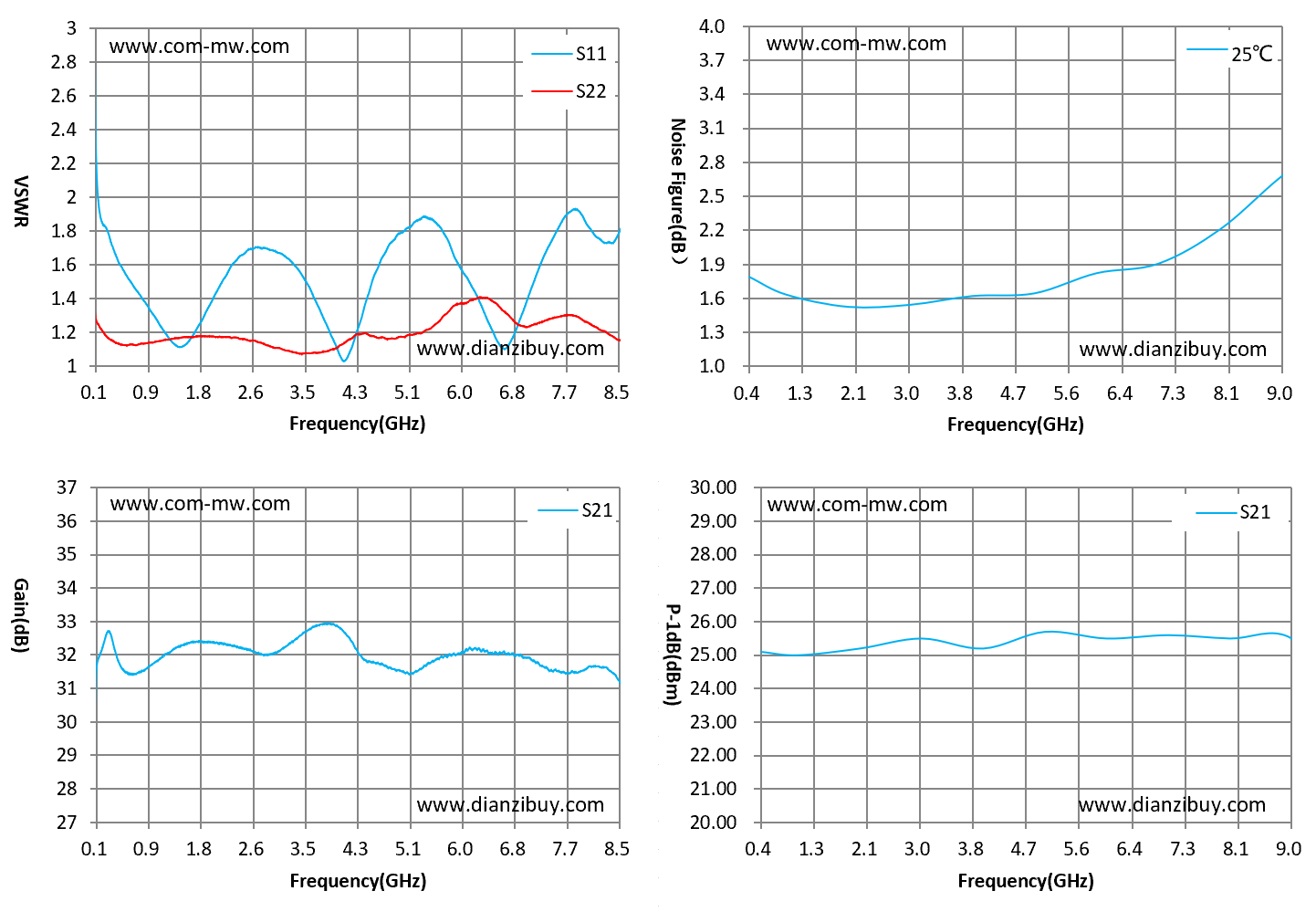

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
