LNA

950~2150MHz, Gain60dB, Noise figure3dB, P-1dB10dBm, SMA, 可调增益放大器

  • DLNA8-950-2150-16888
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency950~2150MHz
Gain60dB
Gain flatness±2dB
Noise figure3dB
VSWR2
P-1dB10dBm
Attenuation30dB

Other parameters

ConnectorSMA-F or K
Impedance50Ω
Working voltage+12V
Working current400mA
Operation Temp.-40~+60℃ Design assurance
Other可调增益放大器

J30J-9ZKP Pin Definition

No.definitionNote
1VD+12V供电
2GNDGround
3TTL00.5dB attenuation control
4TTL11dB衰减控制
5TTL22dB衰减控制
7TTL34dB attenuation control
8TTL4
9TTL516dB衰减控制

Typical test data

FrequencyS11S22GAINNOISEP-1PSAT
GHzVSWRVSWRdBdBdBmdBm
0.51.311.5748.423.9011.4013.89
0.641.381.1856.873.0814.5916.01
0.791.41.7260.922.9714.1915.36
0.931.241.7560.742.9413.9414.93
1.071.261.6360.792.9314.7716.09
1.211.391.6461.842.9515.3616.81
1.361.531.6462.742.8515.6117.12
1.501.621.6063.382.7715.5917.07
1.641.661.5563.842.6615.5817.02
1.791.681.4363.842.7115.5316.97
1.931.741.4963.582.7915.5316.99
2.071.881.6163.252.8815.3916.91
2.212.112.0163.173.0615.3816.95
2.362.522.6463.123.2215.3316.91
2.53.143.5962.993.2015.3516.91

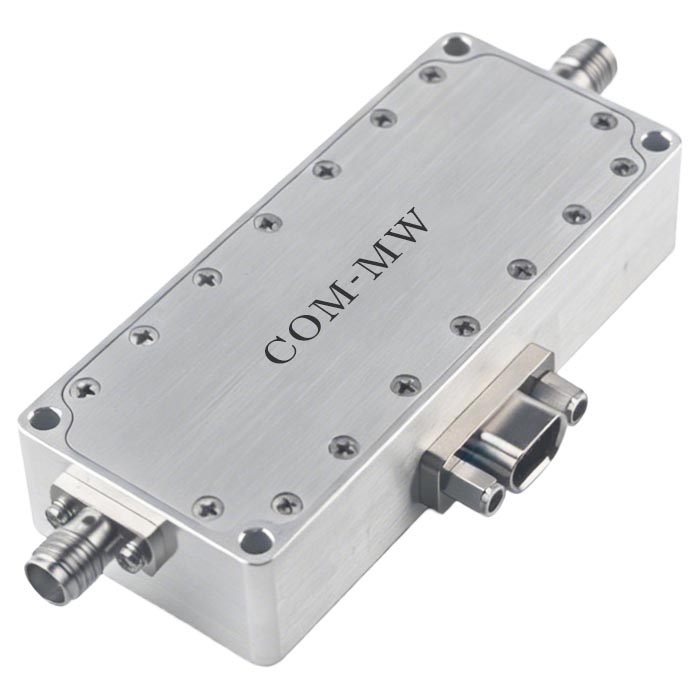

Reference picture

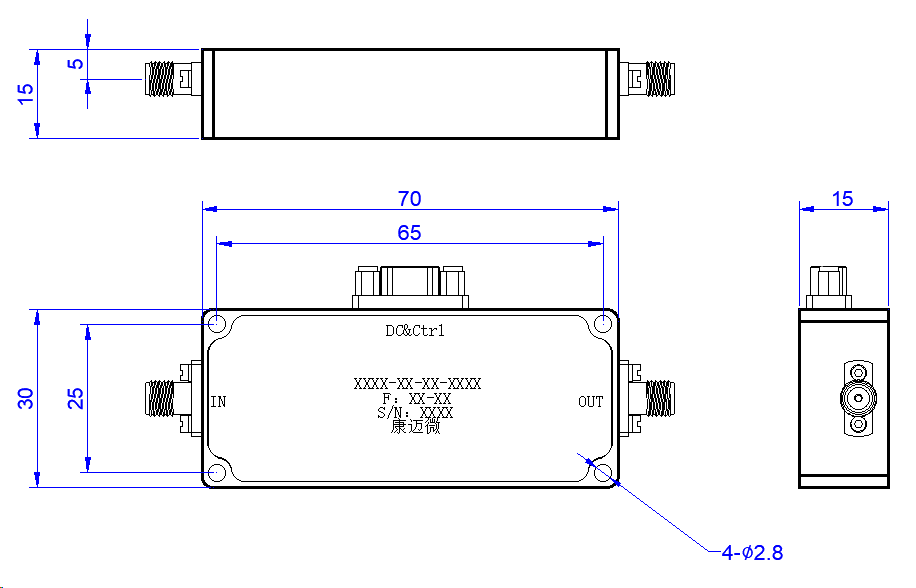

Configuration(mm)

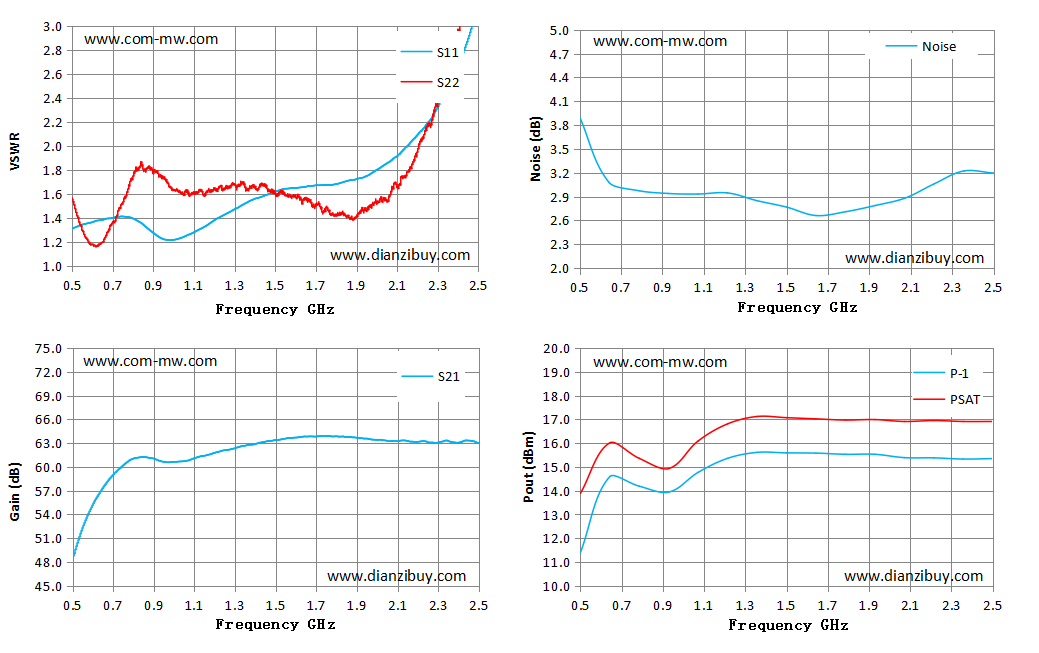

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
