LNA

Frequency30~1000MHz, Gain25, Noise figure2.5, Supports AC power supply and DC power supply

  • DLNA8-30-1000-4037
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency30~1000MHz
Gain25dB
Gain flatness±1.5dB
Noise figure2.5dB
VSWR2
P-1dBm15dBm
Max input power10dBm

Product Application

ConnectorN-K
Connector materialStainless steel
Impedance50Ω
SurfaceAnodizing treatment (blue)
Operation Temp.-20~+50℃ Design assurance
CharacteristicSupports AC power supply and DC power supply

Instructions for use

1Power supply method 1Standard AC interface, input voltage range 110-250V
2Power supply method 2DC power supply, interface DC 5.5mm (outer diameter) * 2.1mm (inner aperture) power adapter for power supply
3Instructions for using the power switchThe switch is equipped with a power on indicator, and the light will turn on when powered on. Either AC or DC power supply can be used after being turned on, and cannot be powered on at the same time.

Parts list

1Standard configuration1 AC national standard power cord√
2Optional1 power adapter×
3OptionalRF cable 1m√

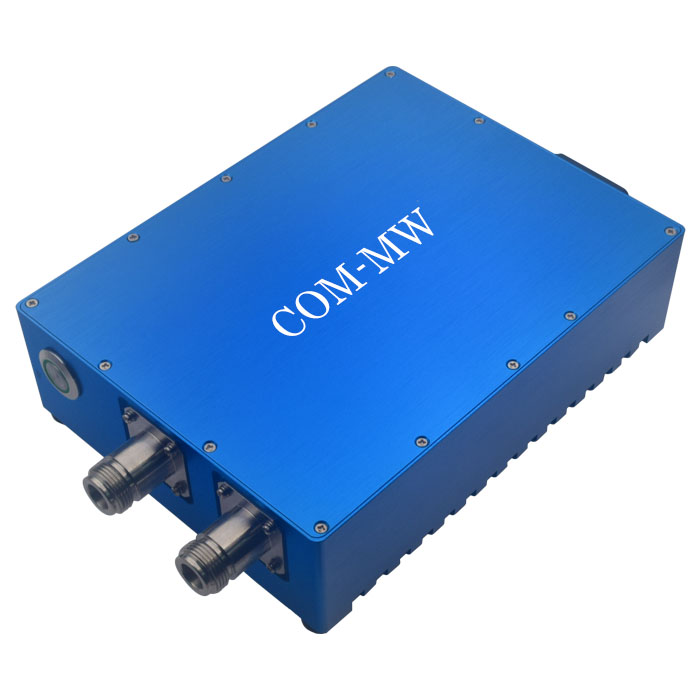

Reference picture

Configuration(mm)

Note

1Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2If the temperature is higher than 125℃, consult with us before ordering.
3When directly connecting the antenna, it is necessary to do electrostatic protection, otherwise it is easy to burn the amplifier.
