LNA
25.5~27MHz, Gain30dB, Noise figure2.5dB, P-1dB20dBm, 2.92
- DLNA8-25.5-27G-3701
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 25.5 | ~ | 27 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1 | dB | ||
| Gain stability | ±0.5 | dB@24h | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 20 | dBm | ||
| Max input power | 0 | dBm |
Other parameters
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +15V |
| Working current | 400mA |
| Operation Temp. | -40~+60℃ Design assurance |

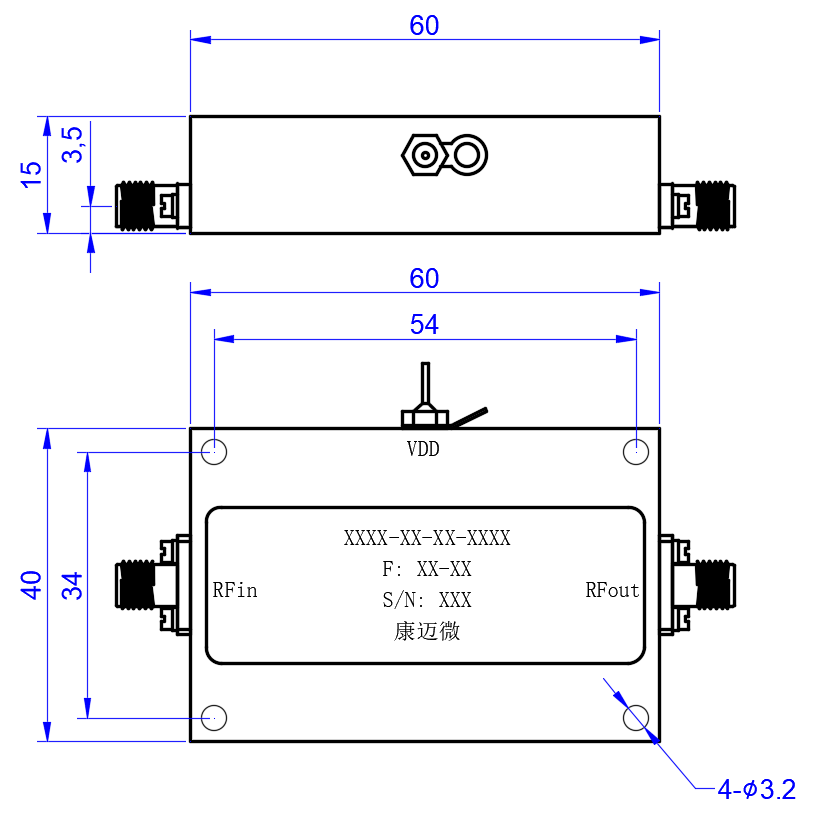

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
