LNA
1.5~26GHz, Gain40dB, Noise figure4dB, P-1dB10dBm, SMA
- DLNA8-1-26G-3526
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1.5 | ~ | 26 | GHz |
| Gain | 40 | 42 | dB | |
| Gain flatness | ±3 | dB | ||
| Noise figure | 4 | 5 | dB | |
| VSWR | 2.2 | 2.5 | ||
| P-1dB | 10 | dBm | ||
| Reverse isolation | 70 | dB |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11VSWR | S22VSWR | Gain(dB) | NF（dB) | P-1(dBm) | Psat(dBm) |
| 0.5 | 3.34 | 10.34 | 17.63 | 9.08 | 10.8 | 14.3 |
| 2.36 | 2 | 1.62 | 44.53 | 3.83 | 16.12 | 19.3 |
| 4.21 | 2.32 | 1.23 | 44.25 | 3.35 | 15.11 | 20.37 |
| 6.07 | 1.88 | 1.31 | 44.11 | 3.02 | 15.2 | 20.5 |
| 7.93 | 1.28 | 1.66 | 43.21 | 3.06 | 15.4 | 21 |
| 9.79 | 1.58 | 1.76 | 42.68 | 3.19 | 15.32 | 20.6 |
| 11.64 | 1.67 | 1.56 | 43.49 | 2.72 | 15.7 | 20.3 |
| 13.5 | 1.26 | 1.59 | 45.22 | 2.48 | 15.23 | 19.2 |
| 15.36 | 1.38 | 1.6 | 44.72 | 2.56 | 14.9 | 19 |
| 17.21 | 1.69 | 1.75 | 45.2 | 3.04 | 14.5 | 18.9 |
| 19.07 | 1.47 | 1.55 | 45.72 | 3.14 | 14.2 | 18.4 |
| 20.93 | 1.79 | 1.14 | 46.49 | 3 | 13.9 | 19.6 |
| 22.79 | 1.67 | 1.55 | 46.2 | 3.23 | 12.8 | 19.2 |
| 24.64 | 1.15 | 1.35 | 44.35 | 3.56 | 12.2 | 19 |
| 26.5 | 1.77 | 1.24 | 41.83 | 4.09 | 10.6 | 18.4 |
Reference picture
Configuration(mm)

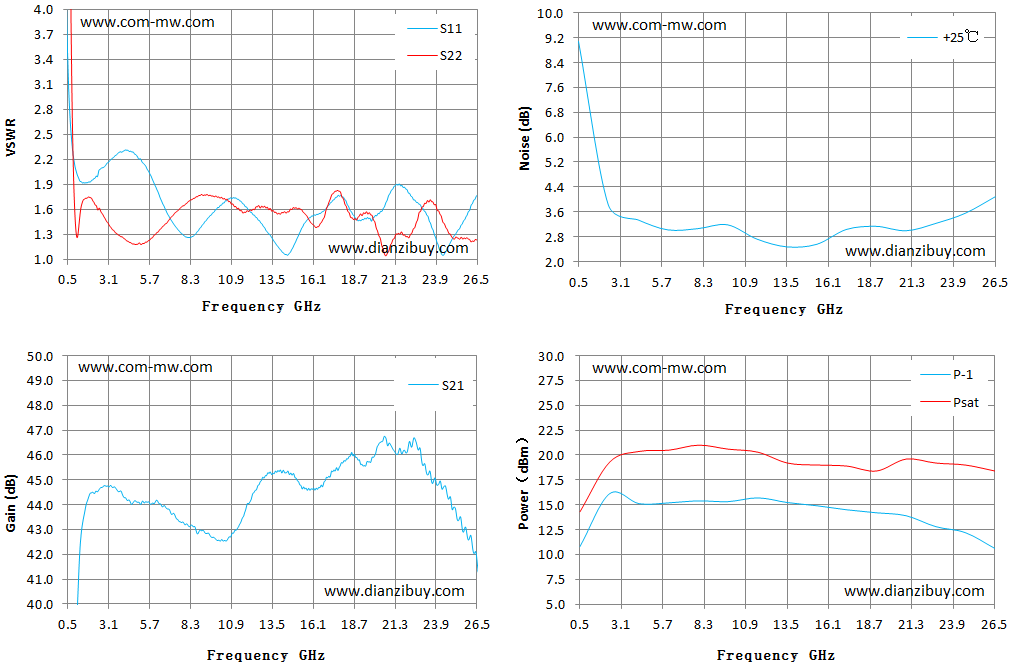

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
