LNA
18~40GHz, Gain50dB, Noise figure4dB, P-1dB10dBm, 2.92
- DLNA7-18-40G-758
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | 5 | dB | ||
| Noise figure | 3.5 | 4 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 17 | 15.1 | 3.27 | 1.32 | 2.25 | 53.51 |
| 20 | 14.6 | 3.2 | 1.75 | 1.48 | 54.17 |
| 23 | 15.1 | 3.13 | 1.85 | 1.68 | 52.64 |
| 26 | 15 | 3.15 | 2.29 | 1.54 | 51.58 |
| 29 | 15.2 | 3.34 | 1.64 | 1.41 | 51.14 |
| 32 | 14.5 | 3.51 | 1.54 | 1.95 | 53.36 |
| 35 | 14.7 | 3.31 | 1.26 | 1.51 | 52.58 |
| 38 | 15.4 | 3.23 | 1.61 | 1.57 | 53.37 |
| 40 | 15.8 | 2.98 | 2.02 | 1.82 | 53.84 |
| 42 | 12.6 | 3.27 | 1.5 | 1.69 | 54.34 |
| 43.5 | 9.9 | 3.88 | 2.18 | 2.09 | 48.97 |
Reference picture
Configuration(mm)

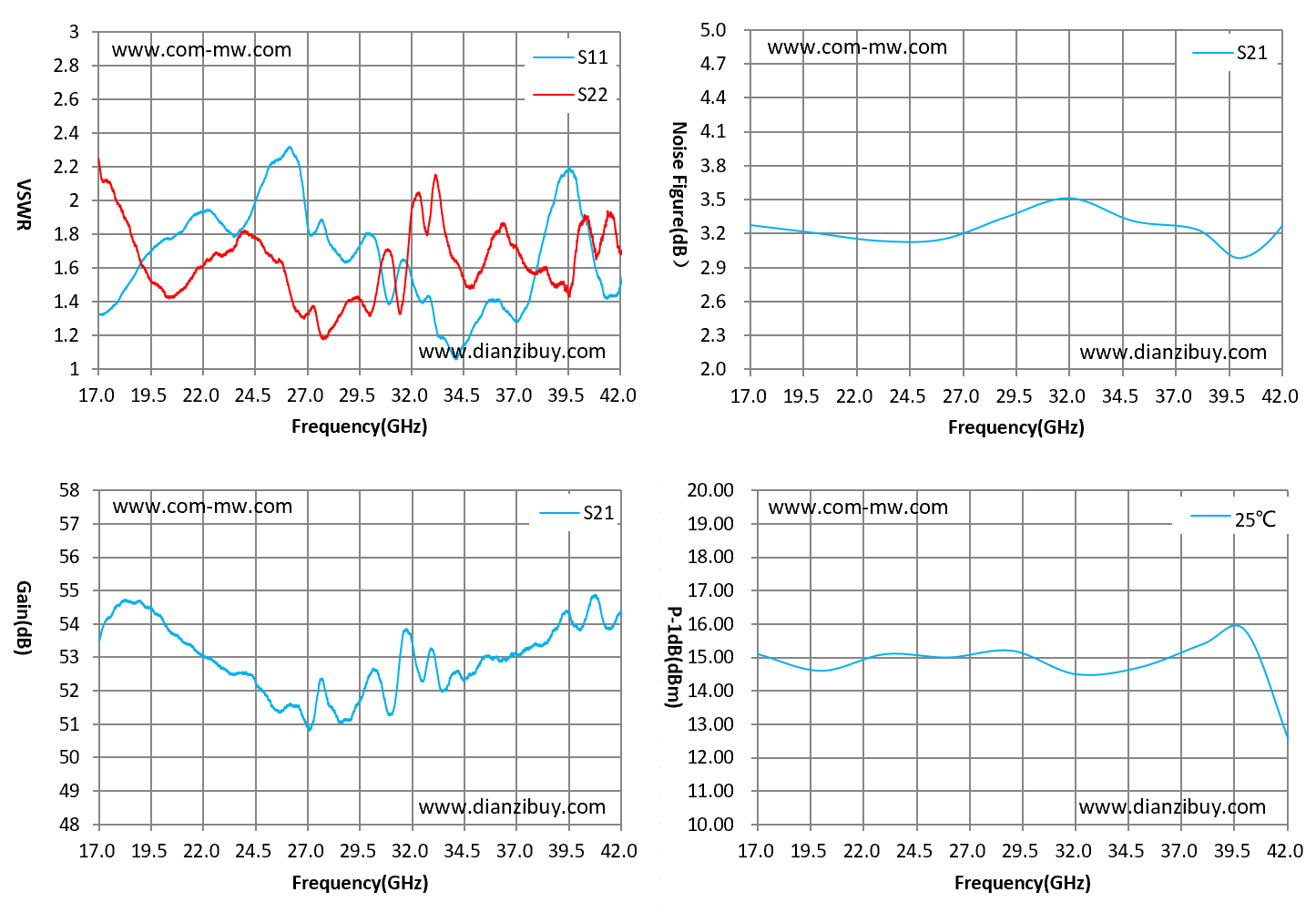

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
