LNA
2~6GHz, Gain37dB, Noise figure0.9dB, P-1dB12dBm, SMA
- DLNA8-2-6G-859
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 6 | GHz |
| Gain | 37 | 40 | dB | |
| Gain flatness | ±1 | ±1.25 | dB | |
| Noise figure | 0.9 | 1.1 | dB | |
| VSWR | 1.5 | 2 | ||
| P-1dB | 12 | 14 | dBm | |
| Max input power | 10 | dBm | ||
| Spur reduction | 60 | dBc |
Other parameters
| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 200mA |
| Reverse isolation | 55dB, TYP: 60dB |
| Operation Temp. | -40~+75℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | Gain | Noise | P-1dB OUT dBm |
| 1 | 1.61 | 3.31 | 36.21 | 1.76 | 14.62 |
| 1.43 | 1.61 | 1.55 | 43.19 | 1.14 | 16.4 |
| 1.86 | 1.54 | 1.61 | 44.36 | 0.79 | 15.8 |
| 2.29 | 1.64 | 1.79 | 43.52 | 0.53 | 15.9 |
| 2.71 | 1.65 | 1.57 | 42.93 | 0.66 | 16 |
| 3.14 | 1.72 | 1.73 | 43.28 | 0.72 | 16.4 |
| 3.57 | 1.74 | 1.74 | 43.62 | 0.53 | 15.9 |
| 4 | 1.64 | 1.33 | 44.14 | 0.5 | 15.2 |
| 4.43 | 1.57 | 1.02 | 44.24 | 0.69 | 14.6 |
| 4.86 | 1.52 | 1.23 | 43.98 | 0.9 | 14.8 |
| 5.29 | 1.49 | 1.57 | 43.59 | 0.76 | 14.8 |
| 5.71 | 1.5 | 1.59 | 43.21 | 0.73 | 14.4 |
| 6.14 | 1.49 | 1.19 | 43.01 | 0.8 | 14 |
| 6.57 | 1.53 | 1.24 | 42.43 | 0.93 | 13.3 |
| 7 | 1.52 | 1.42 | 42.17 | 0.96 | 13 |
Reference picture
Configuration(mm)

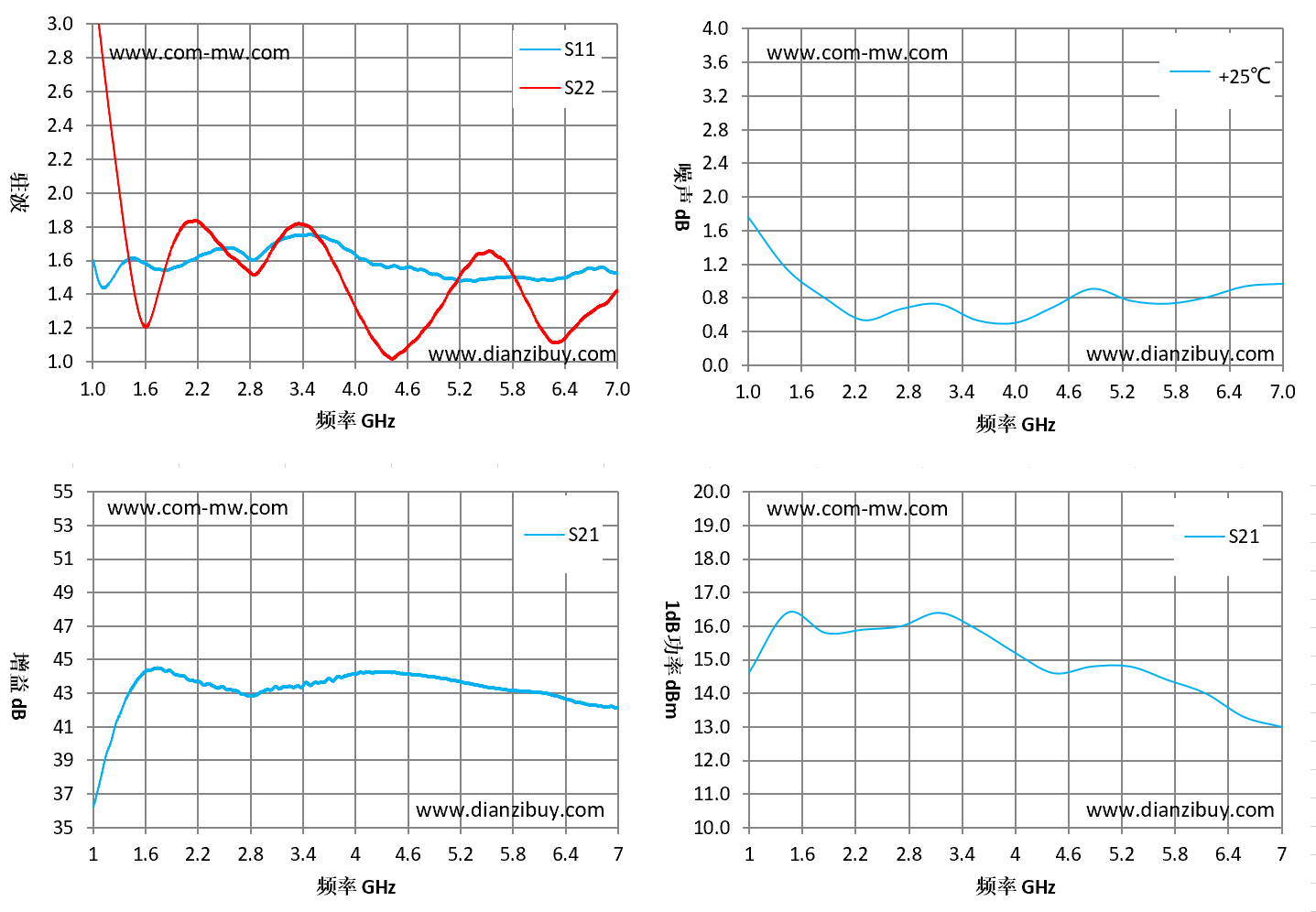

Typical test curve
Note
, When designing, consider the issue of amplifier heat dissipation.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
