LNA
18~40GHz, Gain40dB, Noise figure5.5dB, P-1dB14dBm, 2.4-K
- DLNA8-18-40G-3614
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 5.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 14 | dBm |
Other parameters
| Connector | 2.4-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -30~+70℃ Design assurance |
Instructions for use
| 1 | Power supply method 1 | 110-220V power input, standard AC interface. |
| 2 | Power supply method 2 | DC power supply, interface DC5.5mm (outer diameter) * 2.5mm (inner diameter) 110-220V power adapter power supply. |
| 3 | Operation Temp. | -20~+60℃ Design assurance |
| 4 | Surface color | Anodizing treatment (blue) |
| 5 | Shell Material | Shell aluminum material |
| 6 | DC output | The DC power supply voltage is determined by the input voltage of the internal module. |
| 7 | Instructions for using the power switch | Switch with power on indicator, AC and DC power supply can be selected, plug and play, and not both power sources can be used at the same time. |
Parts list
| No. | Name | quantity |
| 2 | Amplifier | 1 |
| 3 | AC Adapter | 1 |
Reference picture

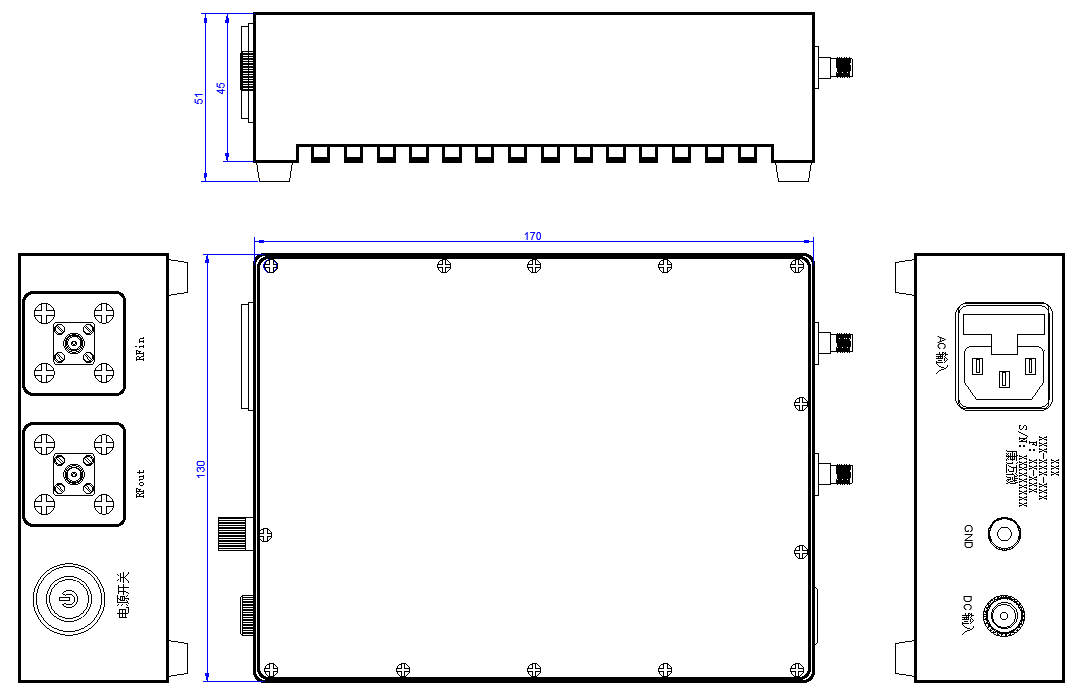

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
