LNA
- DLNA8-1.2-1.4G-1950
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1.2 | ~ | 1.4 | MHz |
| Gain | 28 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 0.6 | dB | ||
| VSWR | 2 | |||
| P-1dB input power | -16 | dBm |
Other parameters
| Connector | SMA-K |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |

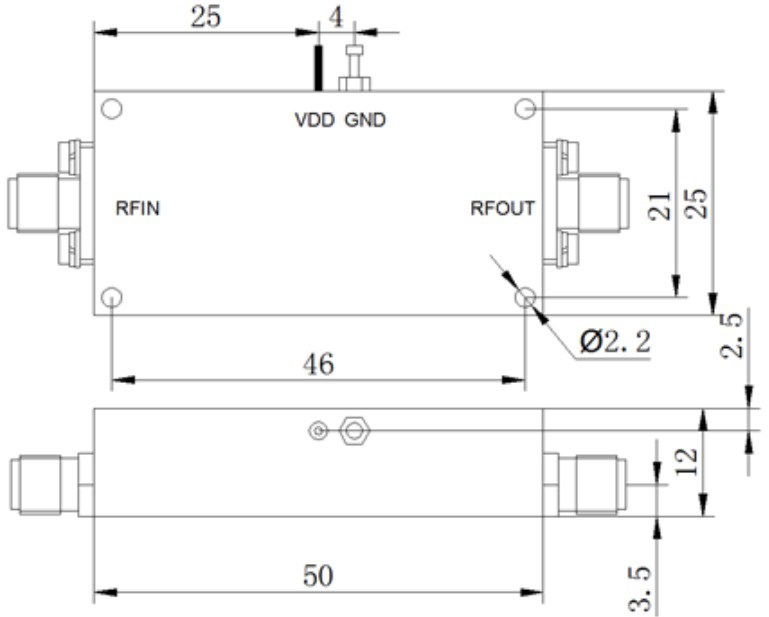

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
