LNA
0.1~40GHz, Gain36dB, Noise figure5dB, P-1dB20dBm, 2.92-F
- DLNA8-0.1-40G-3837
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.1 | ~ | 40 | GHz |
| Gain | 36 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 2 | 2.5 | ||
| P-1dB | 20 | dBm | ||
| Spur reduction | 55 | dBc |
Other parameters
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | Gain | P-1 | Psat | Noise |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.01 | 2.39 | 4.3 | 39.99 | 9.84 | 12.15 | 10.66 |
| 0.05 | 2.62 | 3.67 | 40.04 | 17.27 | 20.05 | 6.12 |
| 0.1 | 1.25 | 1..13 | 40.35 | 18.02 | 20.79 | 4.85 |
| 0.5 | 1.25 | 1.13 | 40.35 | 19.2 | 21.83 | 3.71 |
| 1 | 1.13 | 1.19 | 41.12 | 20.23 | 22.37 | 4.12 |
| 4 | 1.73 | 1.21 | 38.6 | 21.28 | 23.13 | 3.71 |
| 8 | 1.22 | 1.92 | 37.94 | 21.67 | 23.29 | 2.72 |
| 12 | 1.63 | 1.33 | 37.78 | 21.13 | 22.89 | 2.4 |
| 16 | 1.45 | 2 | 37.08 | 19.17 | 21 | 3.03 |
| 20 | 1.61 | 1.06 | 38.09 | 22.01 | 23.15 | 3.4 |
| 24 | 1.91 | 1.79 | 37.59 | 22.46 | 23.53 | 3.81 |
| 28 | 1.2 | 1.19 | 39.08 | 22.9 | 23.65 | 4.06 |
| 32 | 1.31 | 1.41 | 38.99 | 21.27 | 22.69 | 4.33 |
| 36 | 1.27 | 1.9 | 40.27 | 19.45 | 21.24 | 4.9 |
| 40 | 1.71 | 1.66 | 35.23 | 17.12 | 20.19 | 5.32 |
| 42 | 2.16 | 1.33 | 33.95 | 14.92 | 17.3 | 6.67 |

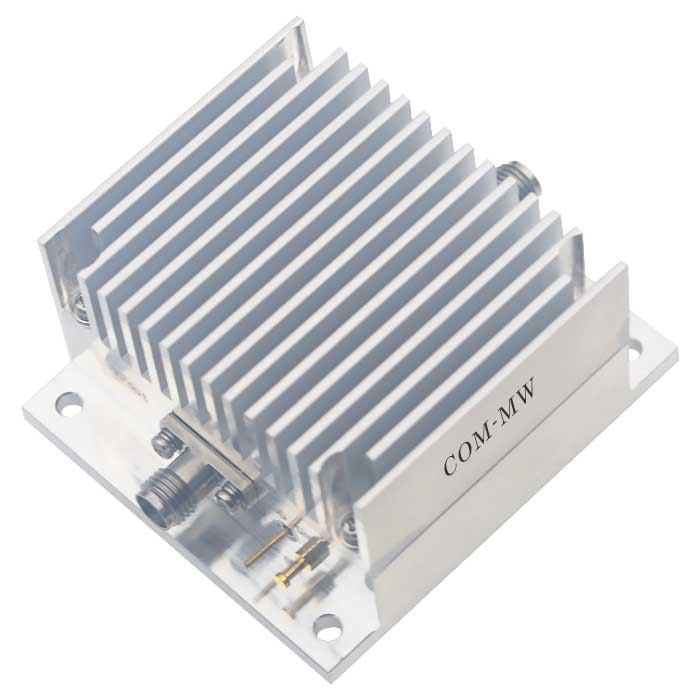

Reference picture

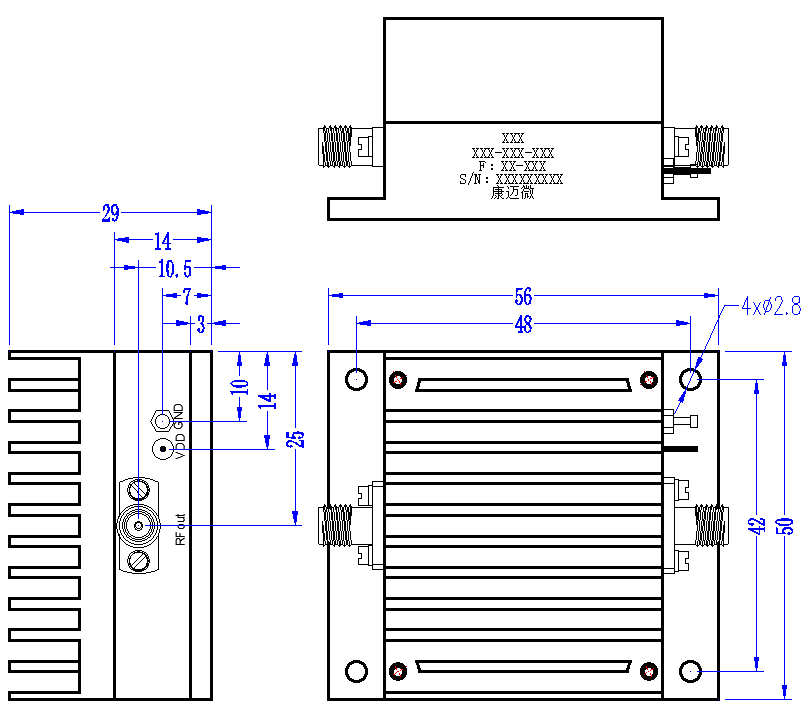

Configuration

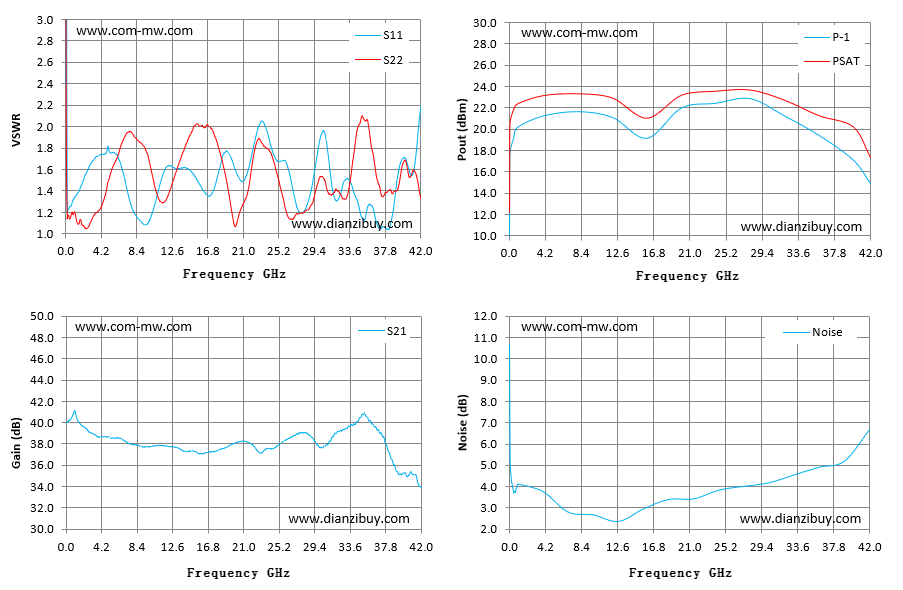

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
