LNA
35~50GHz, Gain50dB, Noise figure4dB, P-1dB12dBm, 2.4-K
- DLNA8-35-50-2484
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details

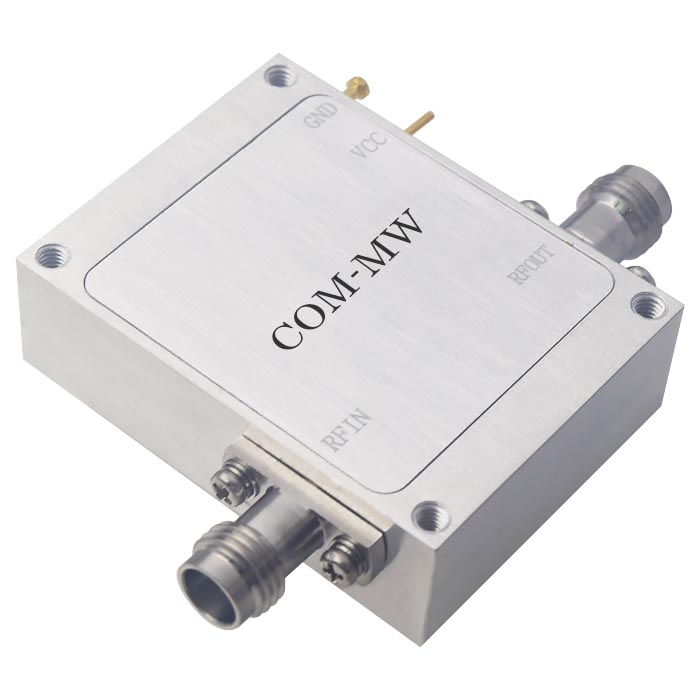

Product features
High gain, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 35 | ~ | 50 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2 | ±3 | dB | |
| Noise figure | 4 | 5 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 12 | dBm |
Other parameters
| Connector | 2.4-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 500mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | Supports coaxial interface power supply |
Typical test data
| Frequency (G) | VSWR | Gain (dB) | Noise | P-1dB |
| 33 | 2.85 | 46.93 | 4.44 | 13.1 |
| 34.21 | 2.49 | 50.22 | 4.72 | 12.8 |
| 35.43 | 1.96 | 52.43 | 4.21 | 11.7 |
| 36.64 | 1.68 | 53.14 | 4.04 | 12.2 |
| 37.86 | 1.32 | 53.82 | 4.06 | 12.5 |
| 39.07 | 1.24 | 54.4 | 3.6 | 13.2 |
| 40.29 | 1.54 | 53.75 | 3.28 | 14.1 |
| 41.5 | 1.86 | 53.67 | 3.38 | 14.2 |
| 42.71 | 1.77 | 53.21 | 3.2 | 14.5 |
| 43.93 | 1.97 | 52.89 | 3.21 | 13.6 |
| 45.14 | 1.8 | 53.02 | 3.44 | 13 |
| 46.36 | 1.55 | 52.53 | 2.99 | 13.4 |
| 47.57 | 1.35 | 52.91 | 2.9 | 13.6 |
| 48.79 | 1.15 | 52.93 | 3.28 | 16.2 |
| 50 | 1.26 | 51.99 | 3.87 | 16.7 |
Reference picture
Configuration(mm)

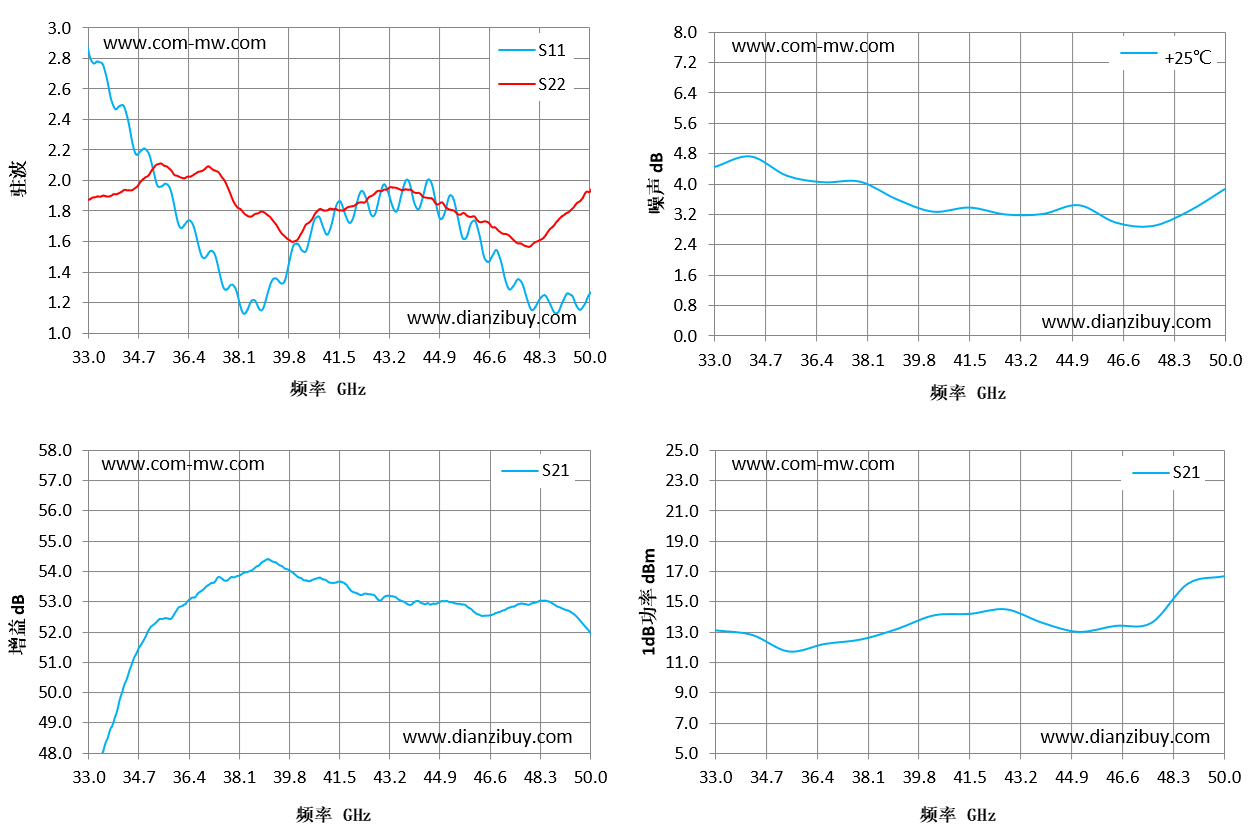

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
