Power amplifier
100~2000MHz, Gain40dB, Psat40dBm, SMA
- DPA8-100-2000-2843
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 2000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| Psat | 40 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 7 | 10 | dBc |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 1500mA |
| Operation Temp. | -40~+65℃ Design assurance |
J30J-9ZKP Pin Definition
| No. | definition | Note |
| 1 | TTL level, enable | Low level PA off, high level PA on |
| 2 | +28V | |
| 3 | +28V | |
| 4 | +28V | |
| 5 | +28V | |
| 6 | GND | |
| 7 | GND | |
| 8 | GND | |
| 9 | GND |
Typical test data
| Frequency(MHz) | S11 VSWR | S21 gain | S21 Psat dBm | S21 P-1 dBm | Harmonic Rejection |
| 100 | 1.56 | 42.75 | 41.1 | 39.1 | 12.5 |
| 236 | 1.52 | 41.08 | 40.8 | 39.2 | 15 |
| 371 | 1.56 | 41.89 | 40.6 | 39.9 | 15.2 |
| 507 | 1.4 | 42.35 | 41.4 | 40.6 | 11 |
| 643 | 1.12 | 43.73 | 41.7 | 40.3 | 10.9 |
| 779 | 1.08 | 42.89 | 42.5 | 40 | 10.5 |
| 914 | 1.22 | 42.53 | 41.6 | 39.1 | 10.3 |
| 1050 | 1.21 | 42.85 | 41.9 | 39.2 | 10.1 |
| 1186 | 1.26 | 43.13 | 42.3 | 39.4 | 9.8 |
| 1321 | 1.35 | 43.2 | 42.5 | 39.4 | 7.8 |
| 1457 | 1.62 | 44.11 | 42.7 | 39.8 | 10 |
| 1593 | 1.52 | 43.65 | 42.7 | 39.8 | 12.7 |
| 1729 | 1.41 | 42.23 | 42.1 | 41 | 14.8 |
| 1864 | 1.46 | 43.63 | 42.2 | 40.8 | 25.4 |
| 2000 | 1.65 | 41.44 | 42.1 | 40.2 | 27 |

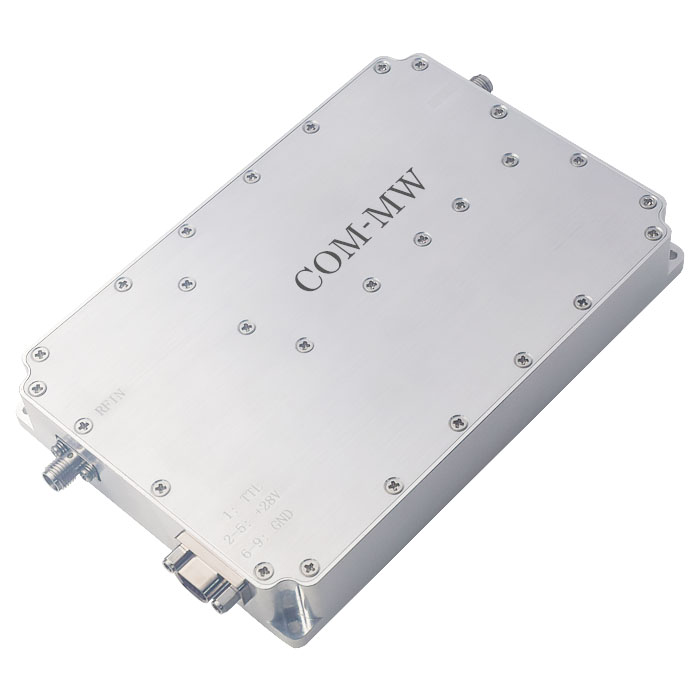

Reference picture

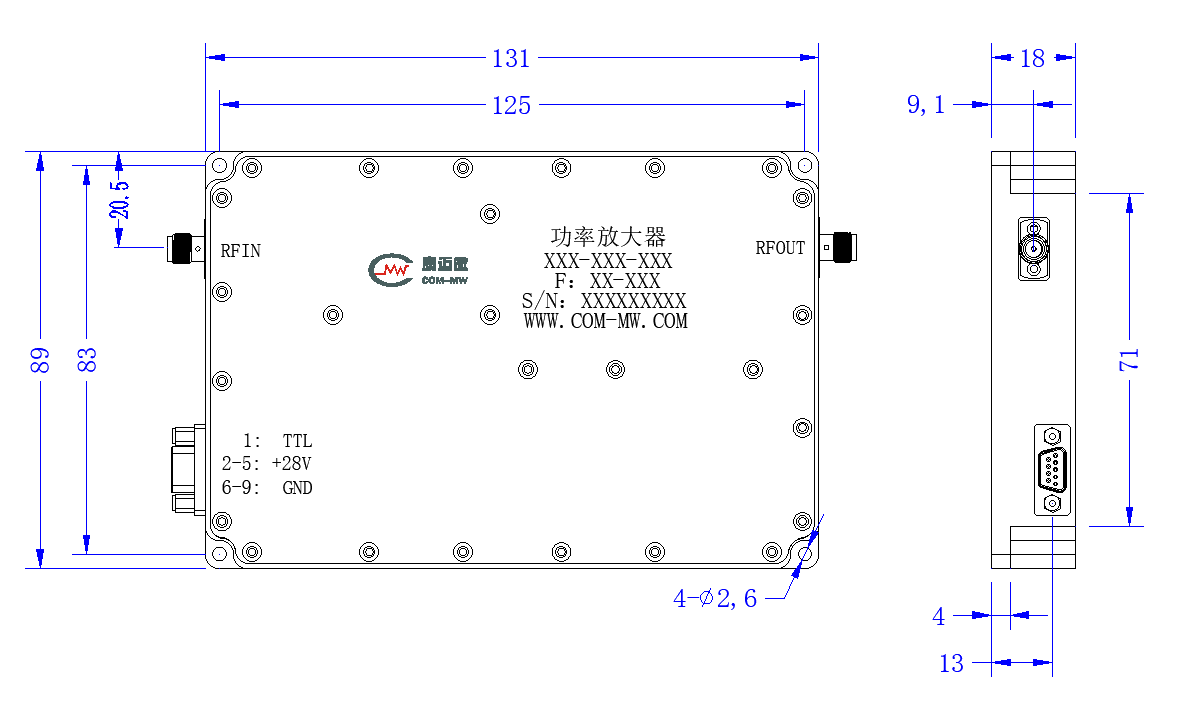

Configuration

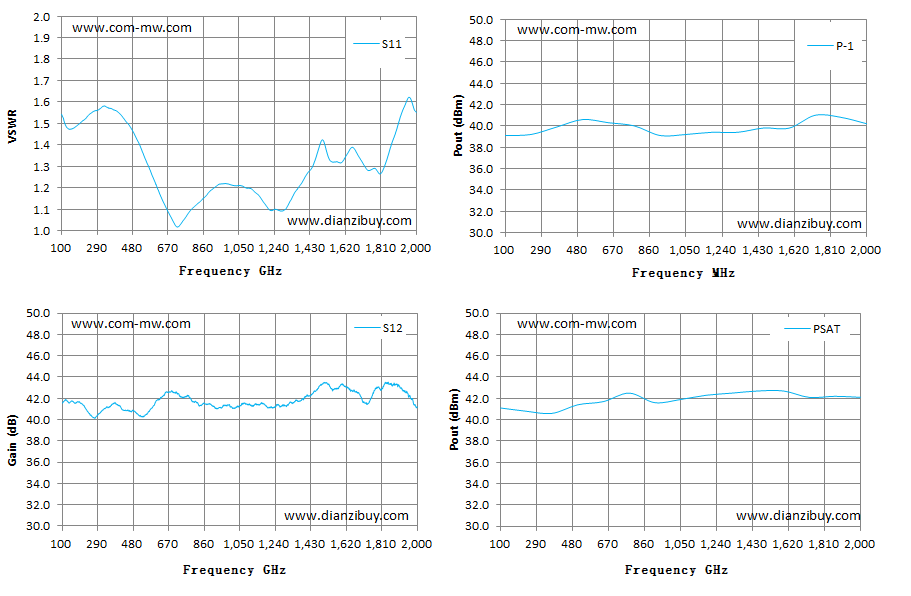

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
