LNA

50~3500MHz, Gain28dB, Noise figure0.8dB, P-1dB15dBm, SMA

  • DLNA8-10-3500-3903
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency50~3500MHz
Gain28dB
Noise figure0.81.3dB
Input VSWR2.0
Output VSWR1.5
P-1dB15dBm
Max input power20dBm

Other parameters

ConnectorSMA-F
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current100mA
Operation Temp.-40~+70℃ Design assurance
Quality GradeIndustrial grade

Typical test data

Frequency MHzS11 VSWRS22 VSWRGain dBNF dBP-1 dBmPsat dBm
1010.5416.65.18.712.5
5021.729.61.218.119.3
2951.71.330.20.618.619.9
5801.61.330.60.418.519.9
8651.61.330.80.518.520
11501.51.430.90.718.620.2
14351.41.4310.918.520.2
17201.31.4310.718.420.3
20051.21.3310.718.420.4
22901.11.330.90.917.820.3
25751.11.330.80.917.120.3
28601.11.130.60.817.419.9
31451.11.130.70.817.719.6
34301.31.130.70.717.519.5
37151.51.129.80.917.919.9
40001.71.228.20.918.520.1

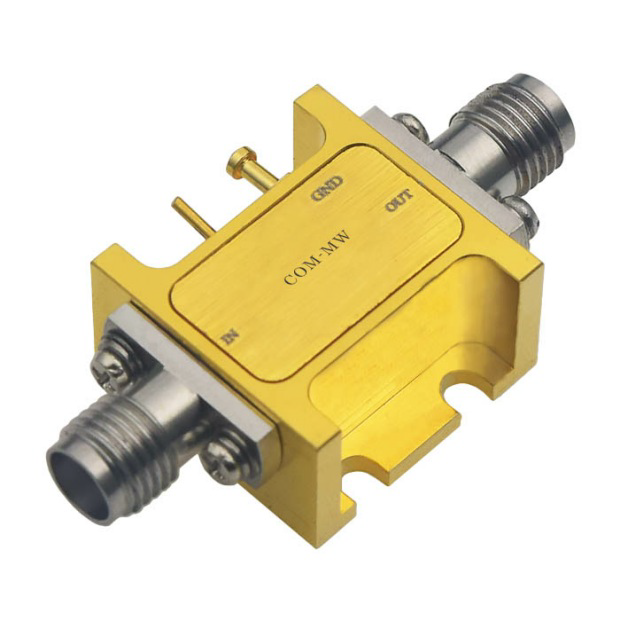

Reference picture

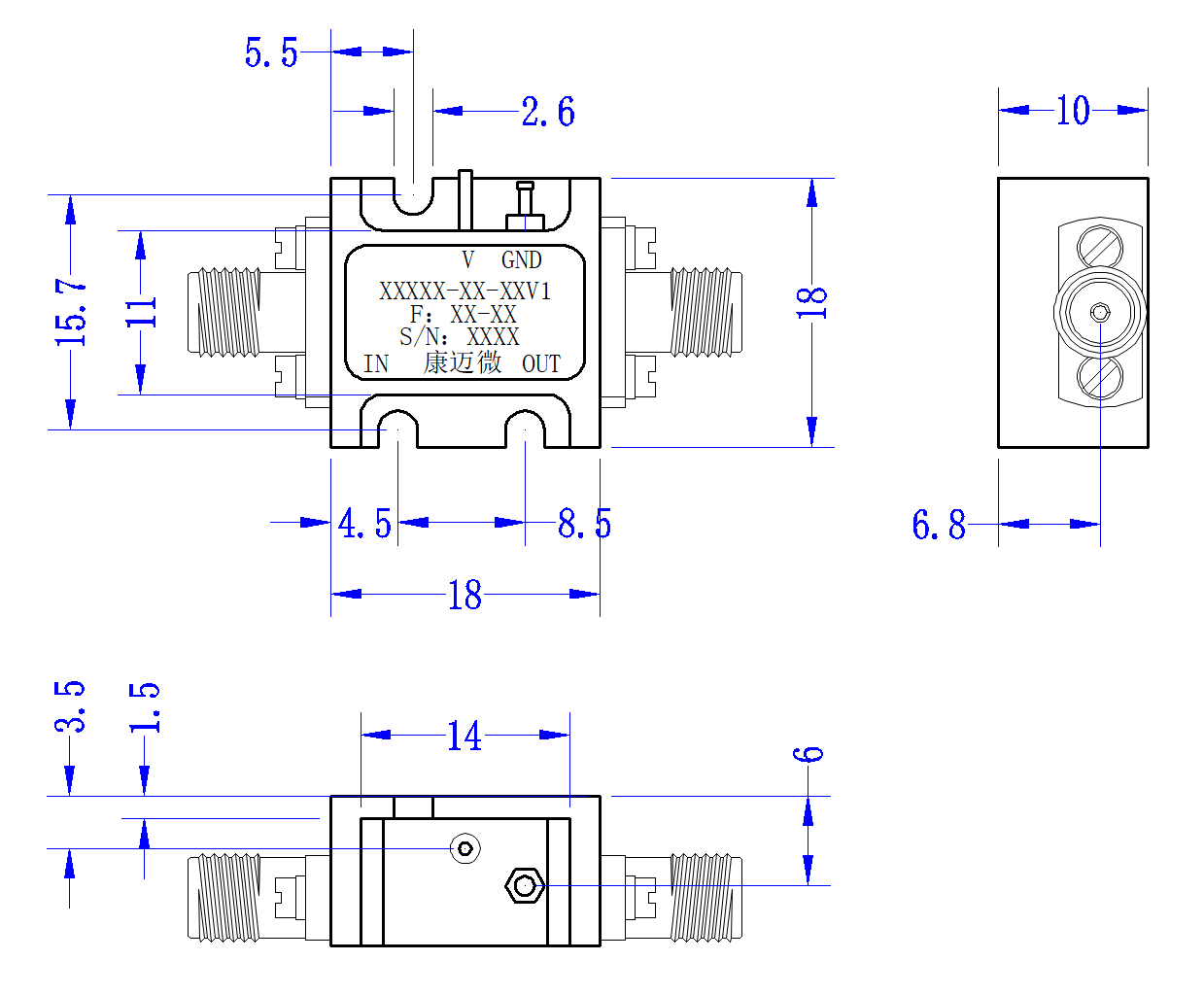

Configuration(mm)

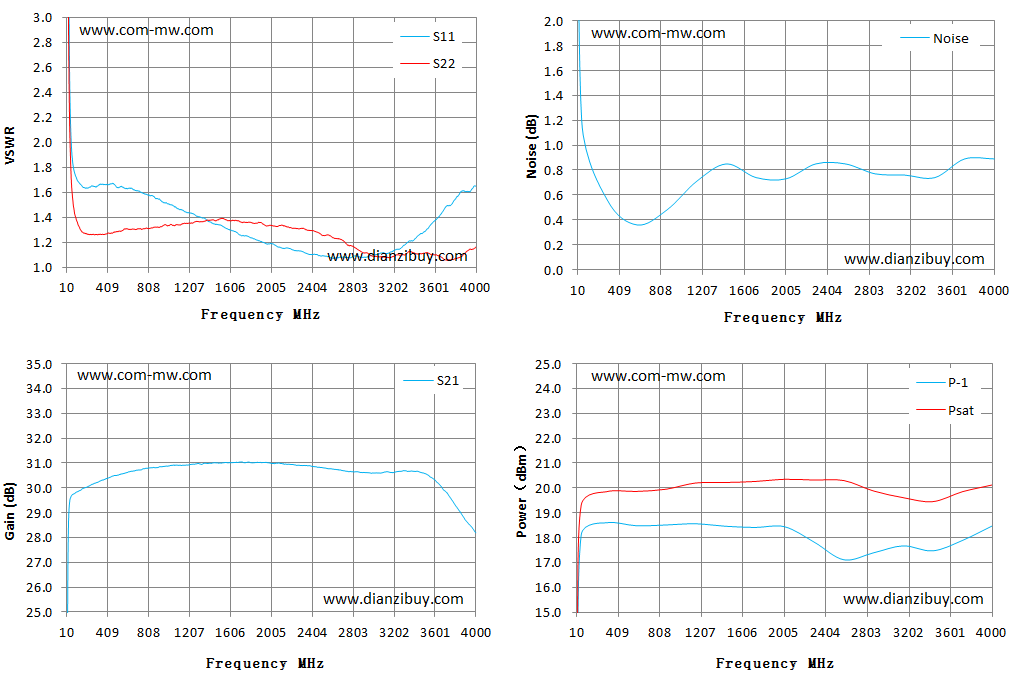

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.
