Coupler
26.3~40GHz, Coupling10dB, BJ320, 100W
- ZDC8-10W26.3-40G-2324
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 26.3 | ~ | 40 | GHz |
| IL | 0.4 | dB | ||
| Coupling | 8.5 | 10 | 11.5 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.1 | |||
| Coupled line VSWR | 1.4 |
Other parameters
| Coupling port | 2.92-K |
| Waveguide port | BJ320 |
| Surface | silver-plate |
| Power Capacity | 100W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| Other | 27.5G-30G coupling flatness ± 0.4dB, insertion loss excluding distribution loss 0.46dB |
Port Definition
| Input port | IN | (FBM320） |
| Output port | OUT | (FBP320) |
| Coupling port | -10dB | （2.92mm-K） |
Typical test data
| Frequency(GHz) | S11 VSWR | S33 VSWR | S12 IL dB | S23 Coupling | S13 Directivity |
| 26.2 | 1.03 | 1.09 | -0.6 | -9.89 | -23.29 |
| 27.19 | 1.02 | 1.11 | -0.53 | -10.17 | -37.43 |
| 28.17 | 1.06 | 1.05 | -0.53 | -10.42 | -36.95 |
| 29.16 | 1.04 | 1.15 | -0.55 | -10.62 | -38.25 |
| 30.14 | 1.07 | 1.16 | -0.53 | -10.73 | -43.56 |
| 31.13 | 1 | 1.12 | -0.54 | -10.78 | -36.12 |
| 32.11 | 1.07 | 1.17 | -0.53 | -10.82 | -32.61 |
| 33.1 | 1.03 | 1.19 | -0.51 | -10.8 | -33.24 |
| 34.09 | 1.05 | 1.09 | -0.58 | -10.68 | -28.11 |
| 35.07 | 1.05 | 1.04 | -0.42 | -10.5 | -27.29 |
| 36.06 | 1.06 | 1.12 | -0.52 | -10.49 | -23.29 |
| 37.04 | 1.06 | 1.14 | -0.55 | -10.38 | -23.6 |
| 38.03 | 1.04 | 1.12 | -0.64 | -10.2 | -25.71 |
| 39.01 | 1.03 | 1.2 | -0.5 | -9.85 | -24.01 |
| 40 | 1.03 | 1.28 | -0.62 | -9.84 | -24.71 |

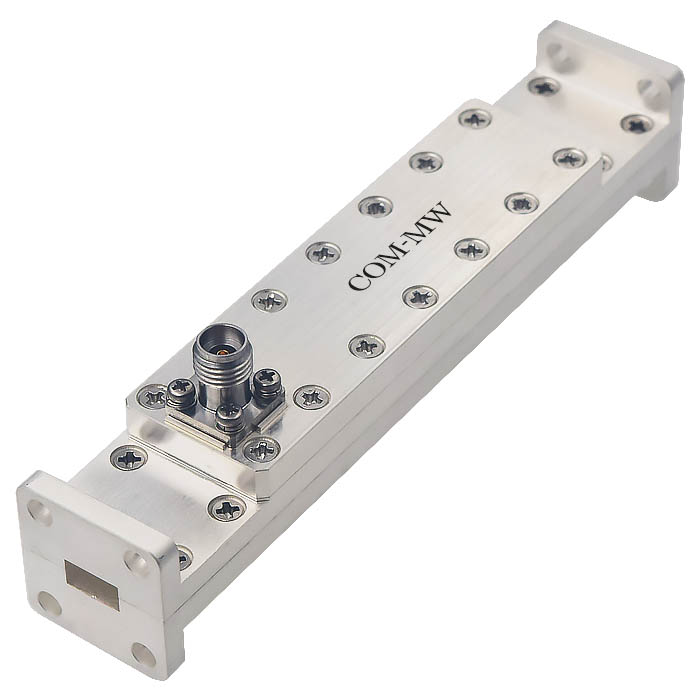

Reference picture

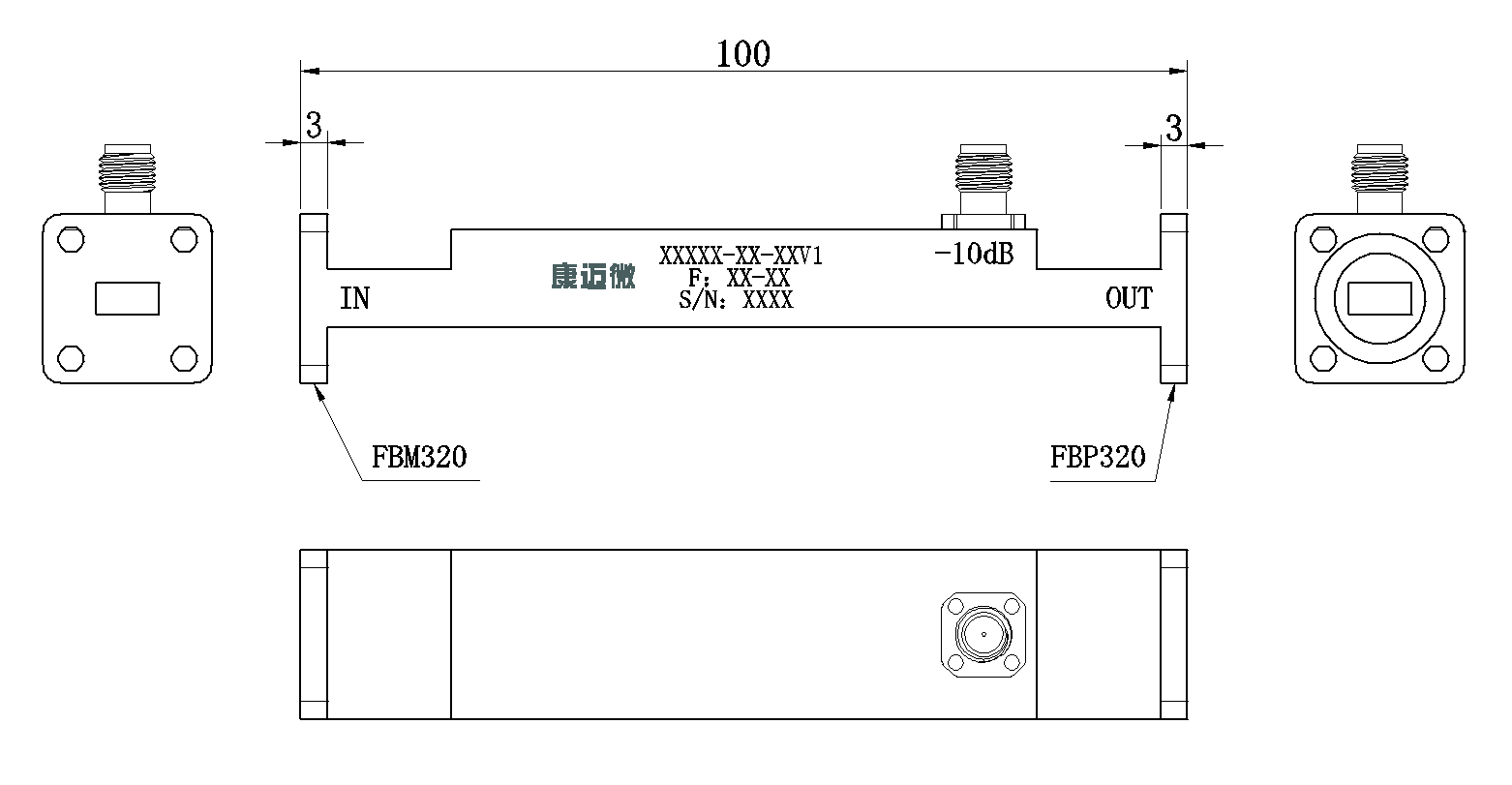

Configuration(mm)

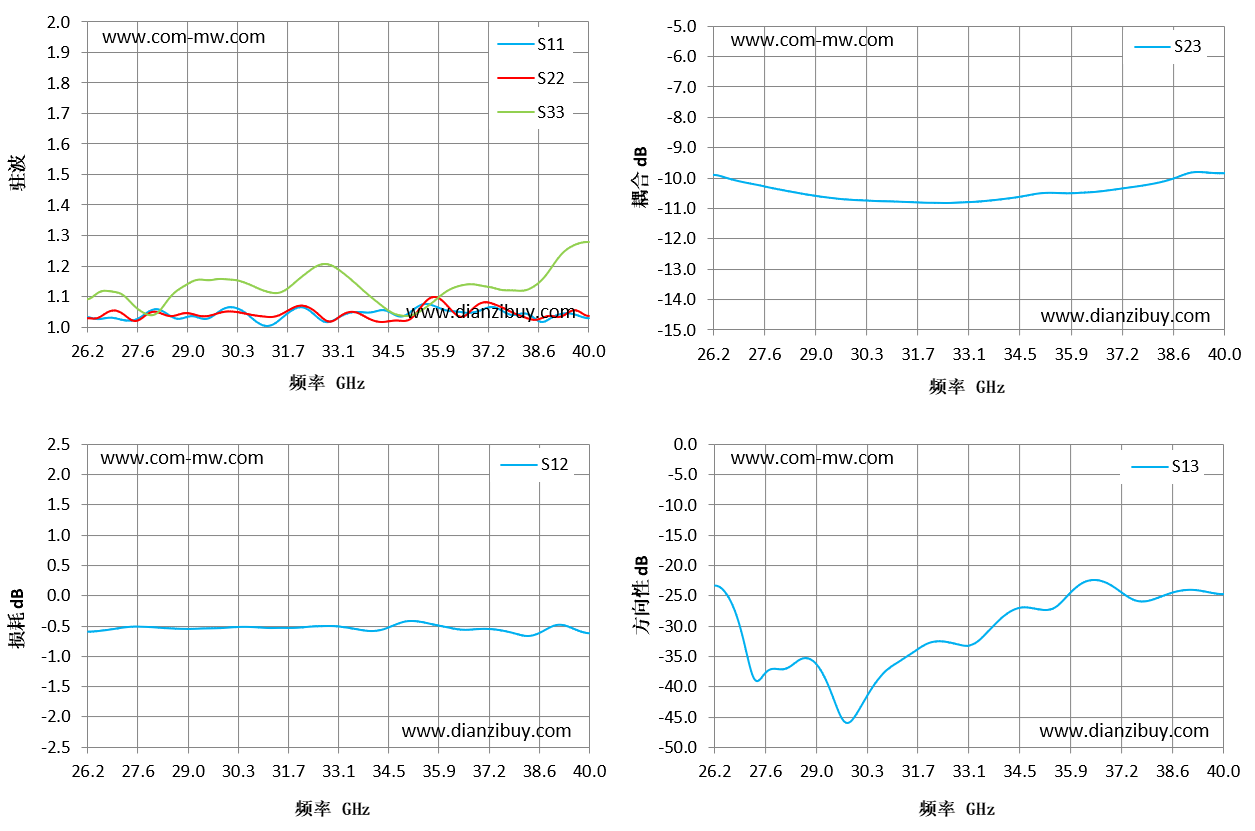

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
