Double ridge waveguide adapter
Frequency18~40GHz, 25W, Ridged waveguide, WRD180C24, 2.92
- DAWC-18-40G-2.92K
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| IL | 0.4 | dB | ||
| VSWR | 1.4 |
Other parameters
| Power Capacity | 25W Design assurance |
| Waveguide model | Ridged waveguide |
| Connector 1 | WRD180C24 |
| Connector 2 | 2.92-K |
| Surface | Black baking paint |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB |
| 17 | 1.25 | -0.08 |
| 18.71 | 1.05 | -0.1 |
| 20.43 | 1.04 | -0.11 |
| 22.14 | 1.06 | -0.09 |
| 23.86 | 1.08 | -0.08 |
| 25.57 | 1.16 | -0.15 |
| 27.29 | 1.14 | -0.15 |
| 29 | 1.16 | -0.2 |
| 30.71 | 1.12 | -0.18 |
| 32.43 | 1.14 | -0.07 |
| 34.14 | 1.19 | -0.28 |
| 35.86 | 1.08 | -0.16 |
| 37.57 | 1.08 | -0.14 |
| 39.29 | 1.15 | -0.13 |
| 41 | 1.26 | -0.18 |

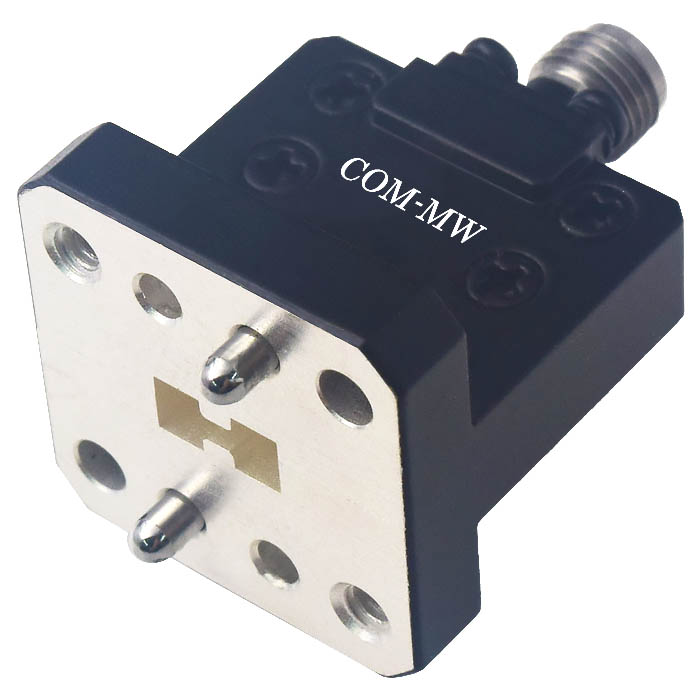

Reference picture

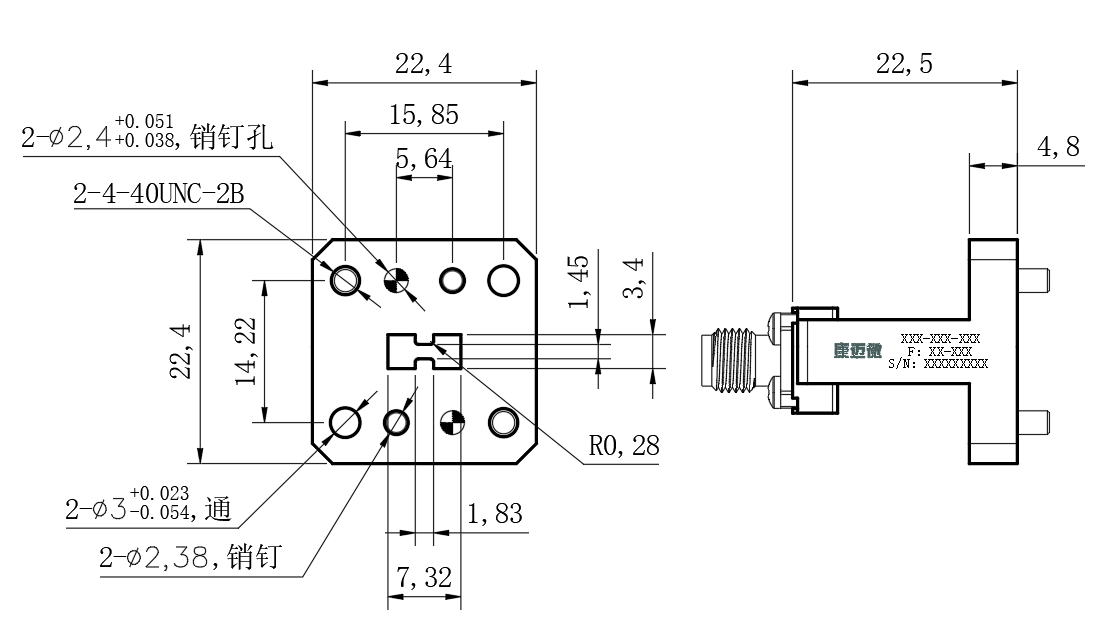

Configuration(mm)

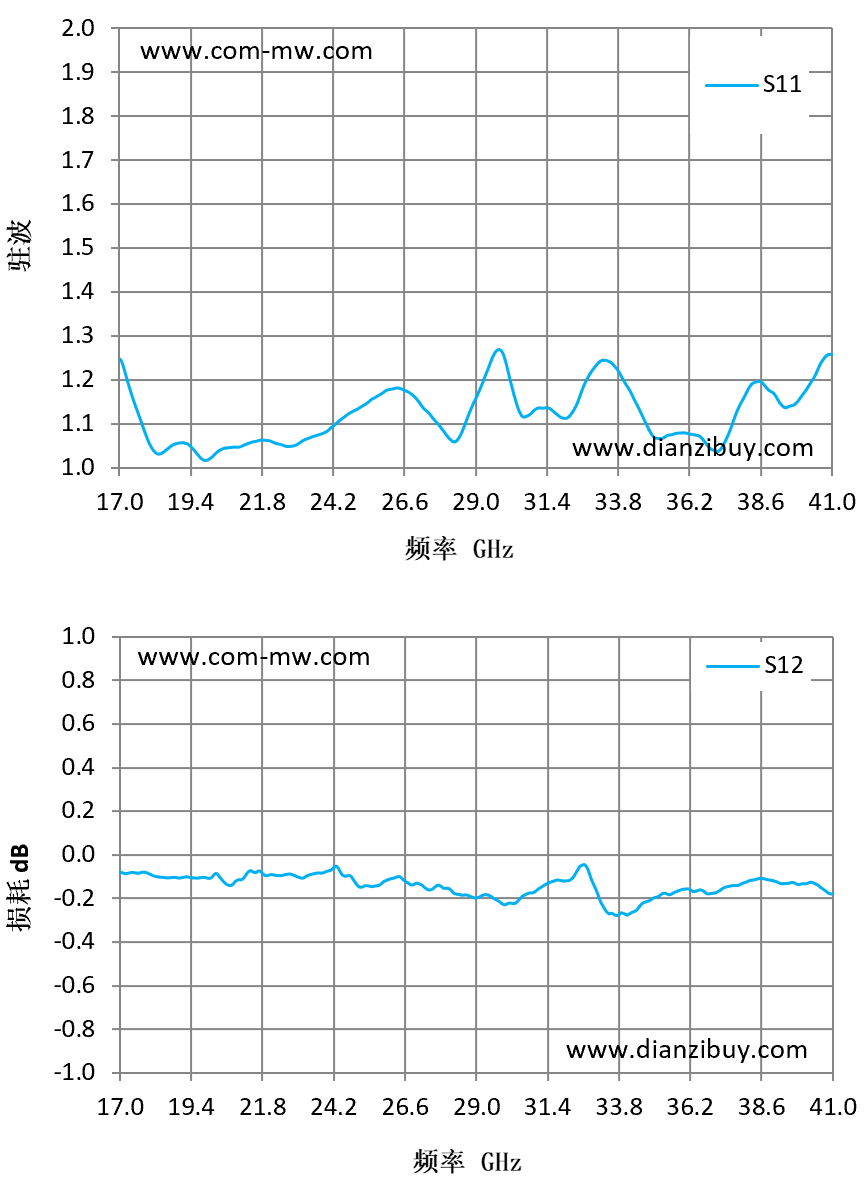

Typical test curve
