Power amplifier
Supports 220V AC and DC power supply
- DPA8-800-1000-3411
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 800 | ~ | 1000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2.5 | |||
| Psat | 35 | dBm | ||
| Harmonic Rejection | 45 | dBc | ||
| Max input power | 10 | dBm |
Product Application
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -20~+60℃ Design assurance |
| Characteristic | Supports 220V AC and DC power supply |
Instructions for use
| 1 | RF Port | N-K |
| 2 | Power supply method 1 | Input 220v AC |
| 3 | Power supply method 2 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 5 | Operation Temp. | -20 ~ + 60 ℃ Design assurance |
| 6 | Surface color | Anodizing treatment (blue) |
| 7 | Shell Material | Shell aluminum material |
| 8 | DC output | The DC power supply voltage is determined by the input voltage of the internal module. |
| 9 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
Parts list
| 1 | Standard configuration | AC power cord |
| 2 | Optional | Equipped with a power adapter |

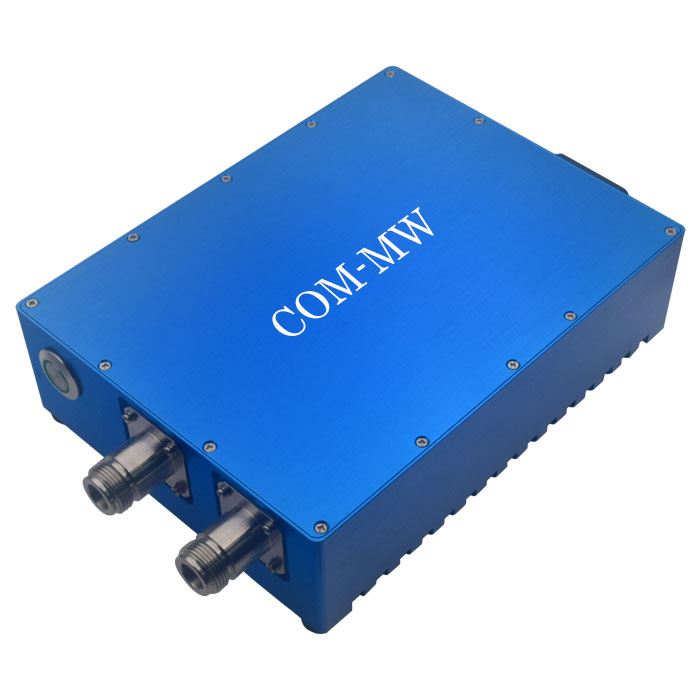

Reference picture

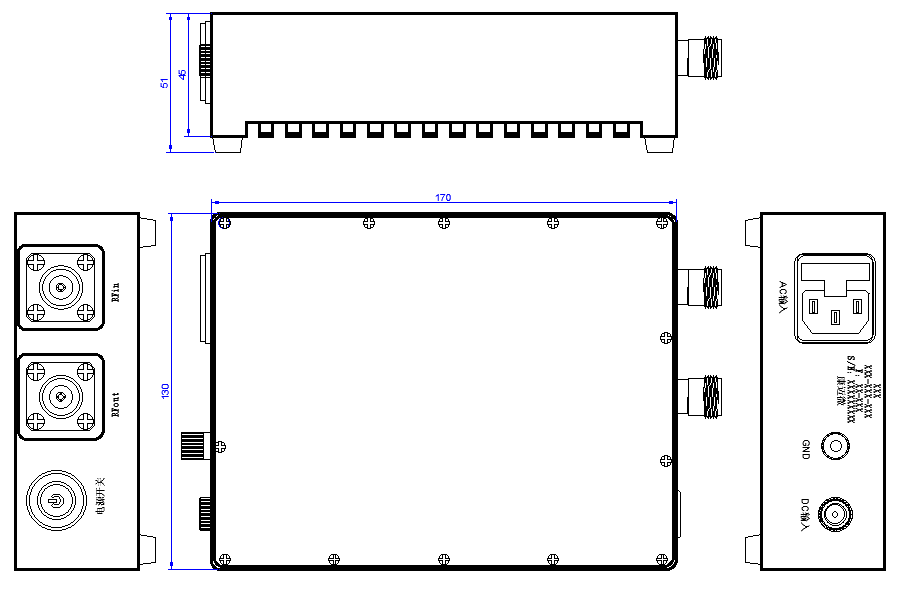

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
