LNA
2~50GHz, Gain32dB, Noise figure5.5dB, P-1dB13dBm, 2.4-F or K
- DLNA8-2-50G-9191
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 50 | GHz |
| Gain | 32 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 5.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 13 | dBm |
Other parameters
| Connector | 2.4-F or K可拆 |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +8V |
| Working current | 300mA |
| Reverse isolation | 60dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | Gain dB | Noise dB | P-1 dBm | Psat dBm |
| 1.00 | 2.14 | 1.13 | 18.33 | 7.41 | 12.30 | 15.10 |
| 4.50 | 1.51 | 1.31 | 36.51 | 4.63 | 14.29 | 17.90 |
| 8.00 | 1.29 | 1.72 | 35.41 | 3.96 | 14.03 | 17.90 |
| 11.50 | 1.20 | 1.67 | 35.41 | 3.81 | 14.80 | 18.37 |
| 15.00 | 1.24 | 1.39 | 36.30 | 3.42 | 14.68 | 18.40 |
| 18.50 | 1.44 | 1.70 | 35.60 | 3.69 | 13.99 | 17.65 |
| 22.00 | 1.40 | 1.22 | 35.00 | 3.83 | 13.50 | 17.10 |
| 25.50 | 1.10 | 1.47 | 34.94 | 4.35 | 13.63 | 17.10 |
| 29.00 | 1.29 | 1.43 | 34.73 | 4.66 | 13.27 | 16.70 |
| 32.50 | 1.58 | 1.05 | 34.87 | 4.98 | 12.81 | 15.95 |
| 36.00 | 1.43 | 1.39 | 34.96 | 5.17 | 11.42 | 15.48 |
| 39.50 | 1.44 | 1.89 | 34.77 | 5.19 | 10.11 | 14.75 |
| 43.00 | 1.47 | 1.41 | 34.93 | 5.46 | 9.93 | 14.93 |
| 46.50 | 1.42 | 1.96 | 34.58 | 5.66 | 11.52 | 13.96 |
| 50.00 | 1.71 | 1.06 | 33.19 | 5.35 | 11.50 | 13.06 |

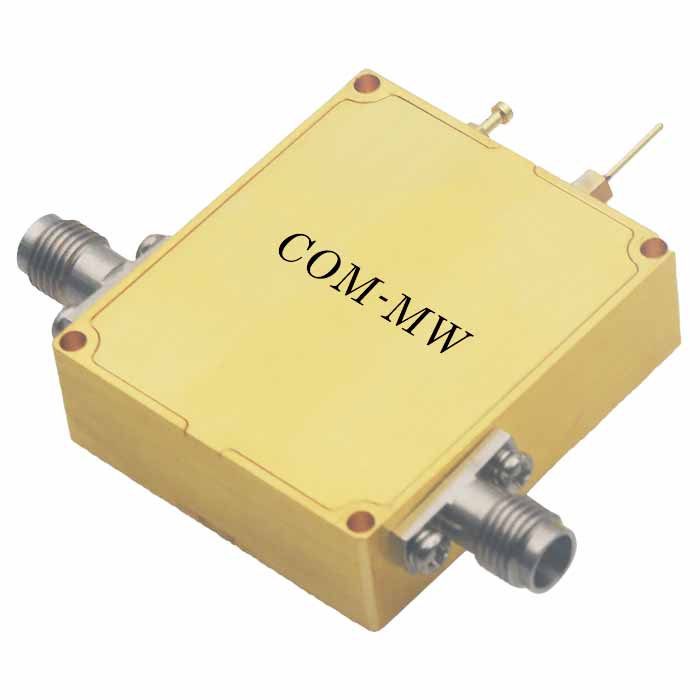

Reference picture

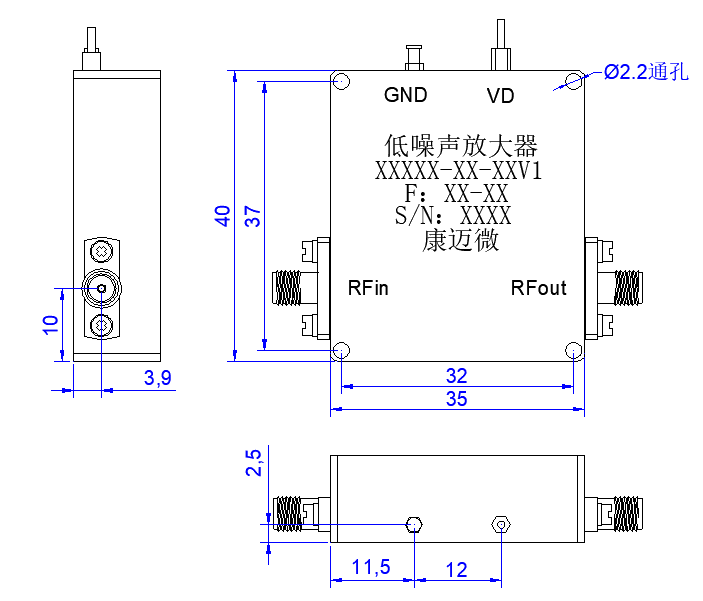

Configuration(mm)

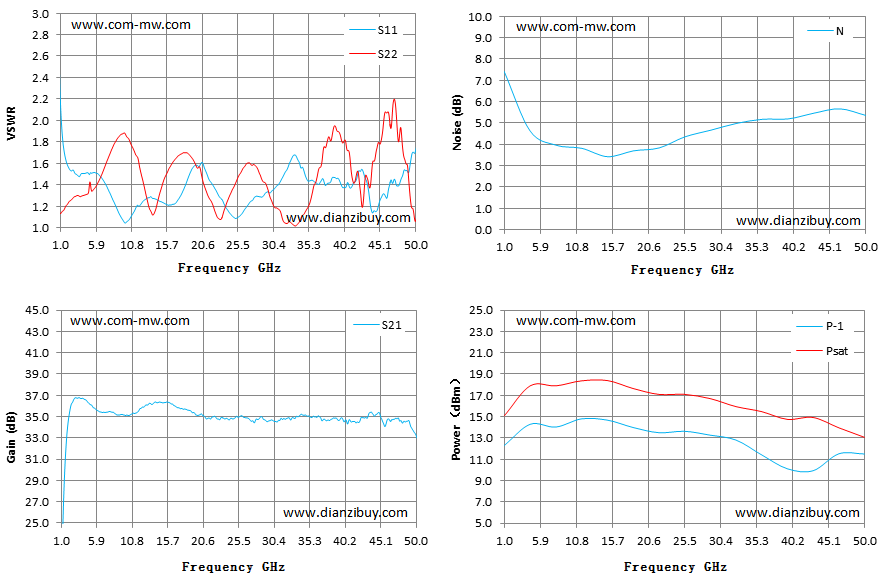

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
