Broadband LNA

30~6000MHz, Gain35dB, Noise figure2dB, P-1dB10dBm, N, USB Type-C port charging.

  • DCLNA0106-35C-S
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, low noise, with rechargeable batteries.

Main specifications

ParametersMinTypicalMaxUnits
Frequency30~6000MHz
Gain35dB
Gain flatness±2dB
Noise figure2dB
VSWR2.5
P-1dB10dBm

Other parameters

ConnectorN -JK (Input N-J)
Connector materialStainless steel
Impedance50Ω
SurfaceGrey
Working voltage+5V, USB Type-C port charging.
Working current500mA
Operation Temp.-10~+50℃ Design assurance
Quality GradeIndustrial grade
Other1. Equipped with on/off indication, charging indication, undervoltage indication, and working indication; 2. Lithium battery power supply (3 hours); 3. Configure charger; 4. Charging environment temperature: 0~+50 ℃; 5. Charging interface: USB Type-C

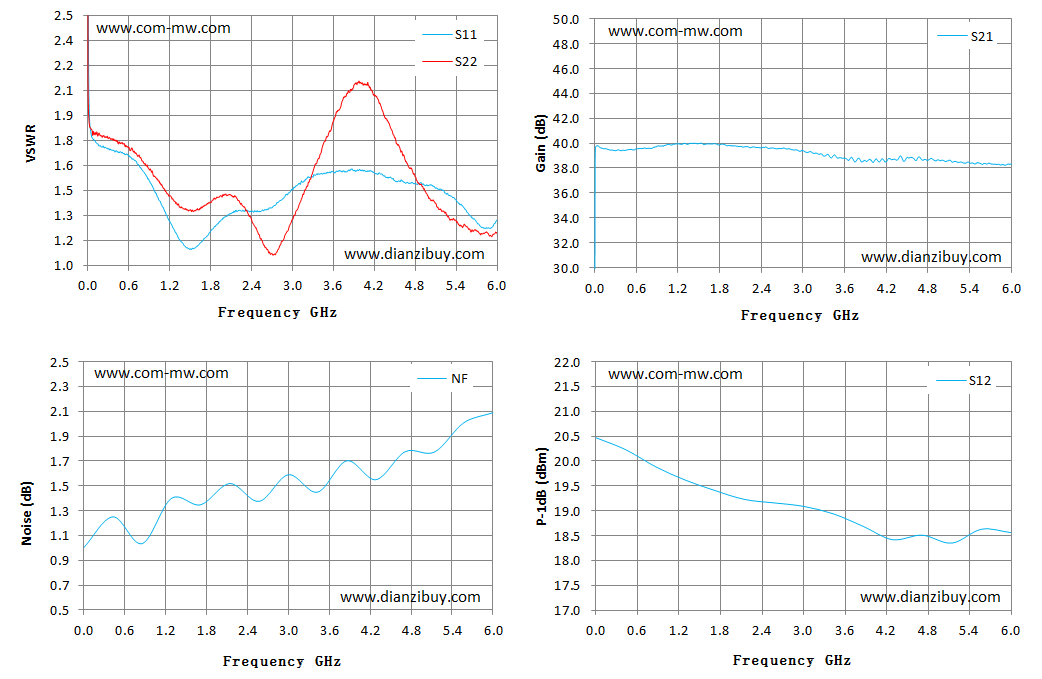

Typical test data

FrequencyS11 VSWRS22 VSWRNFGainP-1dB Out
GHz//dBdBdBm
0.031.881.85139.7520.47
0.461.681.741.2539.4320.23
0.881.521.591.0439.7219.89
1.311.191.371.4139.9919.62
1.741.171.361.3539.9619.41
2.161.321.421.5239.719.23
2.591.331.131.3739.619.16
3.021.461.281.5939.4219.09
3.441.551.711.4538.918.94
3.871.572.051.7138.518.69
4.291.551.961.5538.6918.42
4.721.491.581.7738.6418.51
5.151.461.341.7738.4918.35
5.571.321.232.0138.3218.63
61.271.22.0938.3518.56

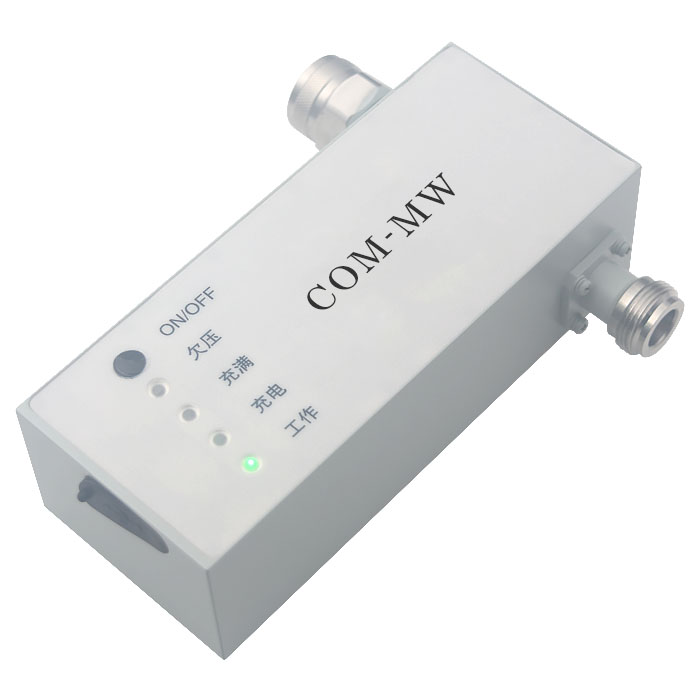

Reference picture

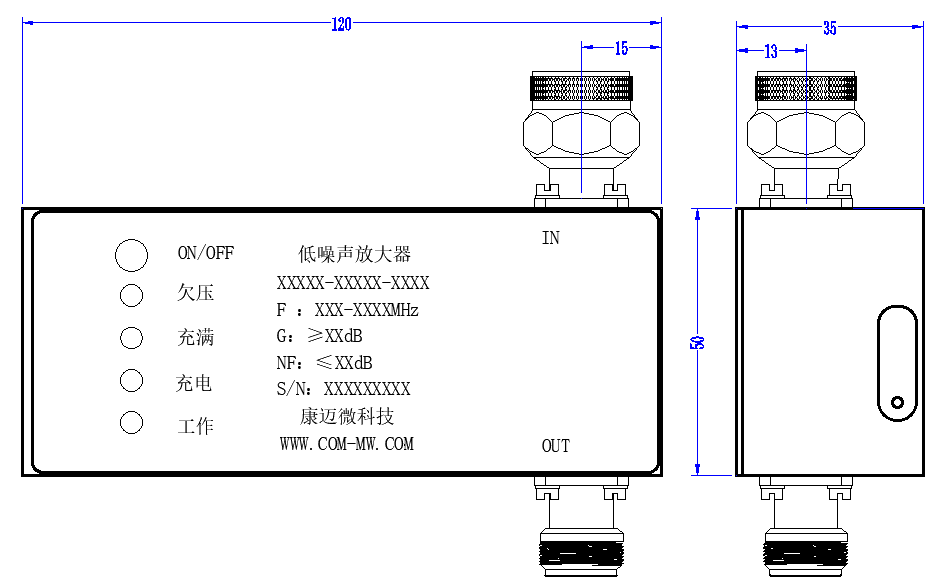

Configuration(mm)

Note
