Power amplifier

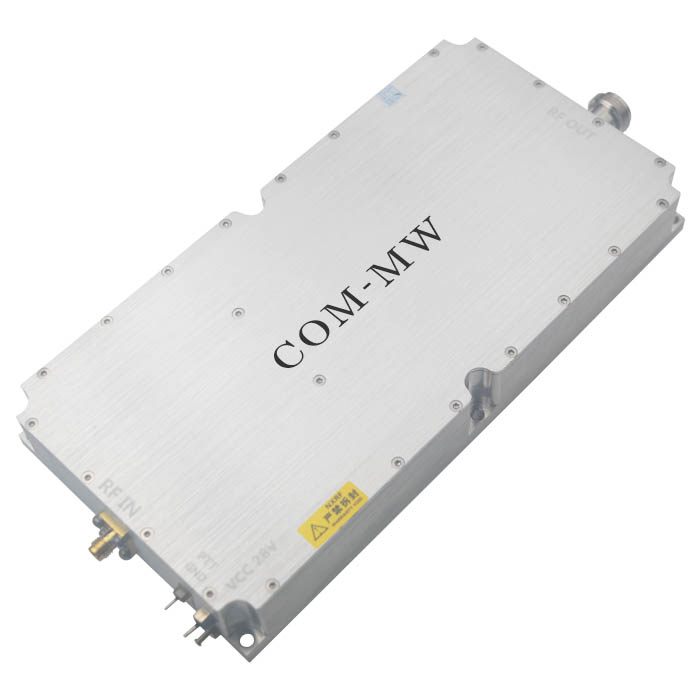

500~2700MHz, Gain47dB, Psat50W, SMA-F
- DPA9-500-2700-3124
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 500 | ~ | 2700 | MHz |
| Gain | 47 | dB | ||
| Gain flatness | 3±1 | dB | ||
| Input VSWR | 1.8 | |||
| Psat | 50 | W | ||
| Max input power | +6 | dBm | ||
| Power | 3±1 | dBm | ||
| Spur reduction | 65 | dBc | ||
| Harmonic Rejection | 10 | dBc |
Environmental
| Connector | SMA-F |
| Power amplifier PTT switch port | The amplifier is turned off by default; 3.3~5V on |
| Temperature protection | 80℃ |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +32V |
| Maximum voltage | +33V |
| Working current | 10A |
| Operation Temp. | -25~+55℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Power amplifier testing or use requires the installation of a heat sink |

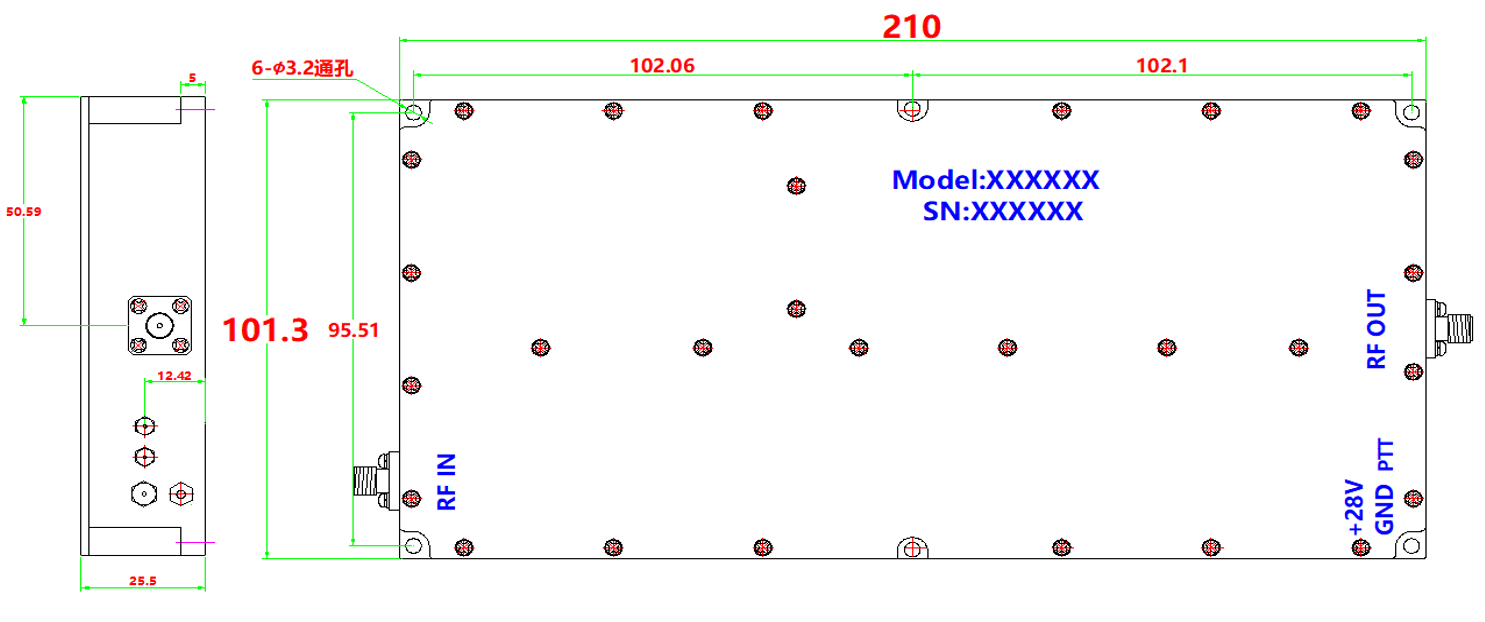

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
