LNA

2000~26000MHz, Gain12dB, Noise figure5dB, P-1dB8dBm, SMA

  • DLNA8-2000-26000-3681
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency2000~26000MHz
Gain12dB
Gain flatness±2dB
Noise figure5dB
VSWR2.5
P-1dB8dBm
Max input power10dBm
Spur reduction70dBc
Harmonic Rejection20dBc
OIP317dBm
Reverse isolation20dB

Other parameters

ConnectorSMA
Connector materialStainless steel
Impedance50Ω
Working voltage+12V
Working current100mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

FrequencyS11S22GAINP-1PSATNF
GHzVSWRVSWRdBdBmdBmdB
12.12.1312.661819.34.52
2.822.081.2514.7816.318.94.12
4.641.981.1614.615.217.83.76
6.461.731.0314.1615.317.53.59
8.291.891.0813.8615.517.33
10.111.411.2714.2315.417.42.4
11.931.221.3414.7214.915.92.47
13.751.851.4614.651516.82.72
15.571.51.0915.3614.816.72.56
17.391.331.2115.5513.916.12.88
19.211.751.2815.3713.8163.37
21.041.571.3115.513.415.53.02
22.861.331.1615.5512.3153.23
24.681.341.315.21214.93.54
26.51.251.44314.6211.114.33.84

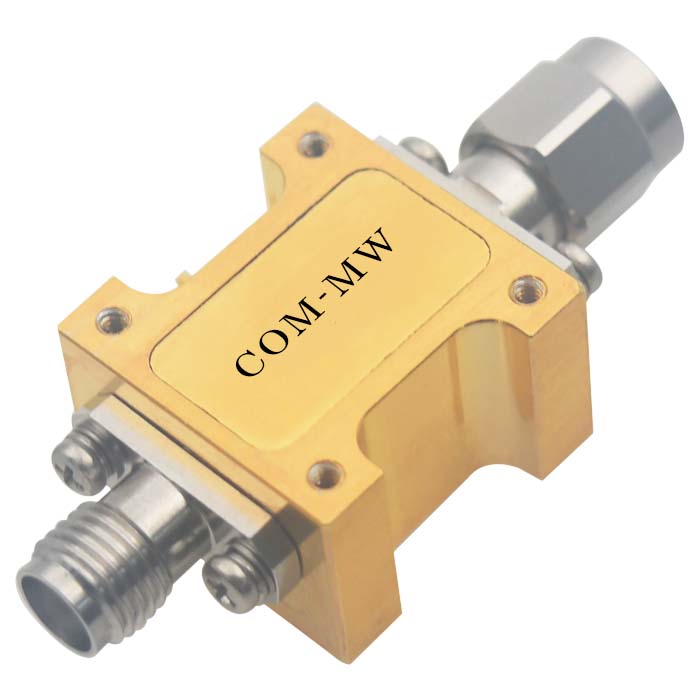

Reference picture

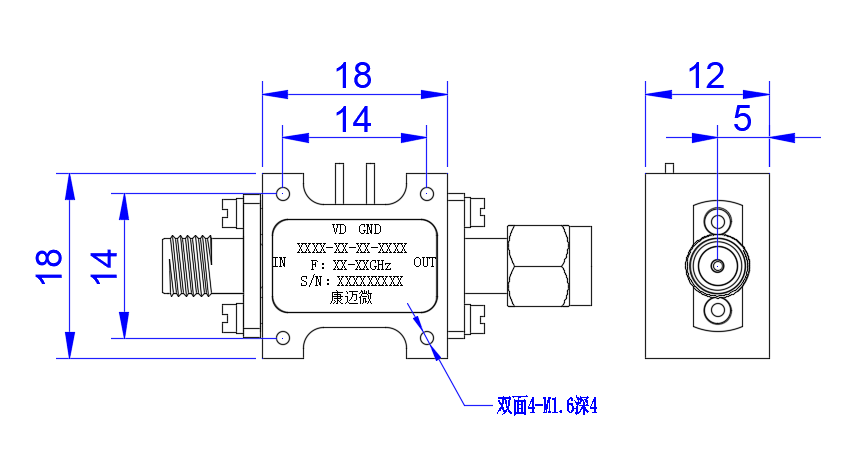

Configuration(mm)

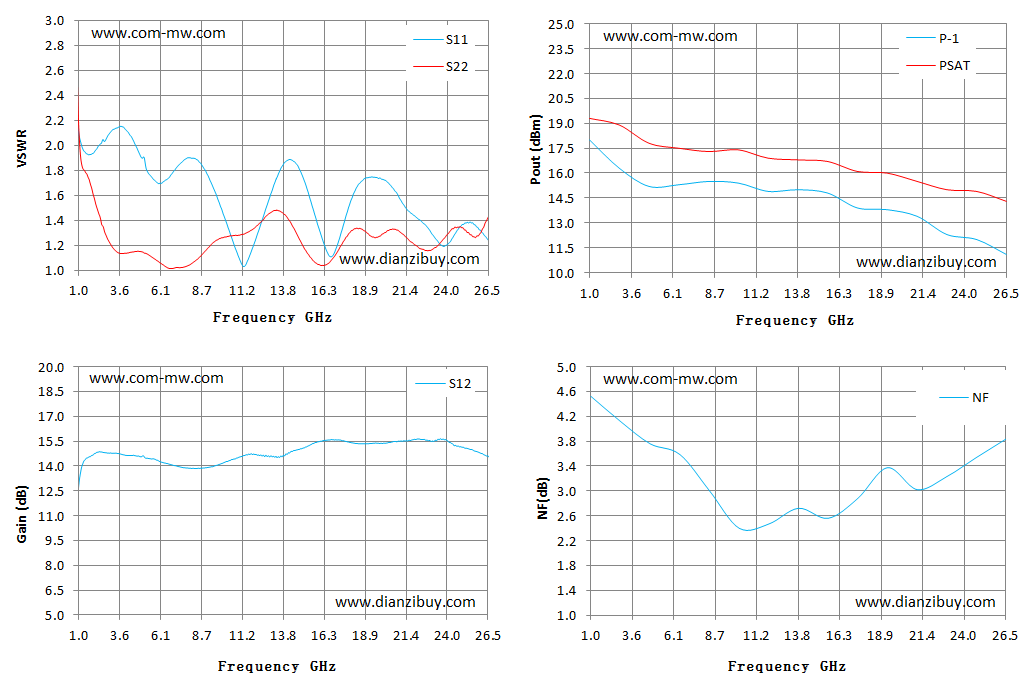

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
