LNA
40~67GHz, Gain48dB, Noise figure10（设计保证）dB, P-1dBdBm, 1.85
- DLNA8-40-67G-9474
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Units |
| Frequency | 40 | ~ | 67 | GHz | |
| Gain | 48 | 52 | dB | ||
| Gain flatness | ±4 | dB | |||
| Noise figure | 10（设计保证） | dB | |||
| VSWR | 2 | ||||
| P-1dB | 17（设计保证） | dBm | |||
| Psat | 19（设计保证） | dBm | |||
| Max input power | 5 | dBm |
Other parameters
| Connector | 1.85-F or K |
| Connector material | Shell copper plated with gold |
| Impedance | 50Ω |
| Working voltage | +5V |
| Working current | 850mA |
| Operation Temp. | -30~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain |
| 36.00 | 1.49 | 1.08 | 54.66 |
| 38.43 | 1.83 | 1.68 | 55.16 |
| 40.86 | 2.01 | 1.57 | 55.40 |
| 43.29 | 1.77 | 1.54 | 54.68 |
| 45.71 | 1.42 | 1.46 | 53.93 |
| 48.14 | 1.28 | 1.32 | 52.54 |
| 50.57 | 1.17 | 1.34 | 52.36 |
| 53.00 | 1.05 | 1.75 | 52.44 |
| 55.43 | 1.10 | 1.12 | 52.17 |
| 57.86 | 1.12 | 1.14 | 50.20 |
| 60.29 | 1.36 | 1.32 | 48.96 |
| 62.71 | 1.51 | 1.59 | 50.76 |
| 65.14 | 2.18 | 1.16 | 53.07 |
| 67.57 | 1.83 | 1.53 | 54.85 |
| 70.00 | 1.45 | 1.68 | 48.96 |

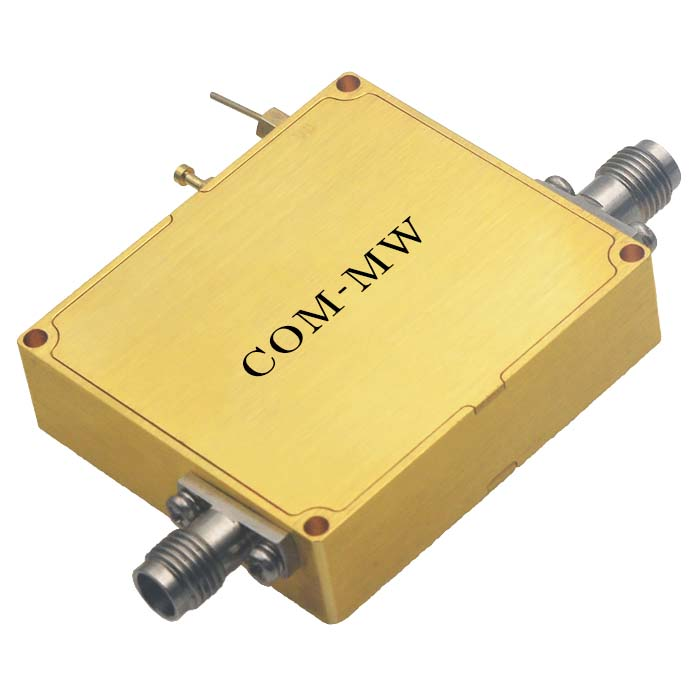

Reference picture

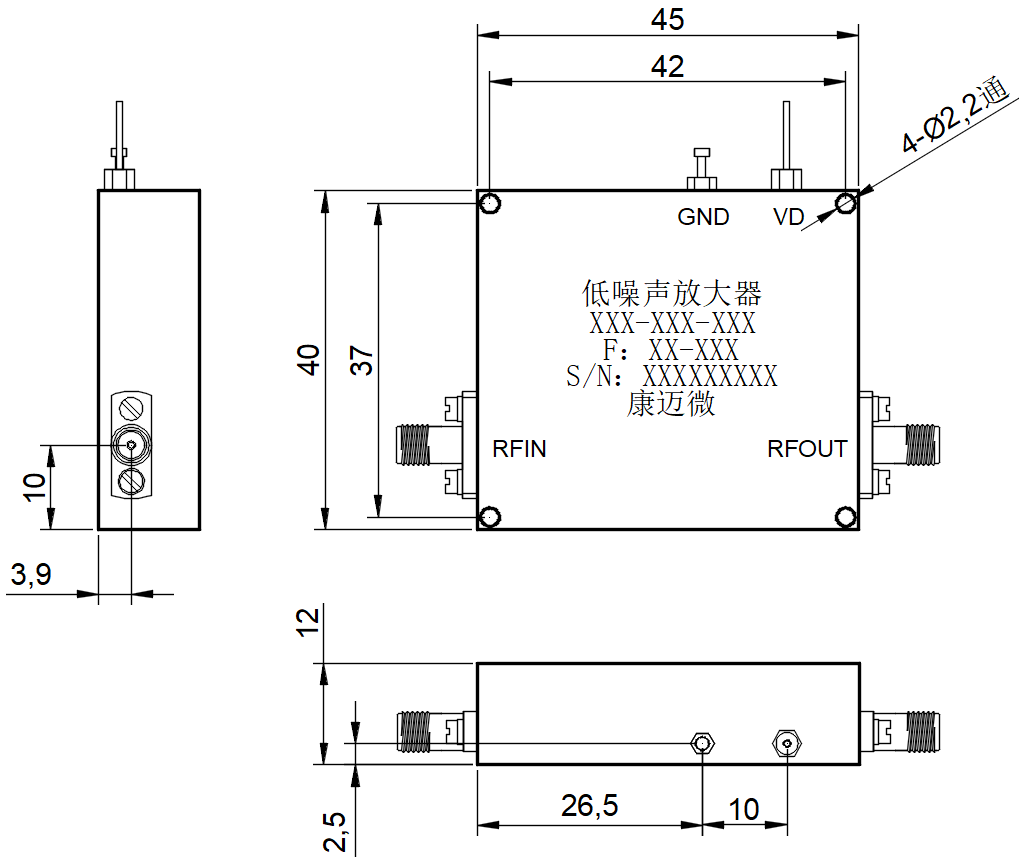

Configuration(mm)

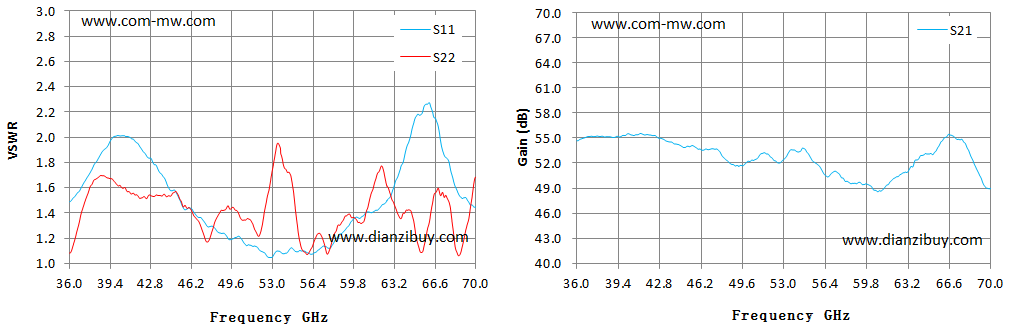

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
