Power amplifier
300~22000MHz, Gain30dB, Psat30dBm, SMA
- DPA8-500-22000-1865
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low power, small size and high reliability.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 300 | ~ | 22000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm |
Environmental
| Connector | SMA-K |
| Surface | Conductive oxidation |
| Working voltage | +15V |
| Working current | 1000mA |
| Operation Temp. | -35~+65℃ Design assurance |

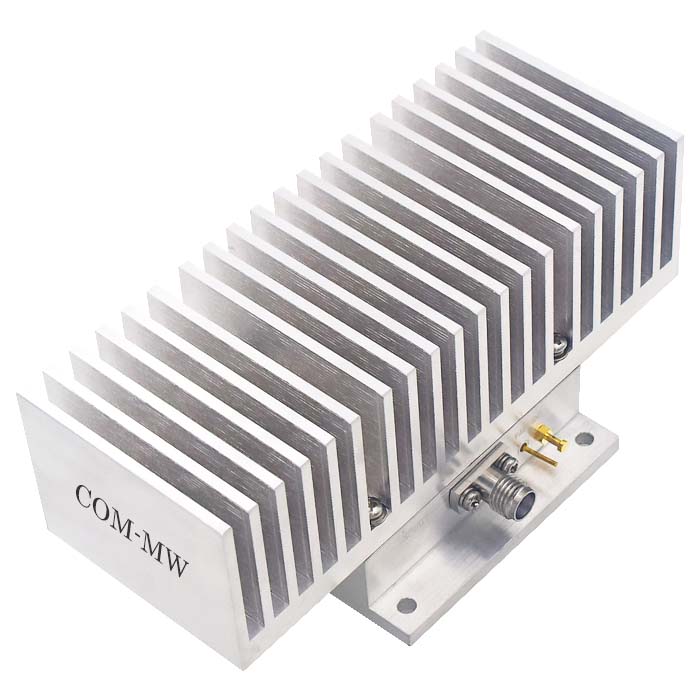

Reference picture

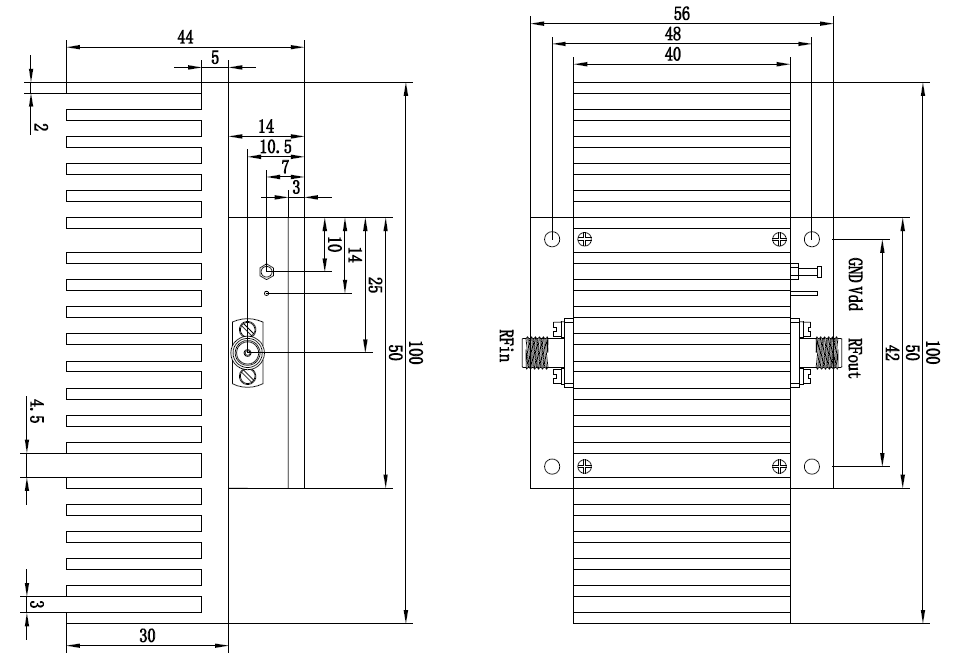

Configuration
