Switch matrix
DC~10000MHz, 10*36路, Reflective, 20ms, N
- DSM8-0-10000-1172
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high-power.
tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 10000 | MHz |
| IL | 4 | dB | ||
| Isolation | 60 | dB | ||
| VSWR | 2 |
Other parameters
| Switch way | 10*36路 |
| Switching characteristic | Reflective switch |
| Switch time | 20ms |
| Connector | N-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power | 40W Design assurance |
| Working voltage | +220V |
| Work Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| control interface | RJ-45 |
| Switching Lifetime | 1 million Cycles |
| Other | 10 RF ports and power switches are placed on the front panel, while 36 RF interfaces, RJ-45, and AC interfaces are placed on the rear panel. |
Packing list
| 1 | 1 host |
| 2 | 1 AC power cord |
| 2 | 1 set of test report or user /uploads/kmw-media/dsm8-0-10000-1172/manual/DSM8-0-10000-1172@2023-09-02-17-56-00.pdf |

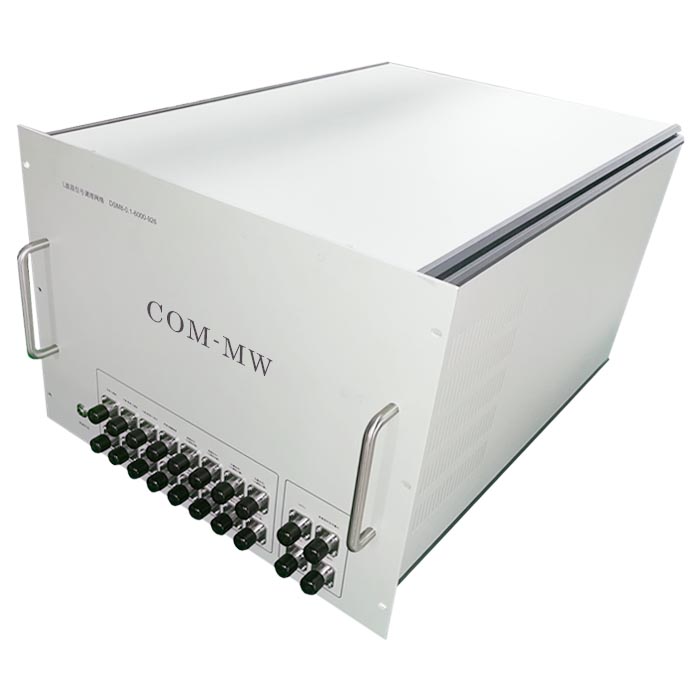

Reference picture

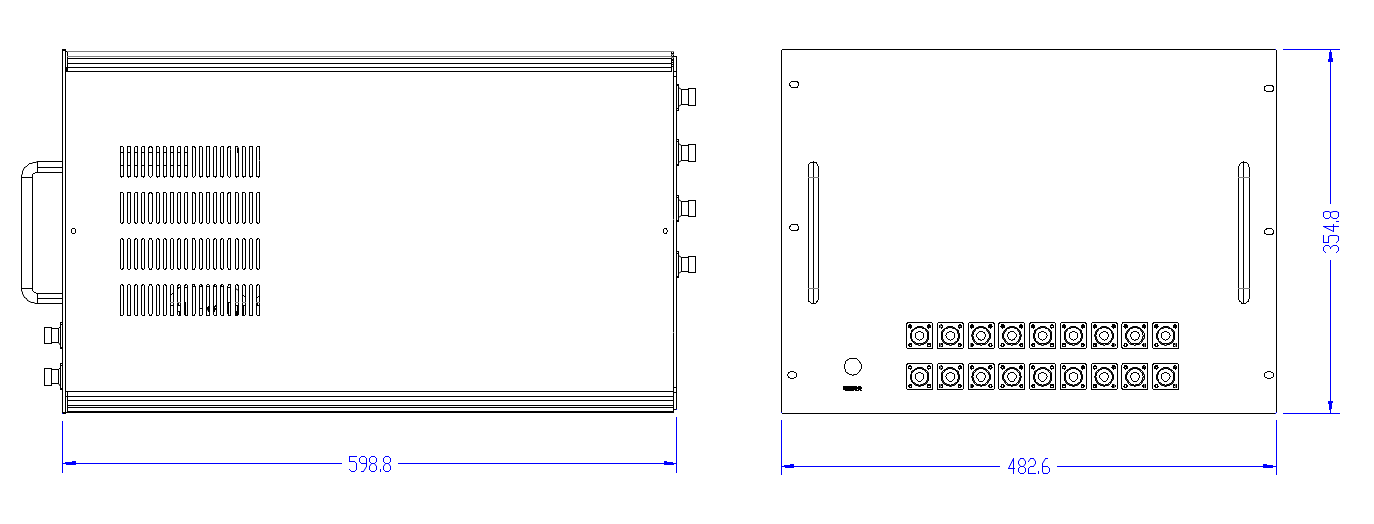

Configuration(mm)
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
