Power amplifier
2~18MHz, Power gain43dB, Output Psat43dBm, SMA
- DPA8-2-18G-17117
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband microwave solid-state power amplifier, featuring miniaturization, high efficiency, and high reliability.
主要参数（25℃测试）
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | MHz |
| Power gain | 43 | dB | ||
| VSWR | 2 | |||
| Output Psat | 43 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 60 | dBc | ||
| 2nd harmonic Rejection | 10 | dBc |
Other parameters
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Working voltage | +28V |
| Static operating current | 2.3A |
| Working current | 6A |
| Operation Temp. | -40~+60℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Fan power supply | Power plug 220V (50Hz) |
供电、通讯接口（J30J-15ZKP）
| No. | definition | Note |
| 1~5 | +28VDC | |
| 6~10 | GND | |
| 11 | EN | High efficiency (3.3V) |
| 12 | Current reporting | |
| 13 | Temperature reporting | |
| 14 | Overvoltage and undervoltage alarm | High-voltage alarm (3.6V) |
| 15 | Coupling power reporting |
加电顺序
Fan plug (220V, 50Hz) →+28V → EN (+3.3V) → RF signal
Other frequency VSWR
Note: Changing the work sequence arbitrarily may pose a risk of burning the product.
极限工作条件
Note: Exceeding any one or multiple maximum rated values may cause permanent damage to the module. Operating near the maximum rated values for extended periods may reduce the reliability of the module.
| Parameters | Maximum Rating | Test conditions |
| Power | +10dBm | Continuous wave, 50 Ω, 25 ℃ |
| Load SWR | 5.00 | 25℃ |
| Working voltage Vd | +40V | 25℃ |
| Heat consumption Pdiss | 140W | 25℃ |

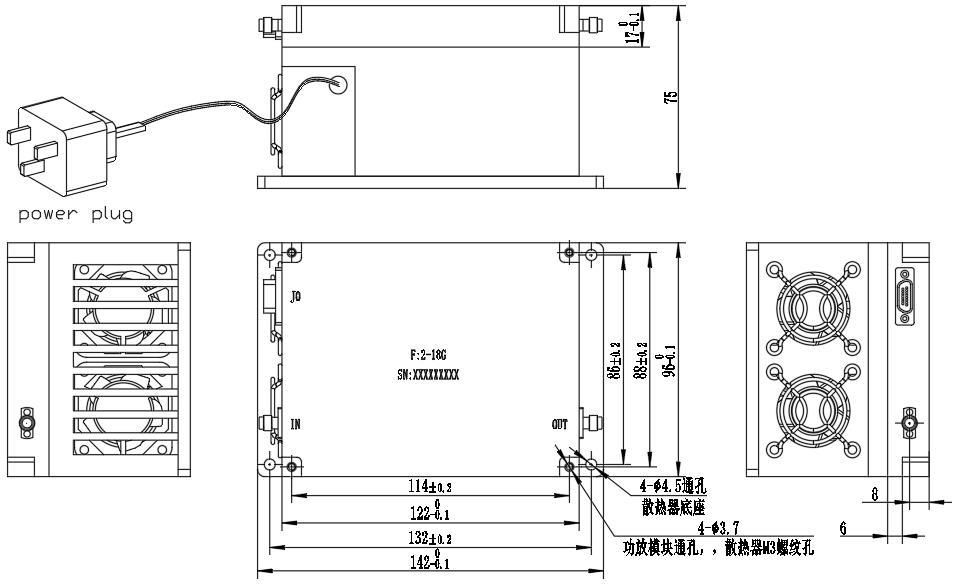

Outline structure diagram
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Good grounding, module ground, power ground, signal ground, equipment ground, and earth must be connected together;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
The output signal cannot be left floating. Please connect it to a load, and ensure that the standing wave ratio (SWR) of the load is better than 5:1;
The input signal must not exceed 10dBm.
Please connect the attenuator to the module output before connecting it to the instrument. It is recommended to choose attenuators with frequencies ranging from 2 to 18GHz, attenuation values of 40dB, and attenuators above 30W.
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
