LNA

14~18GHz, Gain30dB, Noise figure2.5dB, P-1dBdBm, OIP3dBm, SMA

  • DLNA8-14-18G-3481
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
3D Outline Drawing

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency14~18GHz
Gain30dB
Gain flatness±1±1.5dB
Noise figure2.53dB
VSWR1.82
P-1dB9dBm
OIP315dBm
Max input power10dBm

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceWhite
Working voltage+12V
Working current200mA
Reverse isolation60dB
Operation Temp.-40~+75℃ Design assurance
Quality GradeIndustrial grade

Typical test data

Frequency GHzS11 VSWRS22 VSWRGain dBNF dBP-1 dBmPsat dBm
132.261.2733.22.38.711.1
13.4321.4633.22.48.911
13.861.851.6533.32.28.510.8
14.291.691.733.22.19.111
14.711.561.6533.52.29.211
15.141.491.5833.82.39.411.1
15.571.421.4634.12.39.711.2
161.271.3834.12.39.911.5
16.431.161.3633.92.41011.5
16.861.081.4533.52.41011.7
17.291.131.5533.42.49.711.6
17.711.221.67332.59.811.8
18.141.191.8632.72.69.711.7
18.571.172.0232.62.89.611.4
191.362.0632.62.99.711.6

Reference picture

Configuration(mm)

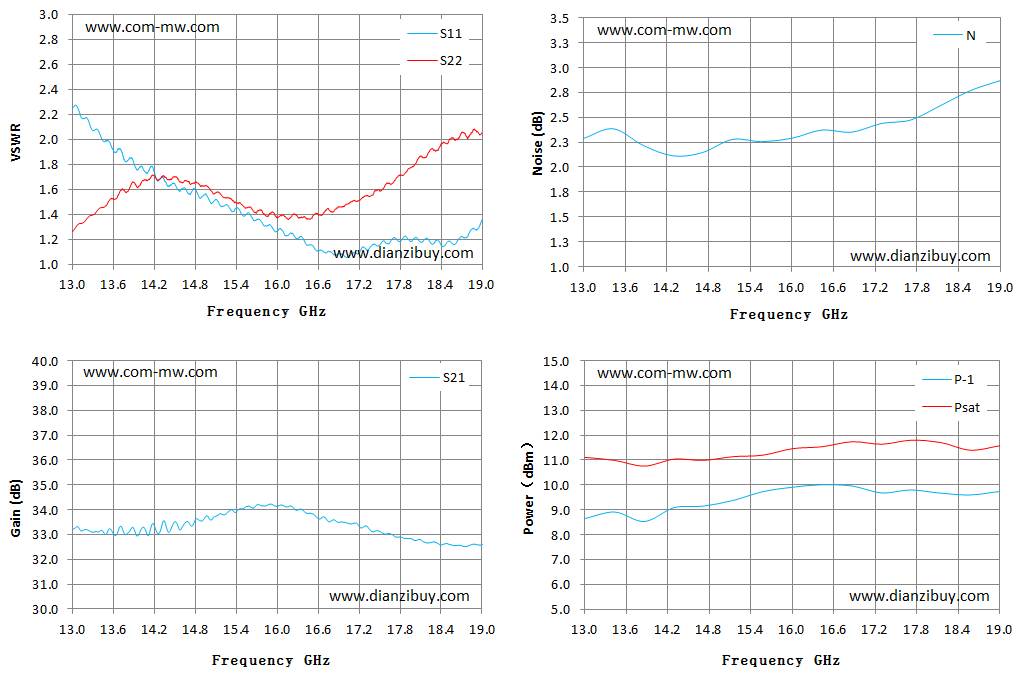

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
