LNA

30~1000MHz, Gain30dB, Noise figure1dB, P-1dB18dBm, SMA-K

  • DLNA8-30-1000-3901
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency30~1000MHz
Gain3032dB
Gain flatness±0.4dB
Noise figure11.2dB
VSWR2
P-1dB18dBm
Spur reduction80dBc
Harmonic Rejection30dBc
OIP330dBm

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12V
Working current300mA
Reverse isolation50dB
Operation Temp.-40~+70℃ Design assurance
Power supply portSSMA connector power supply, port detachable.

Typical test data

Frequency MHzS11 VSWRS22 VSWRS21 GainS21 Noise1db功率 功率 dBmPsat dBm
101.731.7132.963.4620.721.7
1521.181.7733.410.8622.422.9
2941.281.7433.360.9821.822.7
4361.381.6833.380.9920.922.6
5791.491.6233.390.9120.422.4
7211.611.5533.360.822022.1
8631.711.4733.270.8419.722
10051.811.3933.190.9619.622.1
11471.941.3133.071.1919.522.1
12892.041.2532.91.4119.222
14312.141.1932.731.4818.922
15742.251.1632.551.3819.121.9
17162.331.1632.341.2118.821.8
18582.381.1932.131.0918.821.7
20002.431.2331.981.021921.6

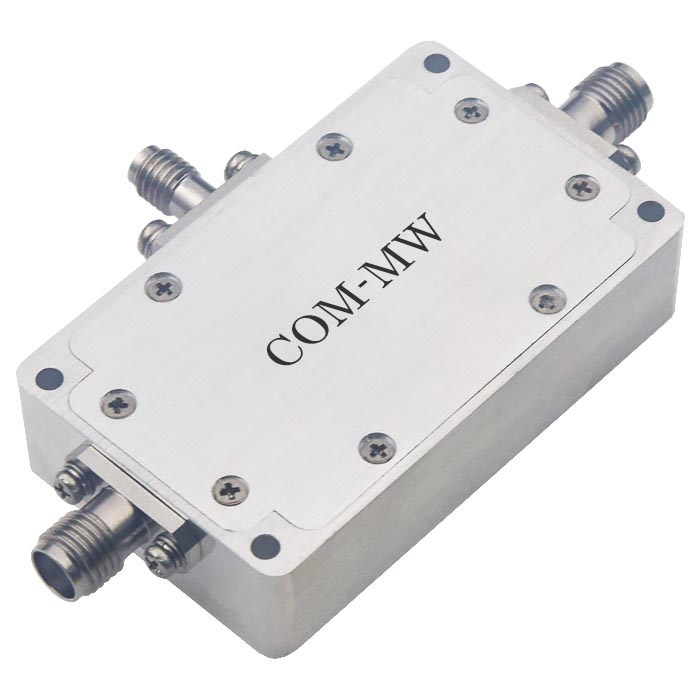

Reference picture

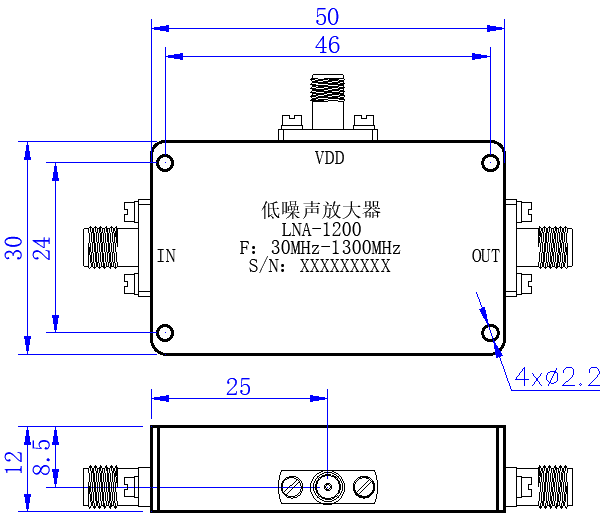

Configuration(mm)

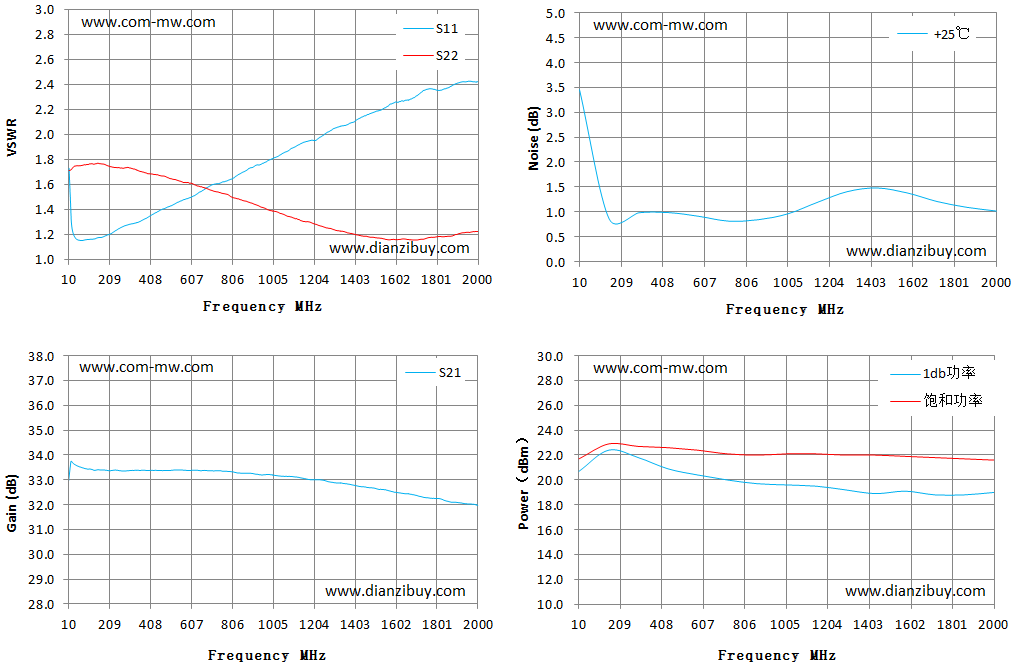

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
