LNA

0.4~2GHz, Gain40dB, Noise figure2dB, P-1dB22dBm, SMA

  • DLNA8-0.4-2G-3468
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
3D Outline Drawing

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency0.4~2GHz
Gain40dB
Gain flatness±2dB
Noise figure2dB
Input VSWR1.4
Output VSWR2.4
P-1dB22dBm
OIP330dBm
Reverse isolation80dB

Other parameters

ConnectorSMA-F Detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceWhite
Working voltage+12V
Working current400mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 gainNoiseP-1 dBmPsat dBm
0.19.931.8628.6710.6719.221.9
0.381.071.442.162.5524.2524.7
0.661.21.4443.921.524.1924.8
0.941.11.5344.021.423.6624.9
1.211.031.743.441.3323.2624.3
1.491.061.8742.611.4323.1624.3
1.771.052.0142.391.3723.0323.8
2.051.042.1142.481.4322.9423.7
2.331.062.1742.391.4423.0223.7
2.611.162.1741.681.3422.9423.7
2.891.362.1340.121.2822.7123.9
3.161.622.0537.721.4422.423.2
3.441.831.9734.481.6222.323.2
3.721.911.9231.621.5521.322.8
41.91.8828.731.5619.622

Reference picture

Configuration(mm)

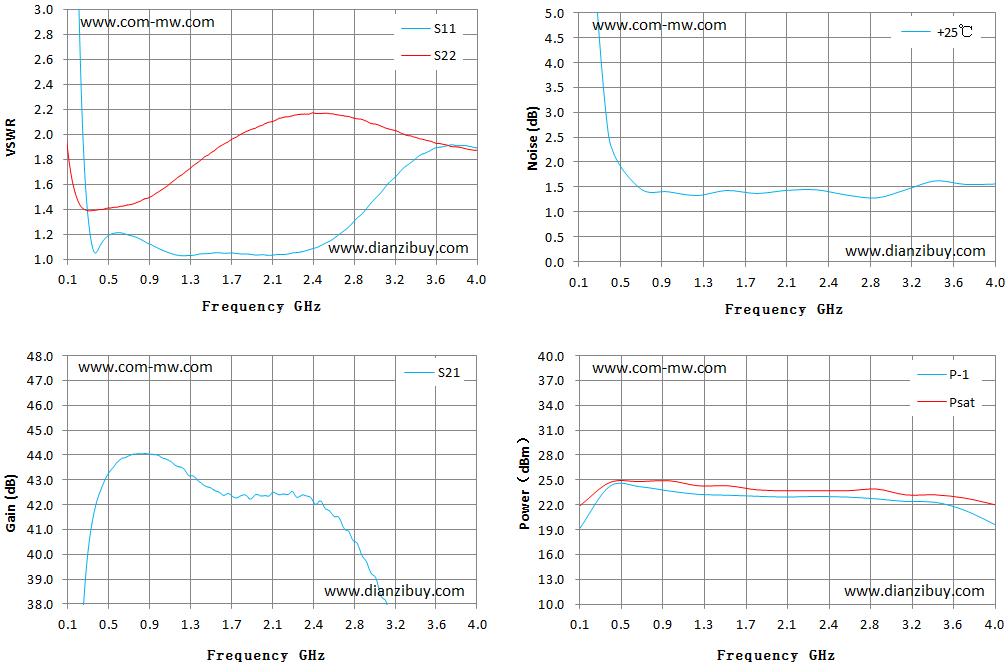

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
