LNA

18~40GHz, Gain40dB, Noise figure5dB, P-1dB10dBm, 2.92

  • DLNA8-18-40-2839
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency18~40GHz
Gain40dB
Gain flatness±2.5dB
Noise figure5dB
VSWR22.5
P-1dB10dBm
Reverse isolation40dB
Max input power0dBm

Other parameters

Connector2.92-K
Connector materialStainless steel
Impedance50Ω
Working voltage+15V
Working current500mA
Reverse isolation40dB
Operation Temp.+10~+60℃ Design assurance
OtherBattery+6V, 2Ah rechargeable lithium battery
OtherCharging adapter (Output /Input): 15 VDC, 500 mA / 1150-240VAC, 60 Hz
Charging time: 8 to 10 hours

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gainS21 P-1dB25 ℃ noise
171.351.6650.3714.83.21
18.711.241.9549.0516.33.37
20.431.231.5848.716.53.35
22.141.311.2647.7916.93.37
23.861.371.2346.53173.63
25.571.381.2745.3416.63.61
27.291.481.3945.6516.83.66
291.741.5145.616.14.01
30.711.981.4945.0616.23.81
32.431.971.5346.3716.44.18
34.141.761.3248.1116.43.79
35.861.11.5548.515.23.67
37.571.521.4848.9415.53.58
39.291.921.348.7714.73.57
411.791.1346.6914.33.97

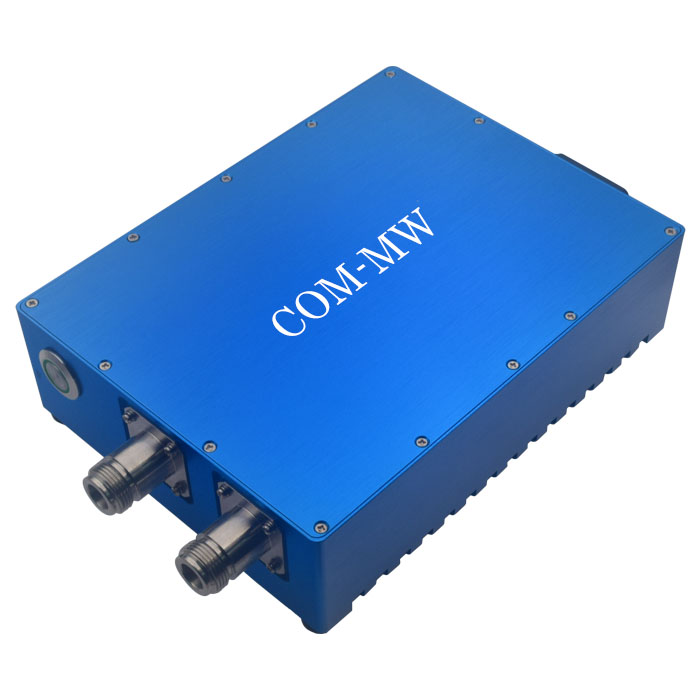

Reference picture

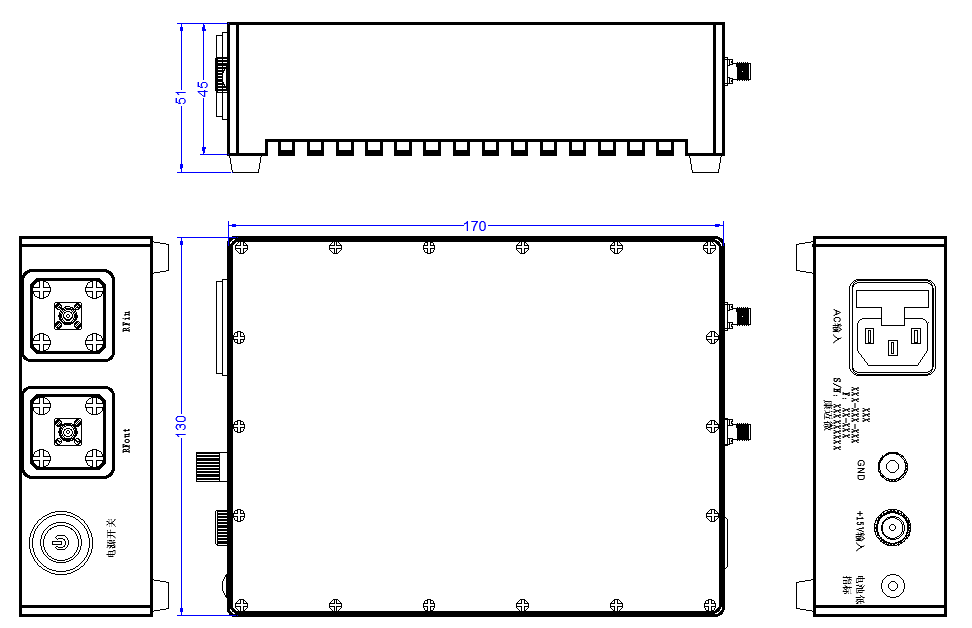

Configuration(mm)

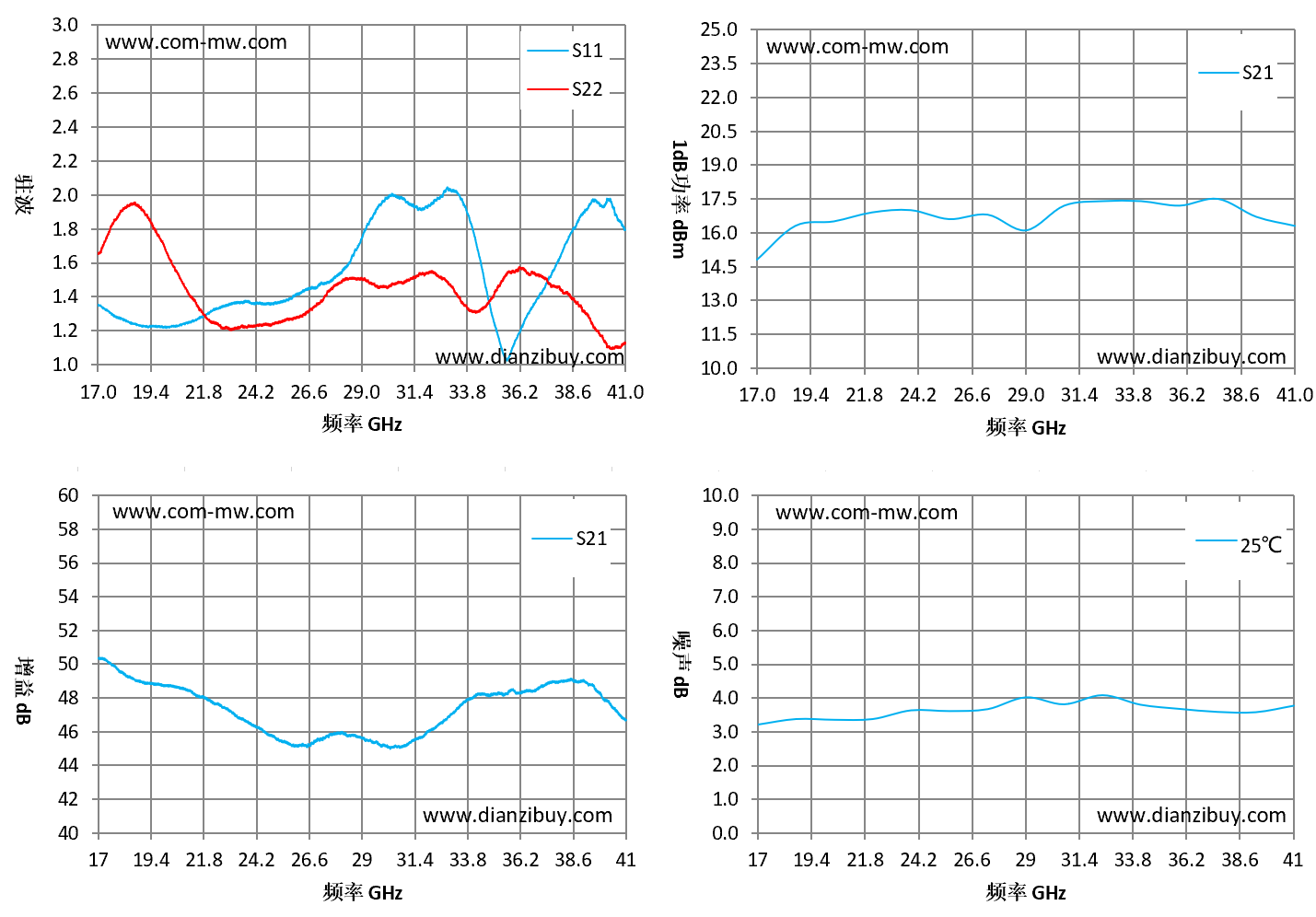

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
