Horn Antenna
Frequency1~18GHz, Gain9dBi, Linear Pol., N-K
- ZLB7-1-18G-10N
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 9 | dBi | ||
| VSWR | 2.0 | |||
| 3dB Beamwidth | 10 | 108 | ° | |
| power | 50 | W |
Other parameters
| Polarization | Linear Pol. |
| Connector | N -K |
| Outline size | 204*244*155mm |
| Estimated weight | 1.45Kg |
| Surface | Sea gray orange pattern |
| Operation Temp. | -25~+75℃ Design assurance |
| Storage Temp. | -45~+85℃ Design assurance |

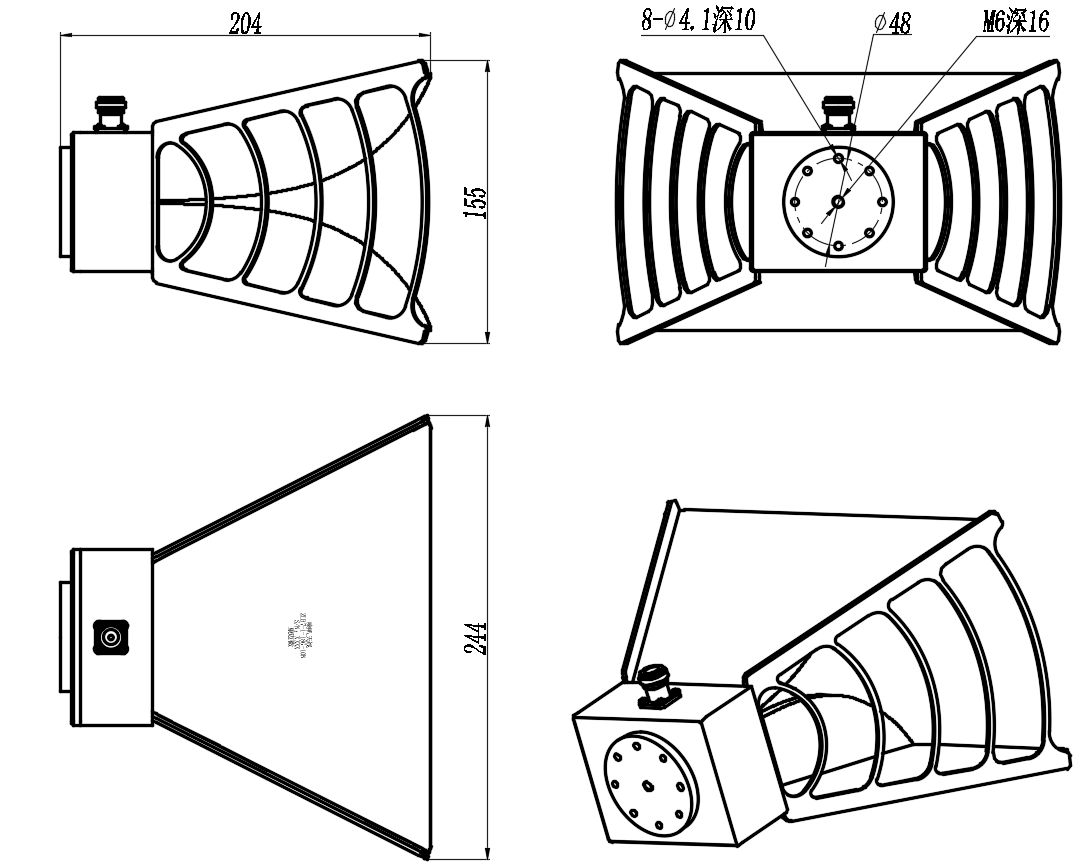

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

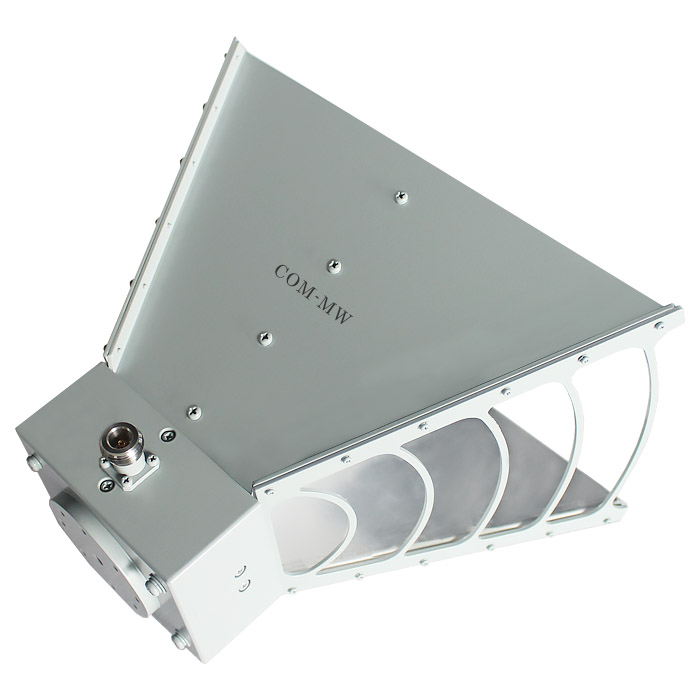

Reference picture

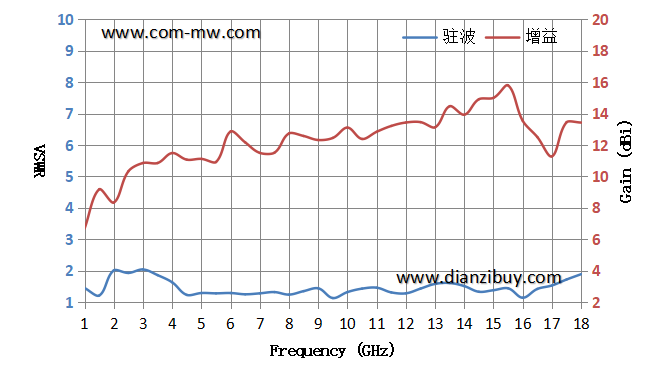

Typical test curve

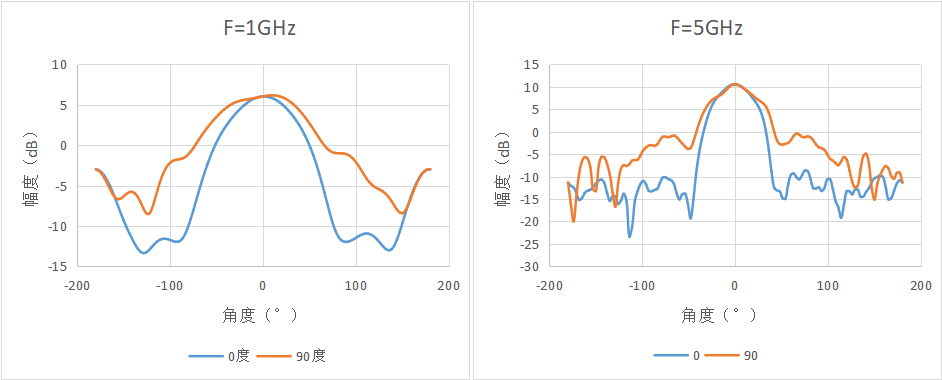

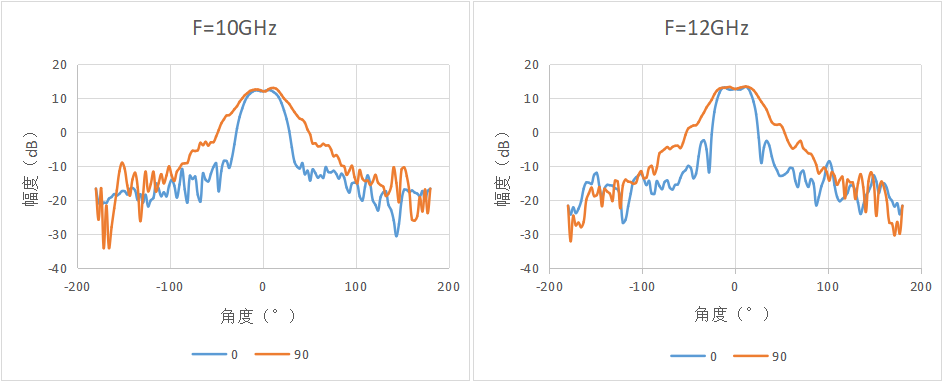

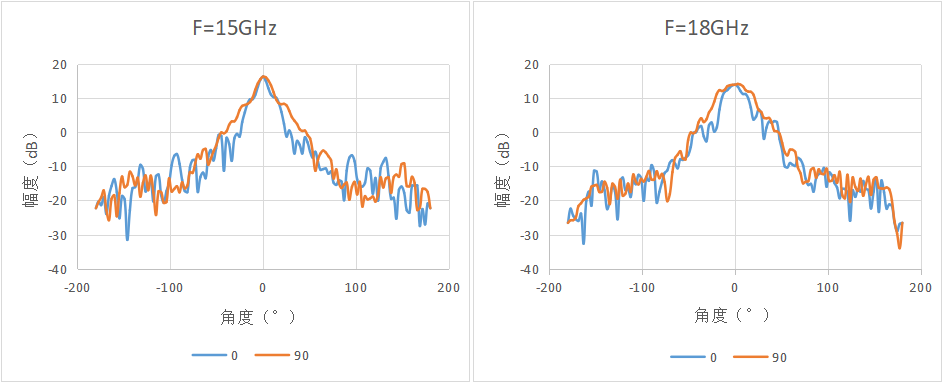

Typical antenna pattern
