LNA

26.5~40GHz, Gain55dB, Noise figure3dB, P-1dB13dBm, 2.92

  • DLNA8-26.5-40G-3283
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Product features

Broadband, low noise.

Main specifications

ParametersMinTypicalMaxUnits
Frequency26.5~40GHz
Gain55dB
Gain flatness±2dB
Noise figure3dB
VSWR2
P-1dB13dBm
Max input power15dBm

Other parameters

Connector2.92-K
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12V
Working current160mA
Reverse isolation50dB
Operation Temp.-40~+70℃ Design assurance
DC powerDC interface DC5.5mm (outer diameter) * 2.5mm (inner diameter), powered by 220V power adapter

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 GainS21 NoiseP-1 dB dBm
251.541.73562.2313.79
26.141.451.756.92.6114
27.291.311.5156.92.4914.35
28.431.151.4156.92.6614.15
29.571.421.157.12.6714.64
30.711.751.29572.5614.28
31.861.591.3756.42.6613.73
331.251.4756.72.6414.17
34.141.141.4856.42.6914.95
35.291.51.2156.12.8615.97
36.431.681.155.82.8215.44
37.571.81.1457.12.6114.1
38.711.741.0858.42.4415.04
39.881.431.2557.42.5114.4
411.511.4656.72.9314.67

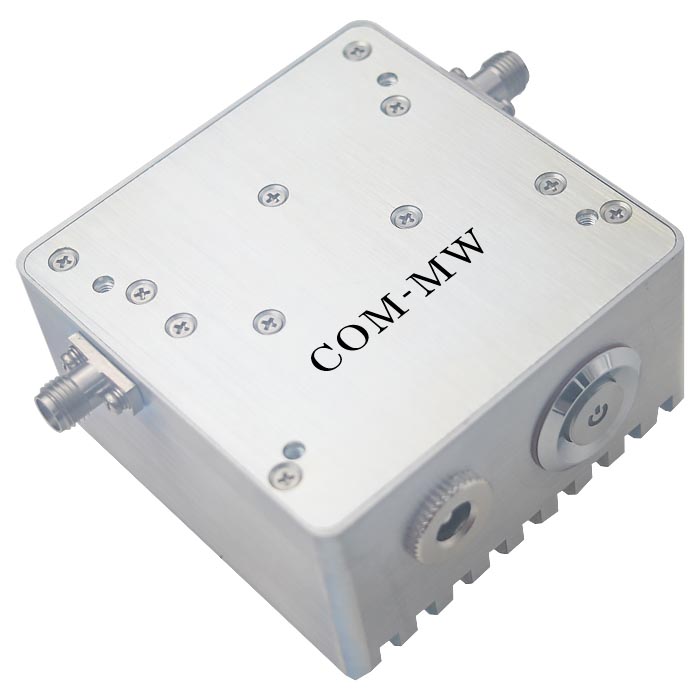

Reference picture

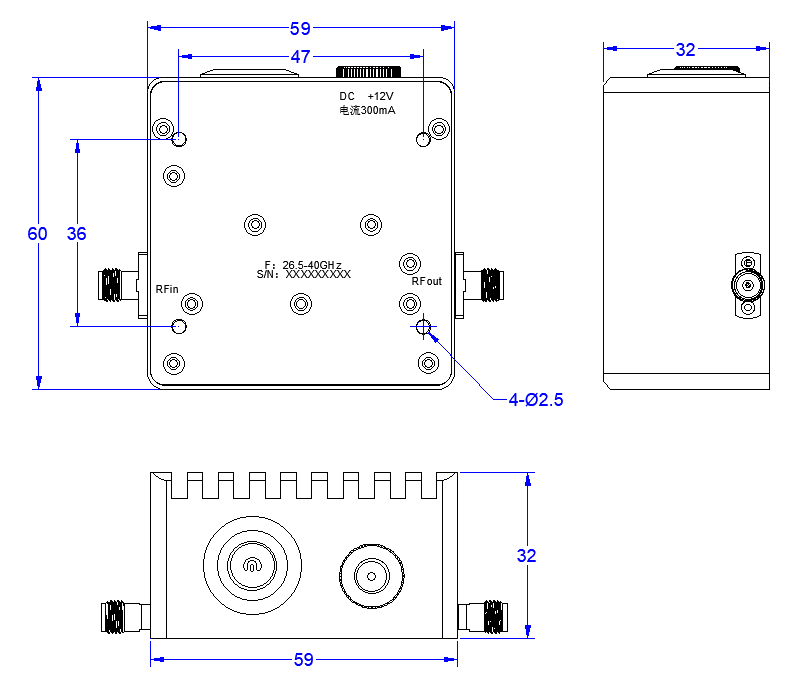

Configuration(mm)

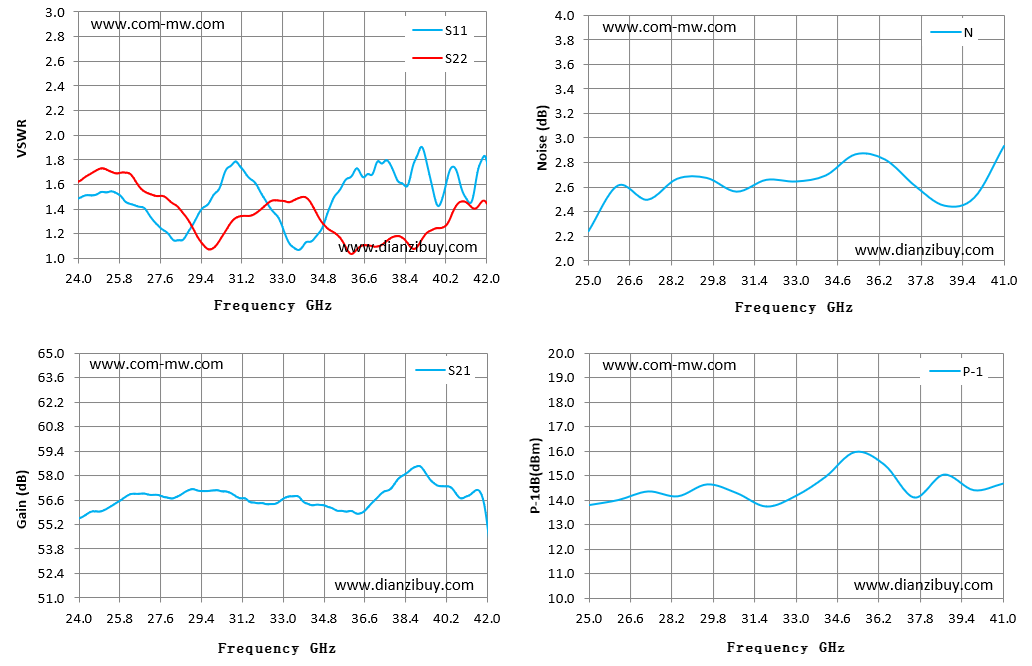

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
