Power amplifier
2~6GHz, Gain40dB, Psat43dBm, SMA
- DPA8-2000-6000-3187
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 6 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | |||
| P-1dB | 38 | dBm | ||
| Psat | 43 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 3000mA |
| Operation Temp. | -40~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | OIP3≥47dBm; Reverse isolation≥80dBc |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | IDD@P-1 | IDD@PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm | A | A |
| 2 | 1.17 | 1.56 | 43.03 | 41.62 | 43.67 | 1.86 | 2.38 |
| 2.5 | 1.08 | 1.65 | 45.88 | 39.95 | 44.6 | 1.76 | 2.69 |
| 3 | 1.19 | 1.17 | 45.98 | 41.53 | 44.43 | 1.8 | 2.42 |
| 3.5 | 1.27 | 1.48 | 44.86 | 40.9 | 45.1 | 1.72 | 2.67 |
| 4 | 1.35 | 1.85 | 44.56 | 41.61 | 44.7 | 1.72 | 2.42 |
| 4.5 | 1.39 | 2.18 | 44.98 | 40.34 | 44.6 | 1.81 | 2.82 |
| 5 | 1.30 | 1.87 | 44.76 | 41.5 | 44.6 | 1.98 | 2.74 |
| 5.5 | 1.11 | 1.29 | 45.39 | 42.49 | 44.83 | 1.99 | 2.61 |
| 6 | 1.45 | 1.27 | 44.91 | 42.51 | 44.75 | 1.83 | 2.41 |
| 6.5 | 1.88 | 2.42 | 41.59 | 41.95 | 43.05 | 1.65 | 1.89 |
Reference picture

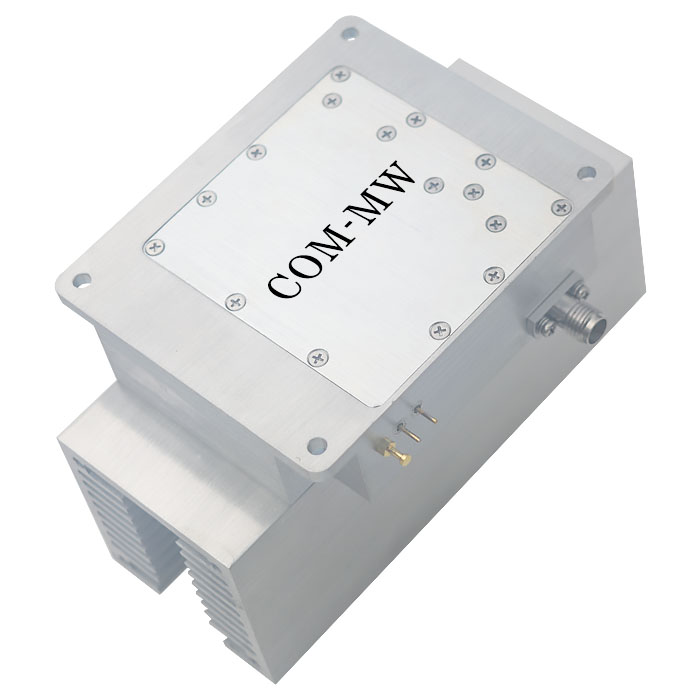

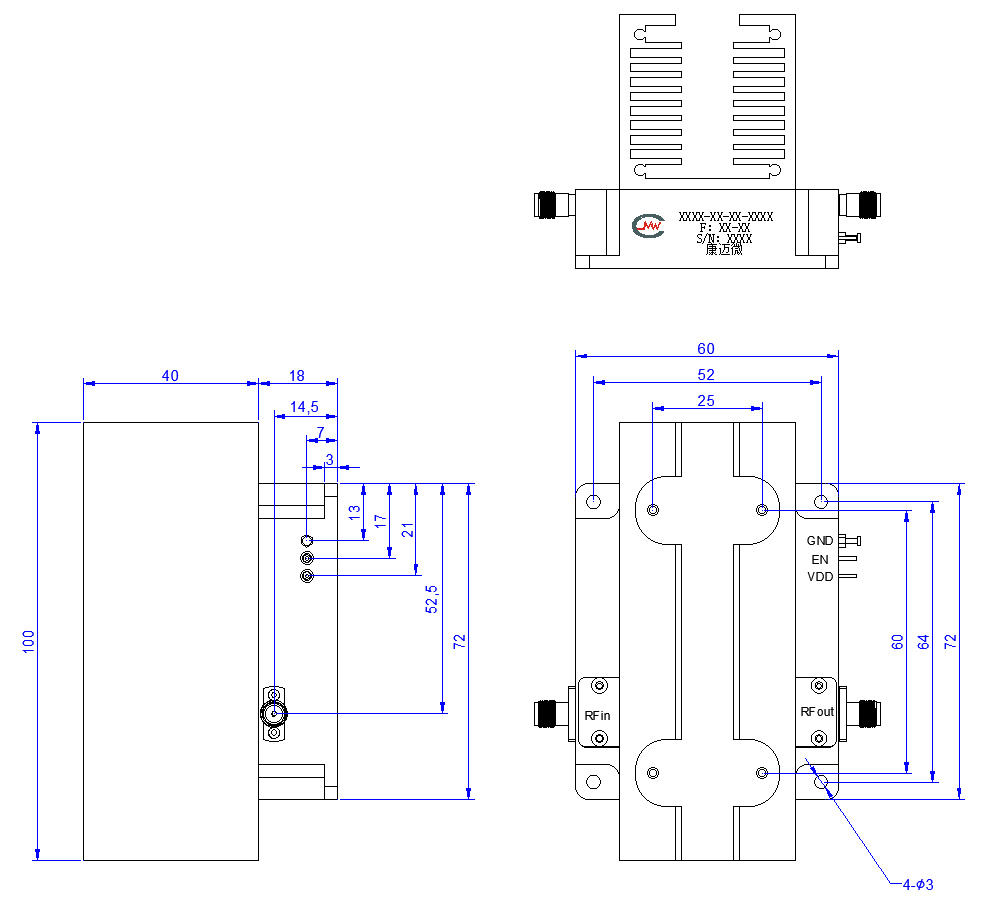

Configuration

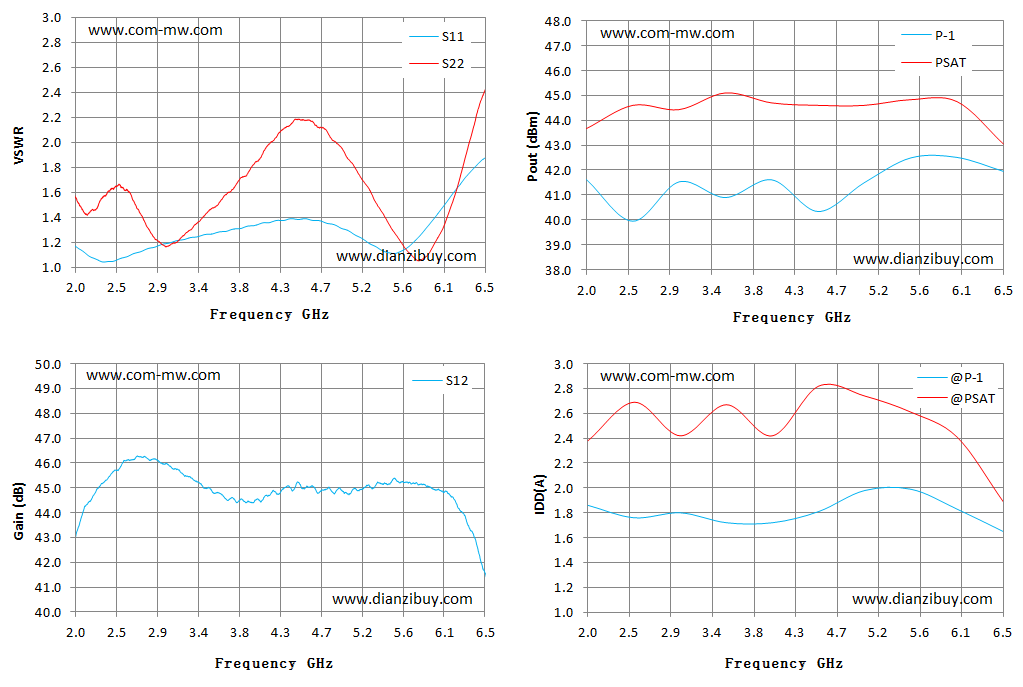

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
