Power amplifier
2~6GHz, 增益（sat）44dB, Output power48dBm, Output portN-F
- DPA8-1.9-6G-4223
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, high gain, power amplifier
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 2 | ~ | 6 | GHz | |
| 增益（sat） | 44 | dB | |||
| Flatness in band | ±5 | dB | |||
| Input VSWR | 2.5 | ||||
| Output power | 48 | dBm | CW | ||
| Efficiency | 20 | % | |||
| Harmonic Rejection | 9 | dBc | |||
| Spur reduction | 44 | 70 | dBC | F0±300k | |
| ACP | 54 | dBC |
Other parameters
| Input connector | SMA-F |
| Output port | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 15A |
| Working temperature | -40~+65℃ Design assurance |
控制接口定义（3.5mm-6p）
注意：EN地和电源地需连接良好
| No. | definition | Note |
| 1,2 | +28V | V+，建议采用1-1.5mm2的多芯铜线 |
| 3,4 | GND | V-，建议采用1-1.5mm2的多芯铜线 |
| 5 | EN | “使能"控制.0(OFF）：0V（接地）；1（ON）：5V |
| 6 | NC |
Typical test data
| F（GHz） | 2 | 2.6 | 3.2 | 3.8 | 4.4 | 5 | 5.6 | 6 |
| Pout（SAT）（dBm） | 48.78 | 50.01 | 48.80 | 49.42 | 49.01 | 48.76 | 48.06 | 44.30 |
| Pout（SAT）（W） | 75.50 | 100.23 | 75.85 | 87.49 | 79.61 | 75.16 | 63.97 | 26.91 |
| Ids（A） | 8.33 | 11.00 | 9.54 | 14.09 | 9.20 | 12.55 | 7.93 | 6.75 |
| Gain（dB） | 49.68 | 49.25 | 47.62 | 48.88 | 41.52 | 47.25 | 49.44 | 48.53 |
| ŋ（%） | 32.37 | 32.54 | 28.39 | 22.17 | 30.90 | 21.38 | 28.81 | 14.24 |
| 2nd harmonic rejection (dBc) | 19.40 | 13.60 | 34.30 | 35.60 | 38.00 | 40.60 | 33.50 | 29.60 |
| 3rd harmonic rejection (dBc) | 16.90 | 31.70 | 38.50 | 25.80 | 59.00 | 56.50 | 53.00 | 39.80 |
| Stray (dBc) | 75.00 | 75.00 | 78.00 | 76.00 | 70.00 | 70.00 | 73.00 | 69.00 |
| ACP（dBc） | 63.50 | 63.20 | 61.30 | 58.40 | 57.60 | 60.60 | 55.40 | 54.00 |

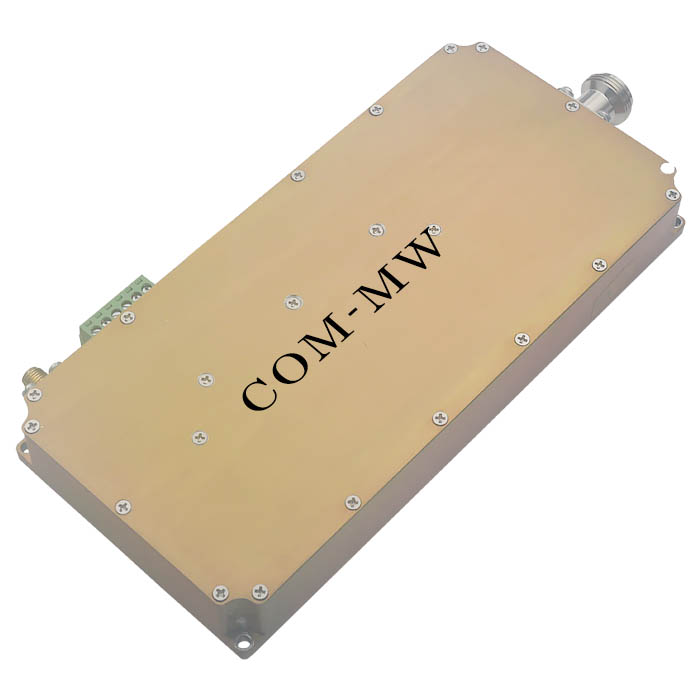

Reference picture

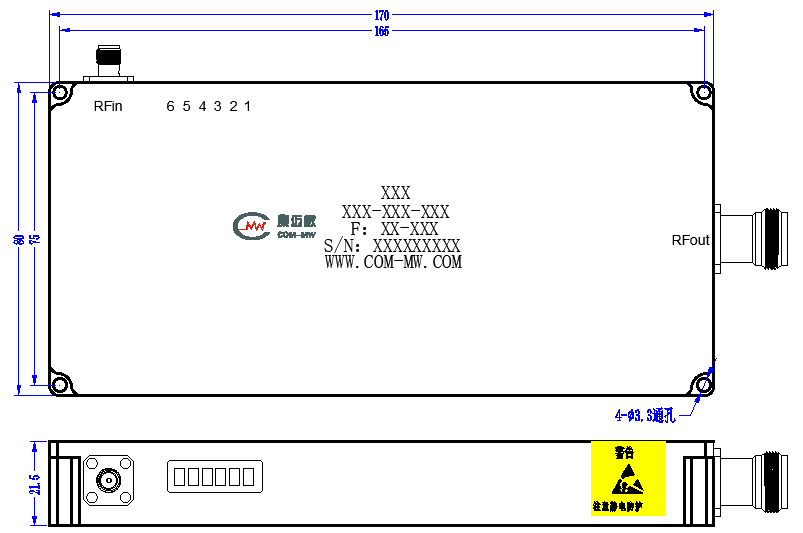

Configuration

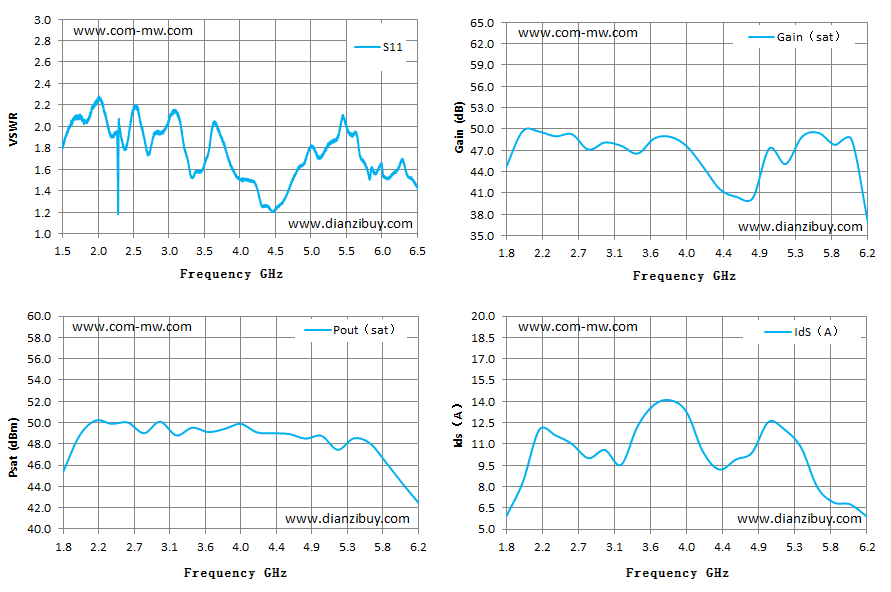

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
