Power amplifier
5.7~5.9GHz, Gain40dB, Output power40W, ConnectorSMA-F
- DPA8-5.7-5.9G-4047
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 5.7 | ~ | 5.9 | GHz | |
| Gain | 40 | dB | Saturated gain | ||
| Flatness in band | ±2 | dB | |||
| Input VSWR | 1.4 | ||||
| Output power | 40 | W | CW | ||
| Efficiency | 35 | % | |||
| Harmonic Rejection | 30 | dBc | |||
| Spurious suppression | 45 | dBC | F0±300k | ||
| ACP | 54 | dBC |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 5A |
| Working temperature | -40~+65℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |
Typical test data
| F（GHz） | 5.66 | 5.7 | 5.76 | 5.8 | 5.84 | 5.9 | 5.94 | 6 |
| VSWR | 1.36 | 1.32 | 1.29 | 1.28 | 1.23 | 1.25 | 1.34 | 1.38 |
| Pin（dBm) | 10.96 | 9.91 | 8.96 | 9.15 | 9.34 | 9.66 | 9.69 | 11.55 |
| Pout（SAT）（dBm） | 46.51 | 46.08 | 46.11 | 46.05 | 46.01 | 46.12 | 46.11 | 45.30 |
| Pout（SAT）（W） | 44.77 | 40.55 | 40.83 | 40.27 | 39.90 | 40.92 | 40.83 | 33.88 |
| Ids（A） | 4.38 | 4.13 | 3.80 | 3.67 | 3.56 | 3.45 | 3.40 | 3.23 |
| Gain（dB） | 38.60 | 39.20 | 40.17 | 40.75 | 41.19 | 41.47 | 41.25 | 40.74 |
| ŋ（%） | 36.50 | 35.06 | 38.37 | 39.19 | 40.03 | 42.36 | 42.89 | 37.46 |
| 2nd harmonic rejection (dBc) | 35.20 | 31.70 | 30.24 | 32.40 | 36.00 | 41.40 | 38.60 | 30.50 |
| 3rd harmonic rejection (dBc) | 40.60 | 39.10 | 40.10 | 41.20 | 40.00 | 33.20 | 35.40 | 35.60 |
| 4th harmonic rejection (dBc) | 52.30 | 49.30 | 50.30 | 52.50 | 54.40 | 52.00 | 53.30 | 52.80 |
| Spurious suppression | 46.80 | 46.90 | 46.00 | 45.60 | 45.70 | 46.60 | 47.20 | 47.90 |
| ACP（dBc） | 55.00 | 55.30 | 54.50 | 54.30 | 53.80 | 53.90 | 53.80 | 54.10 |

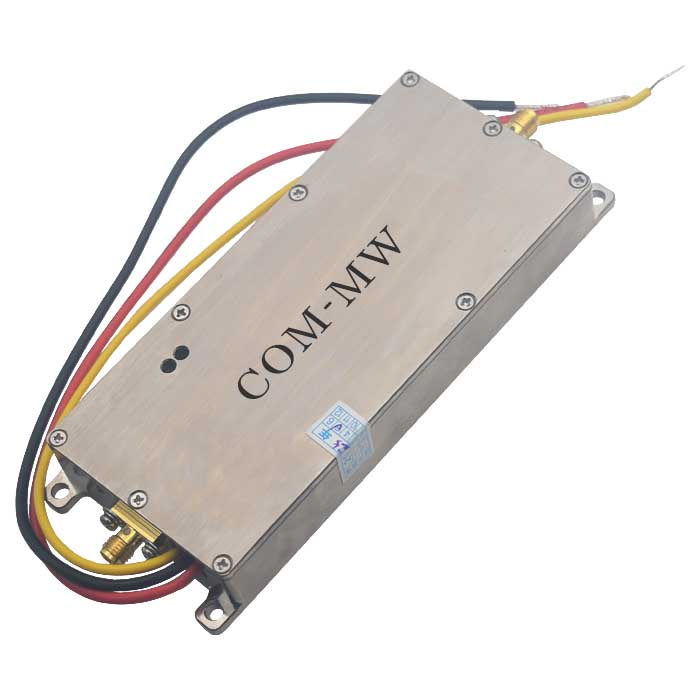

Reference picture

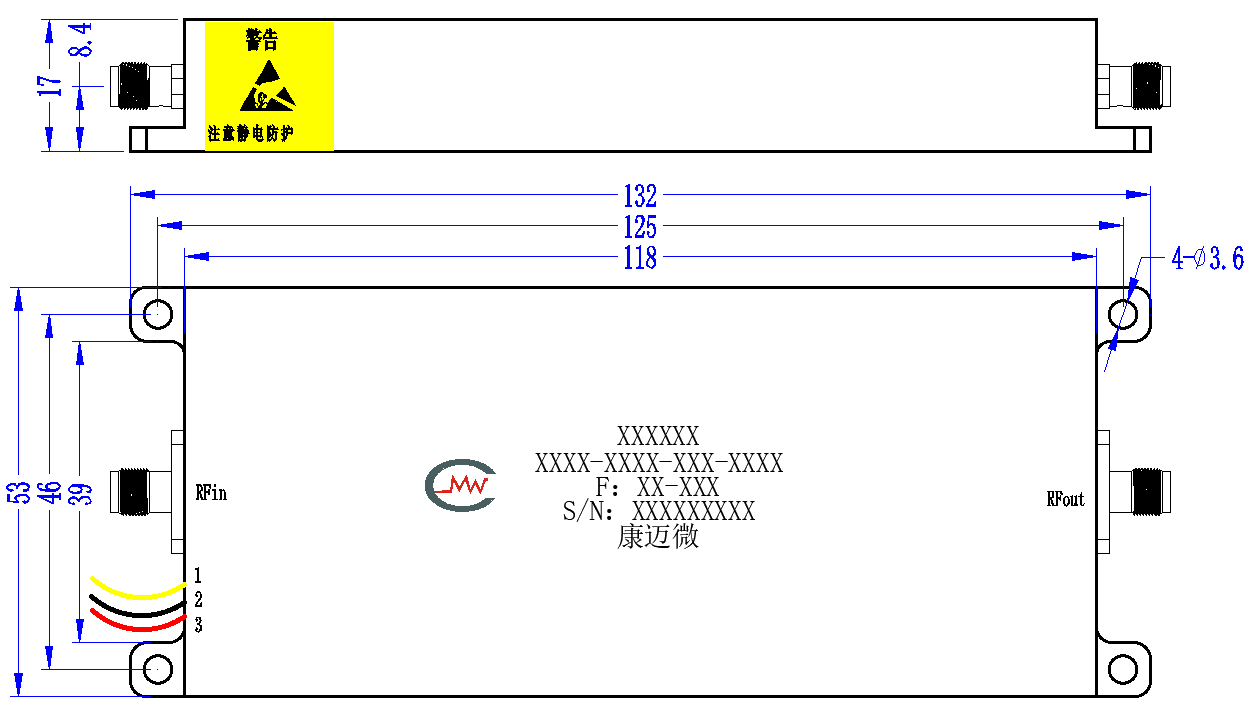

Configuration

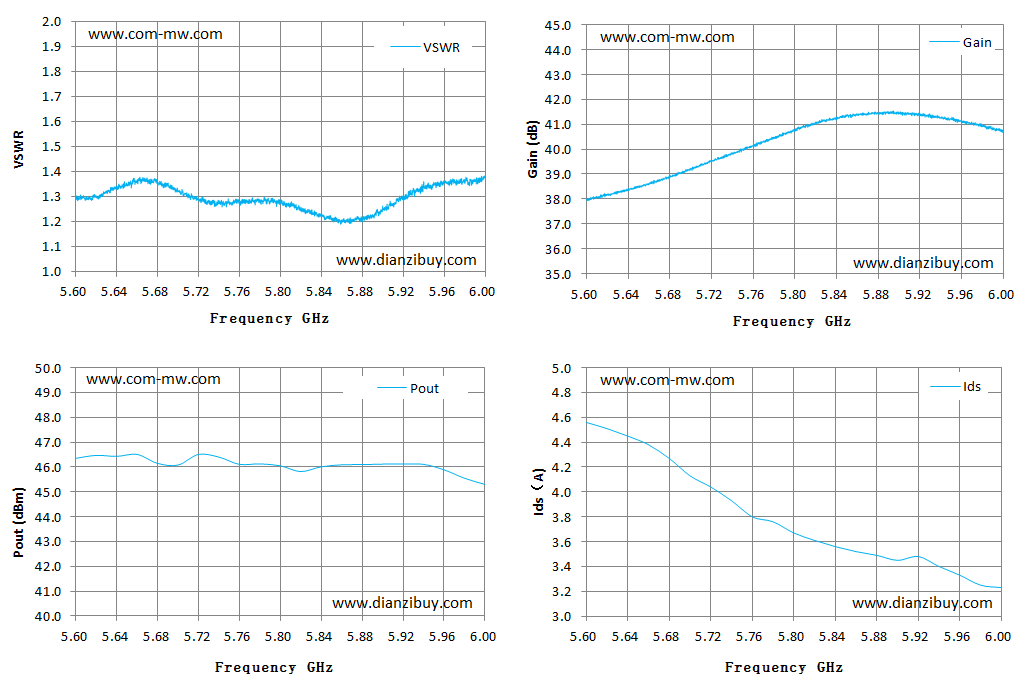

Typical test curve
Port Definition
| No. | Name | definition | Note |
| 1 | EN | Enable (yellow line) | 0:“OFF”；1（+5V）:“ON” |
| 2 | GND | Power Ground (Black Line) | |
| 3 | VD | Power supply (red line) | +28 ±4V |
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Equipped with output on/off control interface
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
