LNA

100~3000MHz, Gain30dB, Noise figure3dB, P-1dB15dBm, SMA

  • DLNA8-0.1-3G-9139
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

Main specifications

ParametersMinTypicalMaxUnits
Frequency100~3000MHz
Gain30dB
Gain flatness±2dB
Noise figure3dB
VSWR2
P-1dB15dBm
Max input power10dBm

Other parameters

ConnectorSMA
Connector materialStainless steel
Impedance50Ω
Working voltage+5-6V
Working current200mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 gainS21 P-1dBP-1dBNoise 噪声 dB
0.101.651.6534.7119.1020.681.35
0.311.181.3335.5218.8220.900.87
0.511.111.2835.6318.7420.990.94
0.721.091.3135.6618.6420.911.02
0.931.091.3335.6918.8720.931.01
1.141.121.3535.7518.8020.861.07
1.341.151.3835.7718.7220.721.11
1.551.201.3435.8618.6220.671.08
1.761.261.4135.8518.3120.511.08
1.961.331.3135.7718.3220.441.17
2.171.431.3435.4218.0720.371.26
2.381.581.2434.7317.9520.191.40
2.591.721.3034.6218.1220.241.35
2.791.821.3834.6518.0520.251.19
3.002.001.3734.3318.0320.291.05

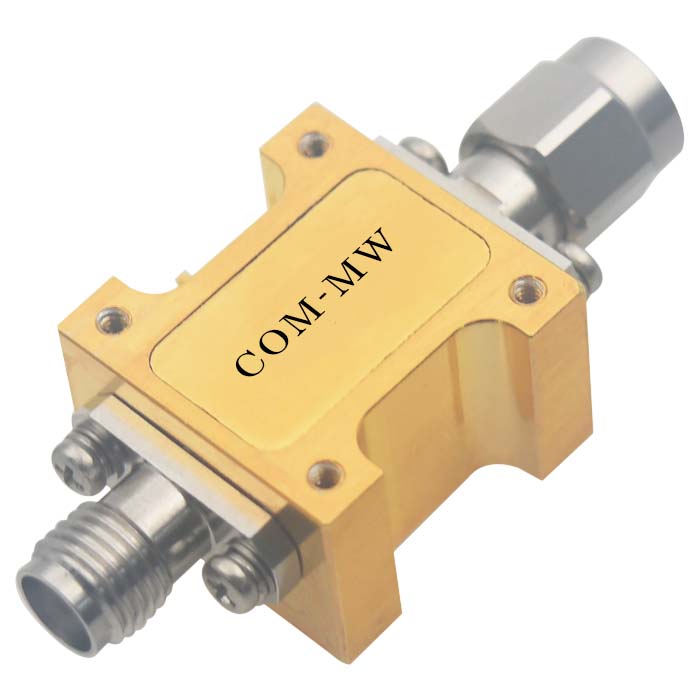

Reference picture

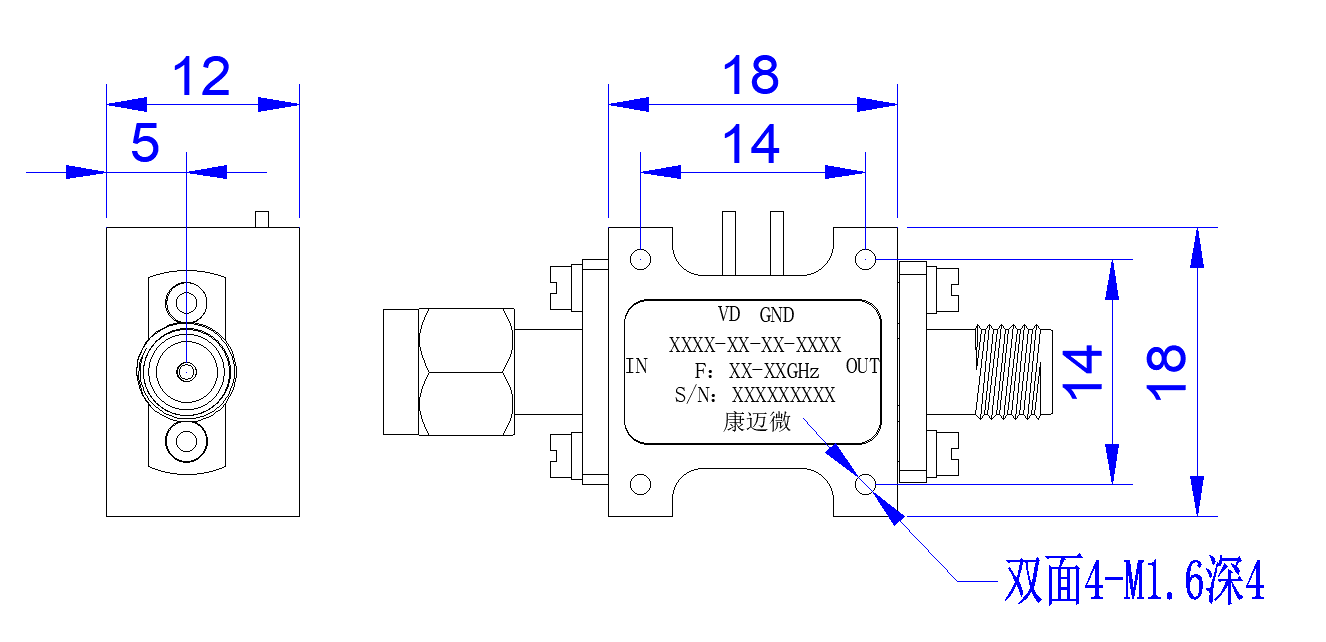

Configuration(mm)

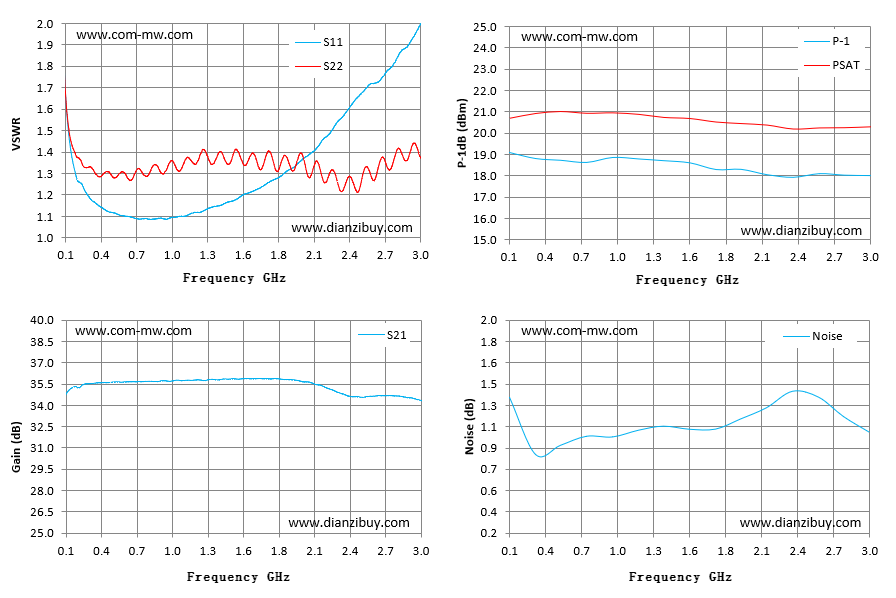

Typical test curve

Note

, When designing, consider the issue of amplifier heat dissipation.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
