P-band low-noise amplifier
200~400MHz, Gain60dB, Noise Temp.43K, P-1dB8dBm, N
- ALNA0.2T0.4G
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low noise, high gain.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 200 | ~ | 400 | MHz |
| Gain | 60 | dB | ||
| Gain flatness | 0.4 | dB | ||
| Noise Temp. | 43 | K | ||
| VSWR | 1.4 | |||
| Gain slope | ±0.1dB | /10MHz | ||
| Gain slope | ±0.2dB | /40MHz | ||
| Gain stability | ±0.1dB | /hour | ||
| Gain stability | ±0.2dB | /day | ||
| Linear group delay | ±0.01ns | /MHz | ||
| Parabolic group delay | ±0.001ns | /(MHz)2 | ||
| Group delay ripple | ±0.1ns | /p-p | ||
| Maxi input level | 0 | dBm | ||
| IM3 | -40dBc | When outputting at -10dBm | ||
| P-1dB | 8 | dBm |
Other parameters
| Connector | N -JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +12-18V； SMA-K interface power supply |
| Working current | 300mA |
| Operation Temp. | -45~+55℃ Design assurance |
| Storage Temp. | -55~+70℃ Design assurance |

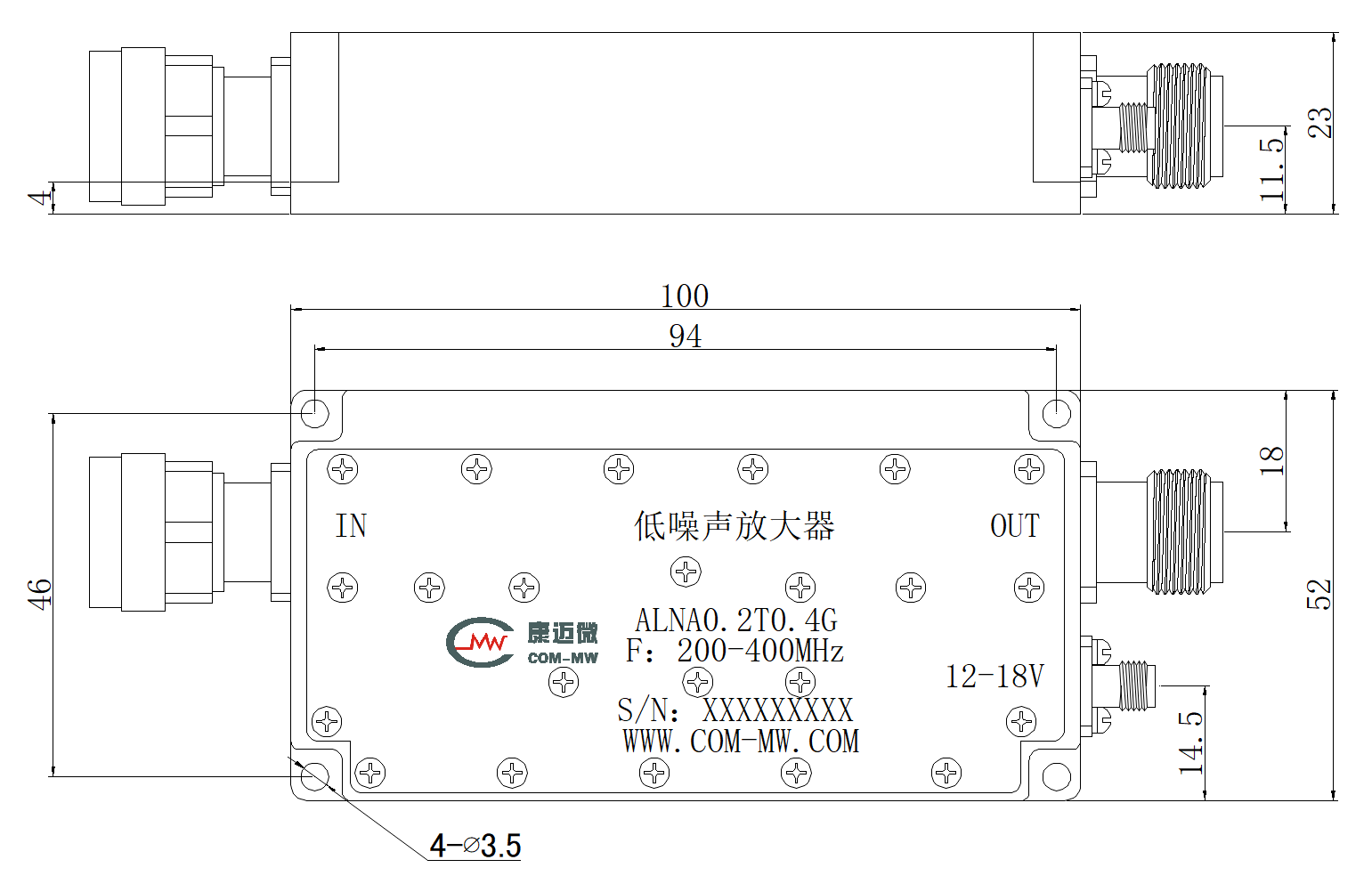

Configuration(mm)

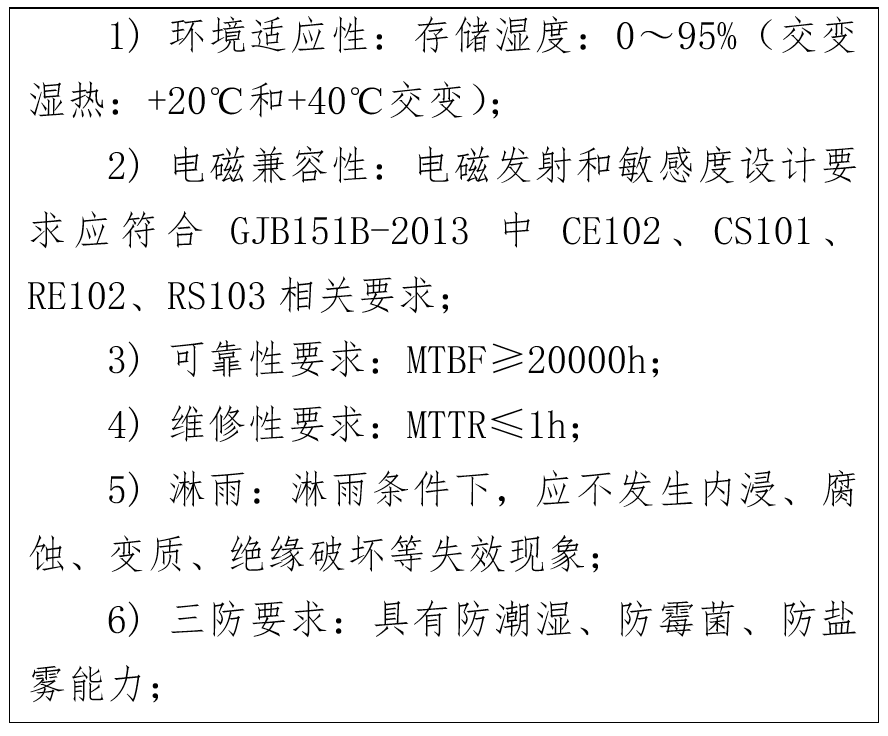

Other
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
