LNA
50kHz~40GHz, Gain30dB, Noise figure6dB, P-1dB20dBm, 2.92
- DLNA8-1-4000000M-9189
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 50kHz | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Noise figure | 6 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 20 | dBm | ||
| Psat | 23 | dBm |
Other parameters
| Connector | 2.92-F or K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 NF dB | P-1 dBm | Psat dBm |
| 0.00005 | 2.41 | 6.38 | 25.97 | \ | \ | \ |
| 0.00025 | 1.21 | 1.83 | 31.34 | \ | 21.60 | 24.50 |
| 0.001 | 1.09 | 1.56 | 31.73 | \ | 21.67 | 24.80 |
| 0.005 | 1.08 | 1.54 | 31.95 | \ | 21.76 | 24.80 |
| 0.01 | 1.07 | 1.45 | 32.09 | 15.02 | 21.75 | 24.65 |
| 3 | 1.01 | 1.38 | 31.41 | 5.24 | 22.30 | 25.00 |
| 6 | 1.11 | 1.15 | 32.40 | 3.89 | 22.97 | 25.80 |
| 9 | 1.18 | 1.30 | 32.36 | 3.36 | 23.20 | 26.00 |
| 12 | 1.13 | 1.30 | 31.74 | 3.77 | 23.10 | 25.80 |
| 15 | 1.18 | 1.37 | 31.31 | 4.18 | 22.30 | 24.70 |
| 18 | 1.48 | 1.33 | 30.78 | 4.35 | 21.90 | 24.70 |
| 21 | 1.51 | 1.45 | 30.90 | 4.54 | 21.80 | 25.10 |
| 24 | 1.36 | 1.53 | 31.26 | 5.22 | 21.50 | 24.90 |
| 27 | 1.47 | 1.18 | 31.33 | 5.61 | 21.60 | 25.10 |
| 30 | 1.26 | 1.26 | 31.83 | 5.94 | 20.40 | 24.60 |
| 33 | 1.18 | 2.04 | 31.39 | 6.17 | 19.60 | 23.70 |
| 36 | 1.86 | 1.95 | 31.57 | 6.74 | 19.60 | 23.40 |
| 39 | 1.42 | 1.58 | 32.91 | 7.25 | 17.50 | 21.90 |
| 42 | 1.56 | 1.93 | 32.05 | 8.33 | 18.20 | 22.30 |

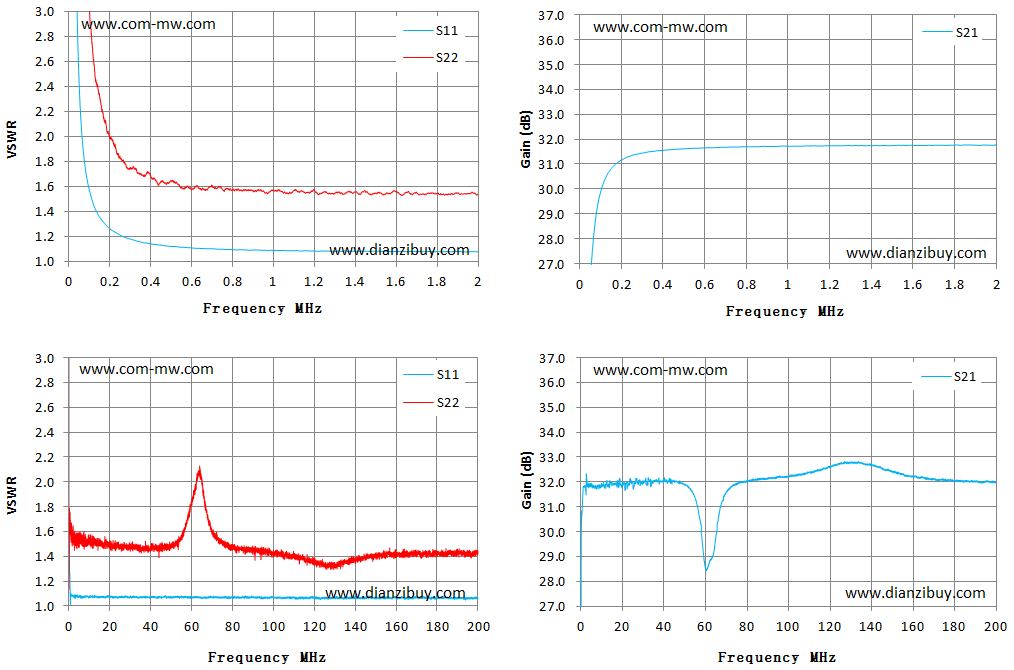

Typical test curve

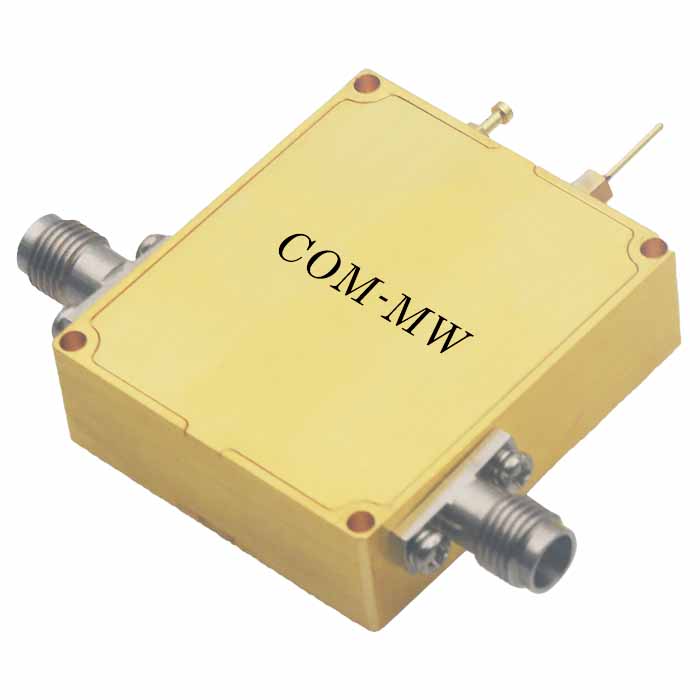

Reference picture

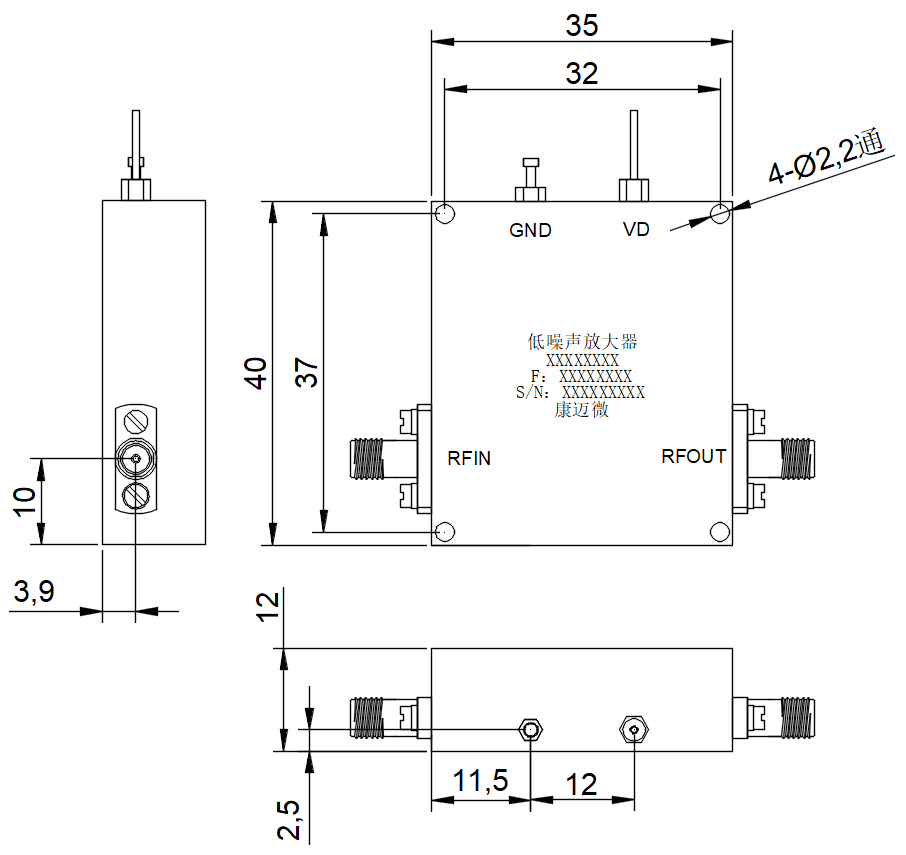

Configuration(mm)

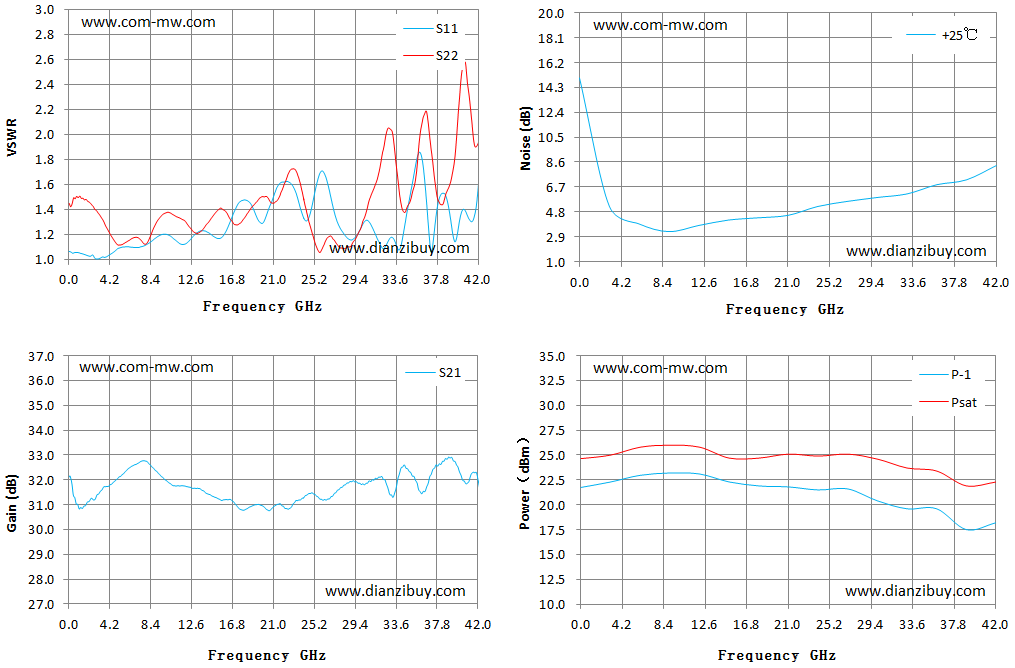

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
