Power amplifier
1000~14000MHz, Gain35dB, Psat39dBm, SMA
- DPA8-1-14G-9578
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 14000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | |||
| Psat | 39 | 40 | dBm |
Other parameters
| Connector | SMA-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 2500mA |
| Operation Temp. | -40~+60℃ Design assurance |
Pin Definition
| No. | definition | Note |
| 1 | VDD | +28V供电 |
| 2 | EN | Enable power amplifier, release high-level power, turn off low-level power amplifier |
| 3 | GND | Ground |

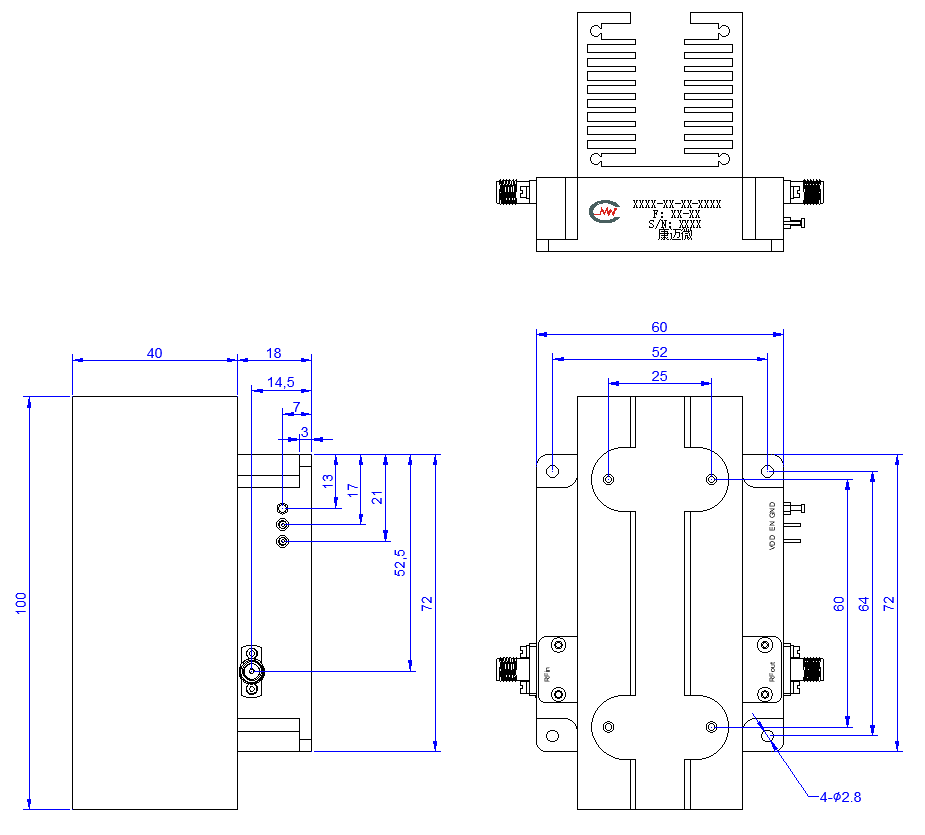

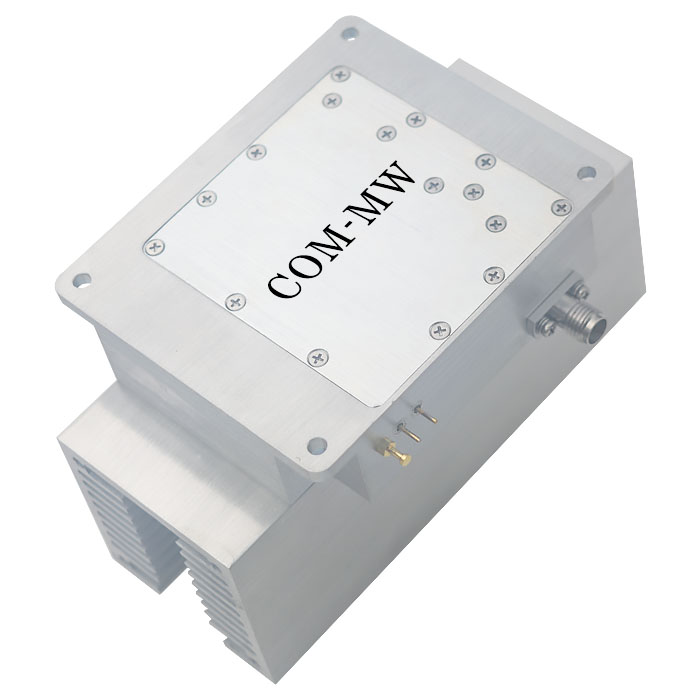

Reference picture
Configuration
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
