LNA
500~6500MHz, Gain40dB, Noise figure2.5dB, P-1dB10dBm, SMA
- DLNA8-500-6500-1722-A2
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
High gain, low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 500 | ~ | 6500 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| Frequency MHz | S11 VSWR | S22 VSWR | S12 Gain | S12 Noise | S21 P-1dB |
| 500 | 1.36 | 1.41 | 43.3 | 2.1 | 18.06 |
| 964 | 1.04 | 1.35 | 43.58 | 2.03 | 18.72 |
| 1429 | 1.12 | 1.29 | 43.87 | 1.92 | 18.46 |
| 1893 | 1.3 | 1.32 | 43.77 | 2.16 | 18.68 |
| 2357 | 1.61 | 1.52 | 43.17 | 2.01 | 17.33 |
| 2821 | 1.83 | 1.75 | 42.59 | 2.34 | 16.28 |
| 3286 | 1.81 | 1.84 | 42.56 | 2.27 | 15.26 |
| 3750 | 1.64 | 1.74 | 43.13 | 2.14 | 14.23 |
| 4214 | 1.66 | 1.47 | 43.22 | 2.29 | 13.25 |
| 4679 | 1.83 | 1.27 | 42.94 | 2.51 | 12.31 |
| 5143 | 1.91 | 1.23 | 42.54 | 2.44 | 11.33 |
| 5607 | 2 | 1.19 | 42.55 | 2.22 | 10.23 |
| 6071 | 1.93 | 1.32 | 42.1 | 2.44 | 9.51 |
| 6536 | 1.56 | 1.41 | 40.35 | 2.49 | 9.06 |
| 7000 | 1.29 | 1.35 | 38.72 | 2.44 | 8.23 |
Reference picture
Configuration(mm)

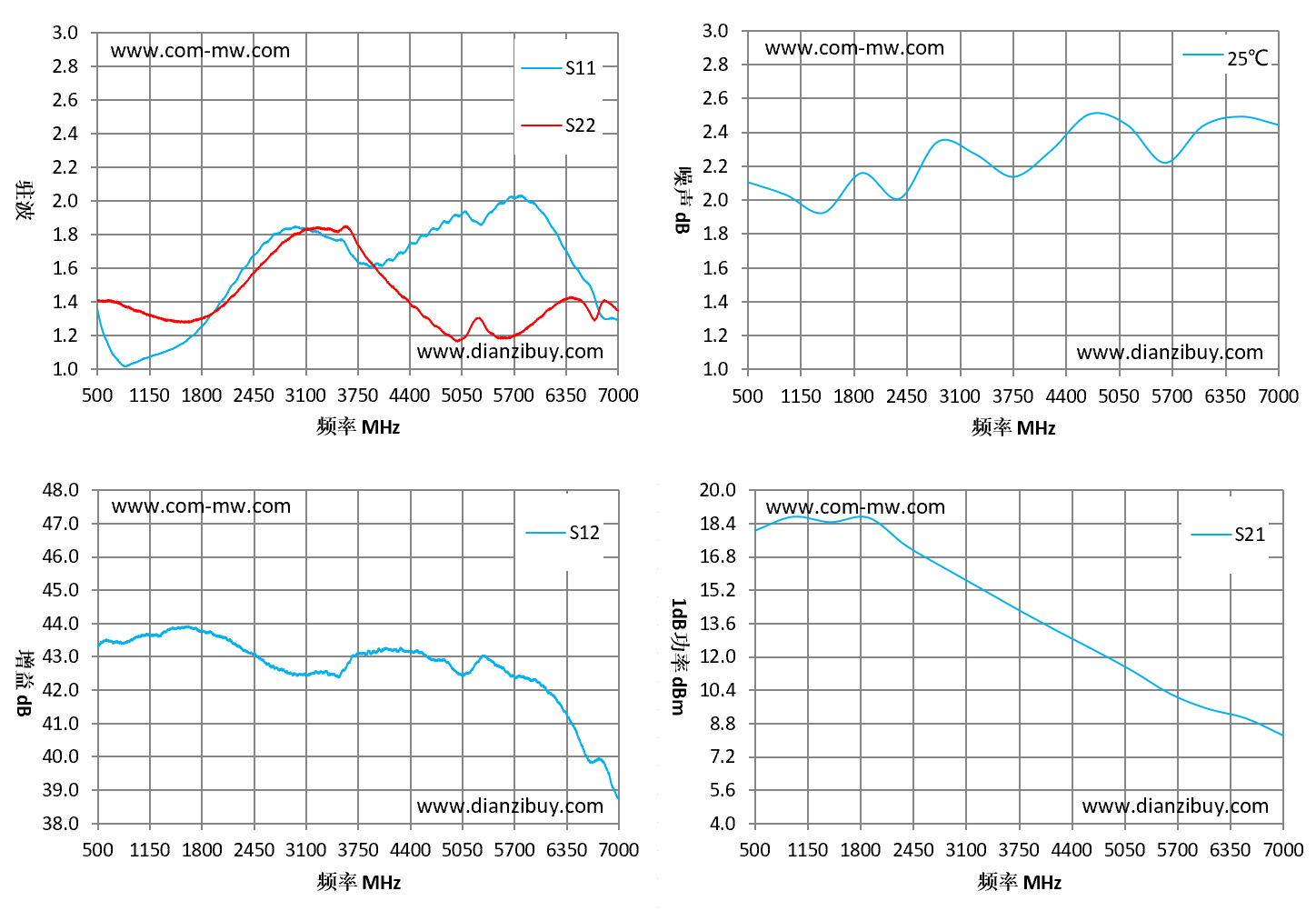

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
