LNA
400~8500MHz, Gain30dB, Noise figure3dB, P-1dB14dBm, SMA
- DLNA8-400-8500-1073
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, gain negative slope.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 8500 | MHz |
| Gain | 30 | 43 | dB | |
| Gain flatness | ≤5dBpk-pk follow gain slope | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 14 | dBm |
Other parameters
| Connector | SMA |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Maximum input power: 10dBm; 400MHz gain ≥ 30, 8500MHz gain ≥ 43. |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 300 | 17.2 | 2.62 | 1.3 | 1.45 | 30.9 |
| 1080 | 17.7 | 2.68 | 1.22 | 1.41 | 31.4 |
| 1960 | 17.2 | 2.36 | 1.33 | 1.49 | 32.6 |
| 2840 | 16.5 | 2.28 | 1.49 | 1.63 | 34.4 |
| 3720 | 16.1 | 1.93 | 1.43 | 1.5 | 35.8 |
| 4600 | 17.2 | 1.89 | 1.21 | 1.2 | 36.9 |
| 5480 | 17.7 | 1.83 | 1.45 | 1.1 | 37.3 |
| 6360 | 18.1 | 1.98 | 1.74 | 1.41 | 38.8 |
| 7240 | 18.3 | 1.78 | 1.68 | 1.79 | 41.7 |
| 8120 | 18.1 | 1.83 | 1.23 | 1.72 | 43.5 |
| 8500 | 17.7 | 2.01 | 1.15 | 1.72 | 43.1 |
Reference picture
Configuration(mm)

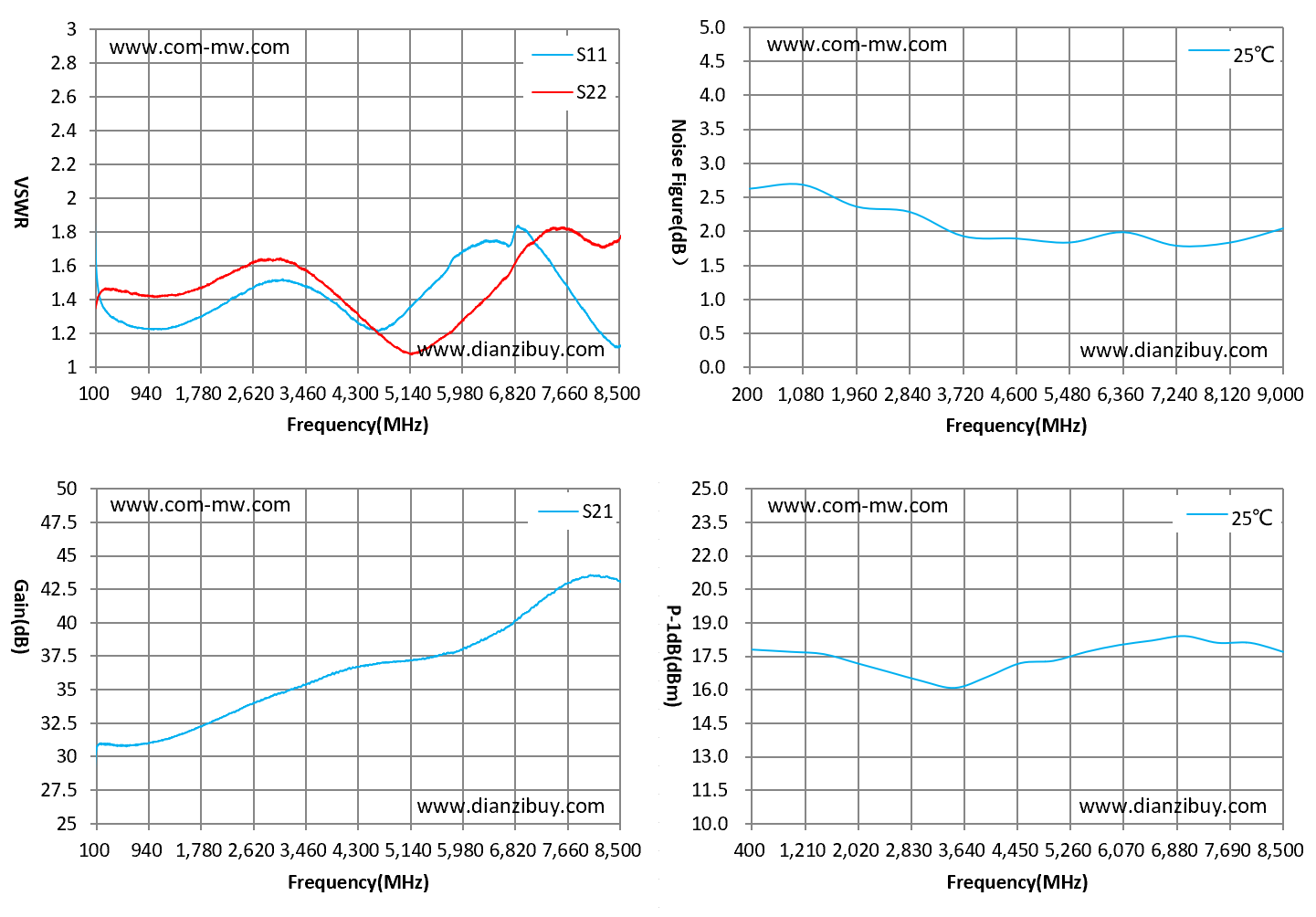

Typical test curve
Testing mode
/
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
