LNA
1~7GHz, Gain33dB, Noise figure1.8dB, P-1dB15dBm, SMA
- DLNA8-1-7G-3478
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 7 | GHz |
| Gain | 33 | dB | ||
| Gain flatness | ±0.5 | ±1 | dB | |
| Noise figure | 1.8 | 2 | dB | |
| VSWR | 1.8 | 2 | ||
| P-1dB | 15 | dBm | ||
| OIP3 | 25 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 150mA |
| Reverse isolation | 55dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency MHz | S11 | S22 | GaindB | NFdB | P-1dBm | Psat dBm |
| 571 | 2.19 | 1.8 | 30.52 | 2.9 | 14.62 | 16.68 |
| 1143 | 1.43 | 1.59 | 35.11 | 1.51 | 18.21 | 18.88 |
| 1714 | 1.59 | 1.55 | 35.14 | 1.74 | 18.37 | 19.48 |
| 2286 | 1.56 | 1.44 | 35.07 | 1.48 | 18.16 | 19.45 |
| 2857 | 1.49 | 1.37 | 35.03 | 1.61 | 18.22 | 19.49 |
| 3429 | 1.4 | 1.37 | 34.98 | 1.62 | 18.43 | 19.71 |
| 4000 | 1.34 | 1.37 | 34.94 | 1.5 | 18.51 | 19.69 |
| 4571 | 1.3 | 1.37 | 34.89 | 1.68 | 18.33 | 19.4 |
| 5143 | 1.27 | 1.36 | 34.84 | 1.68 | 18.39 | 19.1 |
| 5714 | 1.24 | 1.36 | 34.78 | 1.68 | 18.48 | 19.16 |
| 6286 | 1.22 | 1.36 | 34.7 | 1.78 | 18.43 | 19.16 |
| 6857 | 1.34 | 1.36 | 34.31 | 1.72 | 18.47 | 19.15 |
| 7429 | 1.79 | 1.32 | 33.34 | 1.86 | 18.85 | 19.27 |
| 8000 | 2.59 | 1.41 | 31.34 | 2.17 | 18.95 | 19.42 |
Reference picture
Configuration(mm)

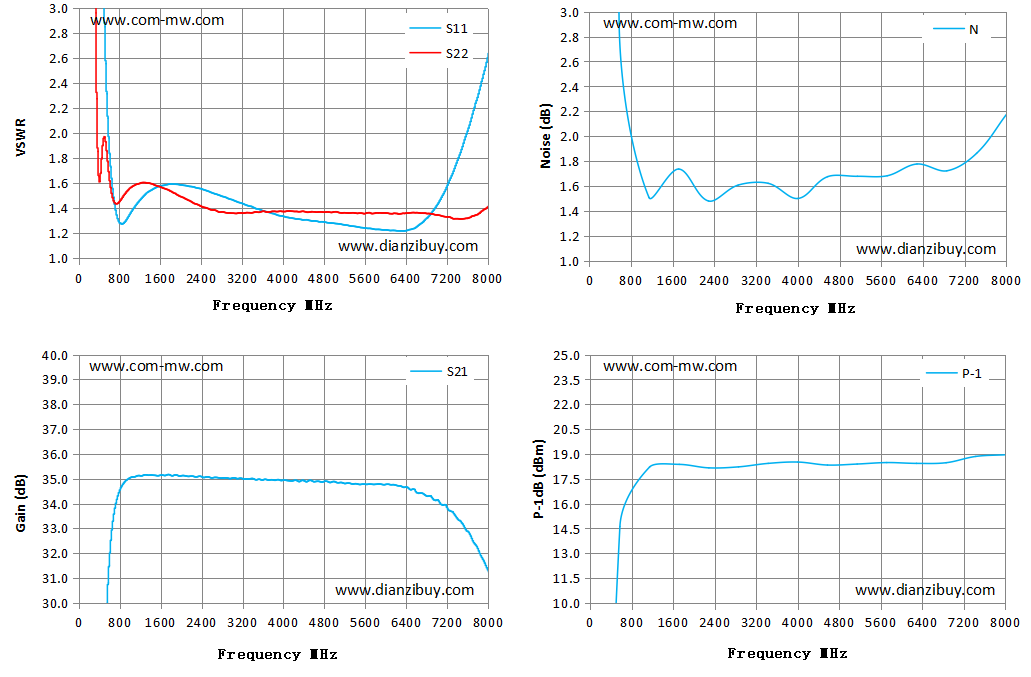

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
