Power amplifier
7700~12000MHz, Gain35dB, Psat35dBm, SMA
- DPA8-8000-12000-3379
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 7700 | ~ | 12000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | |||
| Noise figure | 3 | dB | ||
| Psat | 35 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 3000mA |
| Operation Temp. | -40~+70℃ Design assurance |

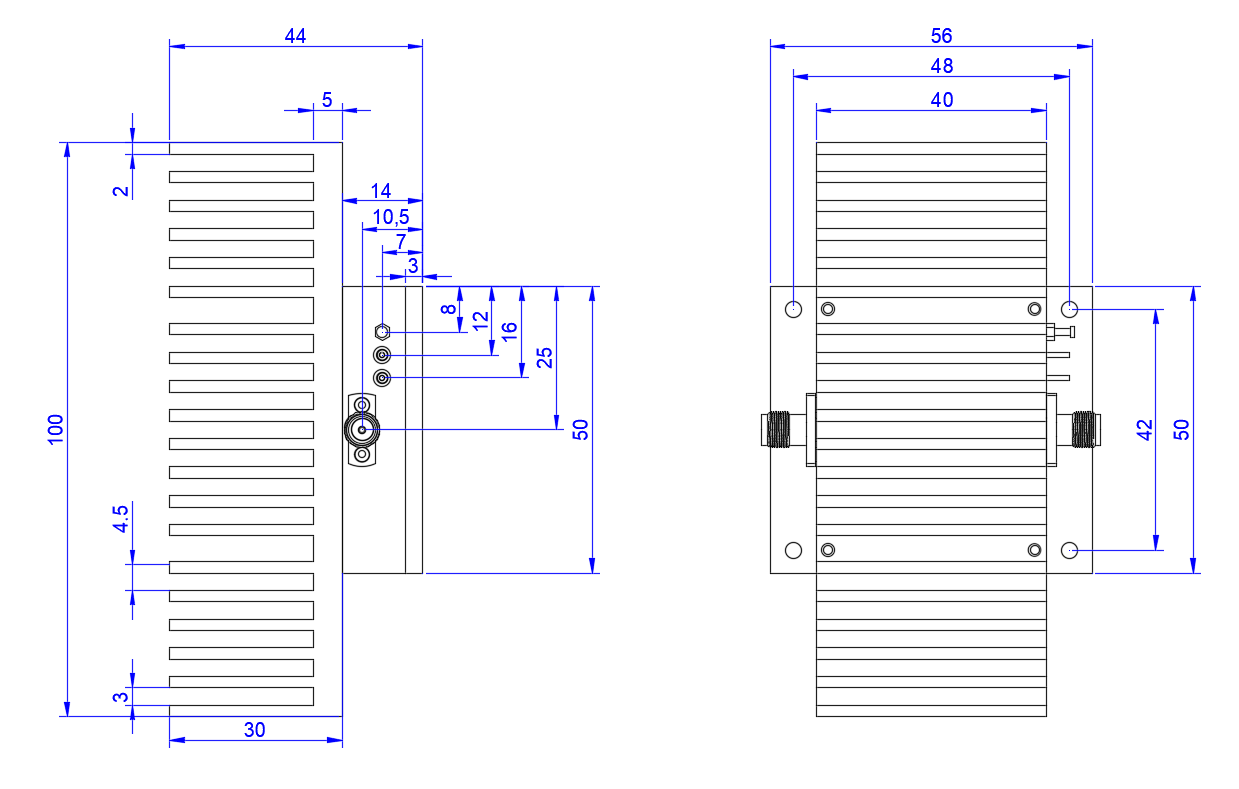

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
