Power amplifier
600~18000MHz, Gain38dB@line, Psat30dBm, SMA
- DPA8-0.6-18G-4010
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, detachable heat sink.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 600 | ~ | 18000 | MHz |
| Gain | 38 | 40 | dB@line | |
| Gain flatness | ±3 | dB | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm | ||
| Harmonic Rejection | 13 | dBc@Posat | ||
| Spurious suppression | 65 | dBc | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +15V |
| Working current | 1000mA |
| Operation Temp. | -40~+70℃ |
Typical test data
| Fequency（GHz） | 0.6 | 2.94 | 5.79 | 8.63 | 11.47 | 14.31 | 17.16 | 20 |
| VSWR in | 2.02 | 1.67 | 1.49 | 1.60 | 1.47 | 1.93 | 1.85 | 1.92 |
| VSWR out | 1.31 | 1.32 | 1.39 | 1.31 | 1.19 | 1.38 | 1.65 | 1.57 |
| GAIN（dB）Line | 44.24 | 41.81 | 40.49 | 40.69 | 40.40 | 40.40 | 40.72 | 39.30 |
| P-dBout（dBm） | 32.18 | 33.12 | 34.18 | 34.17 | 32.80 | 32.18 | 32.52 | 31.74 |
| Ids-1dB（A) | 0.76 | 0.79 | 0.81 | 0.79 | 0.80 | 0.78 | 0.82 | 0.82 |
| Pout（sat）（dBm） | 32.73 | 33.40 | 34.14 | 34.32 | 33.44 | 33.01 | 32.85 | 31.97 |
| Ids（A） | 0.77 | 0.79 | 0.81 | 0.79 | 0.85 | 0.85 | 0.86 | 0.87 |
| Pin（sat）（dBm） | -9.72 | -7.46 | -7.89 | -7.86 | -6.67 | -6.60 | -7.84 | -7.74 |
| Gain（sat）（dB） | 42.45 | 40.86 | 42.03 | 42.18 | 40.11 | 39.61 | 40.69 | 39.71 |
| 2nd harmonic rejection (dBc) | 25.69 | 18.40 | 15.56 | 13.59 | 17.30 | 18.20 | 22.66 | 25.00 |
| Stray (dBc) | 65.8 | 65.5 | 65.2 | 65.1 | 66.1 | 66.8 | 66.5 | 67.3 |

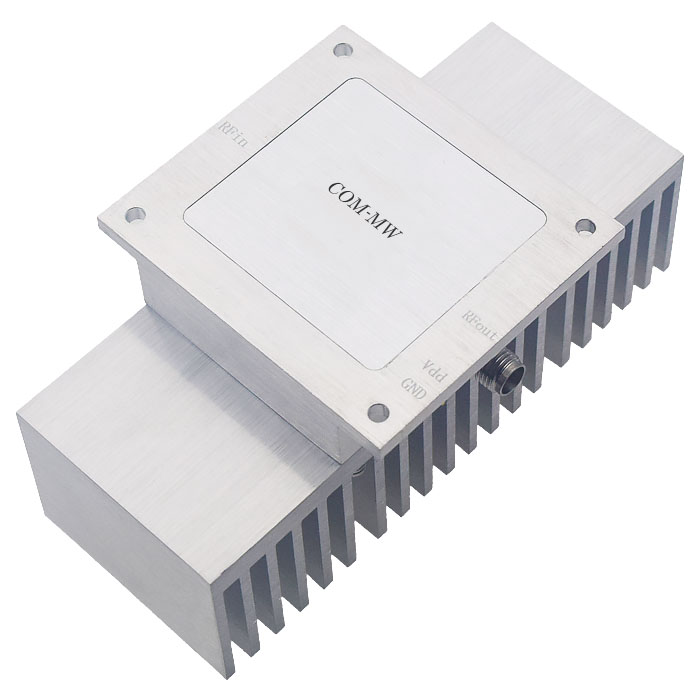

Reference picture

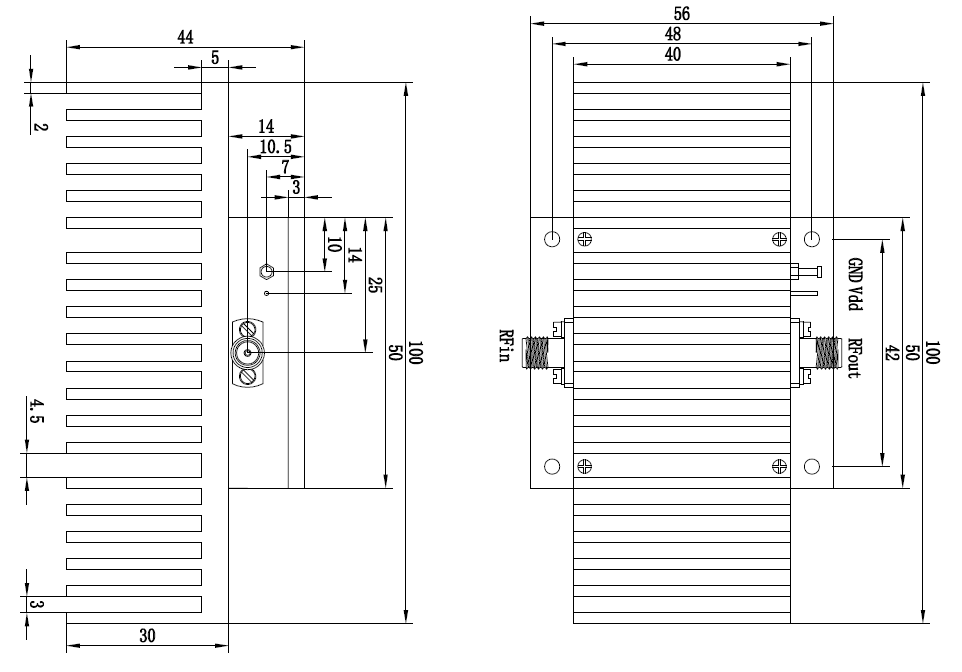

Configuration
Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
长期工作时，请增加外部辅助散热措施
产品输出端不能空载。
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
