LNA
1000~18000MHz, Gain40dB, Noise figure2dB, P-1dB10dBm, SMA
- DLNA8-1-18G-4062
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 18000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 2 | 2.5 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12~15V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | 接口DC5.5mm(外径)*2.1mm(内孔径) |
| AC Adapter | 线性电源500K-DC12V1A |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | POUT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.50 | 5.15 | 1.82 | 34.71 | 13.38 | 14.58 | 5.44 |
| 1.82 | 1.53 | 1.34 | 50.20 | 17.45 | 18.35 | 1.35 |
| 3.14 | 2.12 | 1.84 | 48.58 | 18.28 | 18.98 | 1.15 |
| 4.46 | 1.34 | 1.26 | 49.61 | 18.15 | 18.95 | 1.41 |
| 5.79 | 1.33 | 1.44 | 49.33 | 18.28 | 18.78 | 1.76 |
| 7.11 | 1.91 | 1.60 | 47.63 | 18.42 | 18.92 | 1.28 |
| 8.43 | 1.67 | 1.34 | 47.29 | 18.18 | 18.58 | 1.30 |
| 9.75 | 1.18 | 1.26 | 48.84 | 18.42 | 18.82 | 1.47 |
| 11.07 | 1.55 | 1.42 | 48.45 | 18.34 | 18.84 | 1.66 |
| 12.39 | 2.12 | 1.30 | 47.09 | 18.30 | 18.60 | 1.81 |
| 13.71 | 1.34 | 1.54 | 48.32 | 18.16 | 19.06 | 1.62 |
| 15.04 | 1.24 | 1.82 | 48.15 | 18.78 | 19.18 | 1.71 |
| 16.36 | 1.59 | 1.66 | 47.08 | 18.21 | 18.91 | 1.99 |
| 17.68 | 1.88 | 1.31 | 48.04 | 18.06 | 18.86 | 2.06 |
| 19.00 | 1.72 | 1.68 | 46.07 | 17.43 | 18.63 | 2.33 |

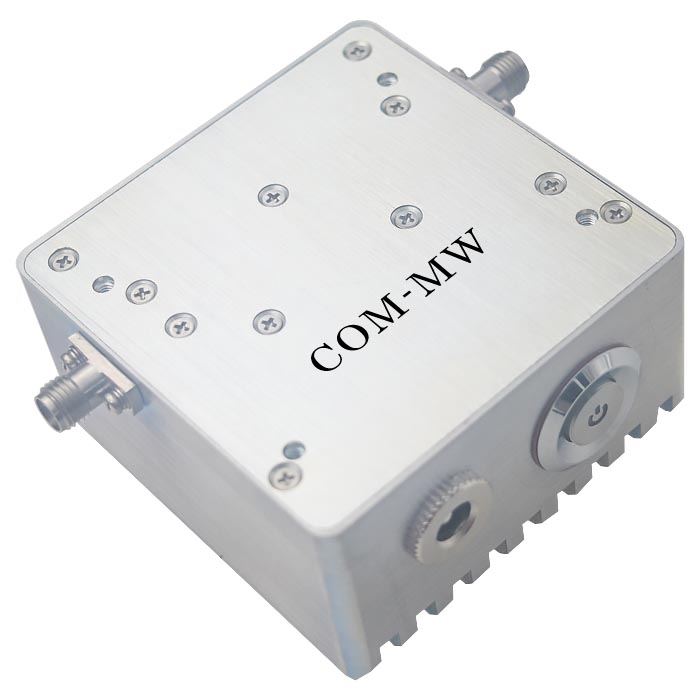

Reference picture

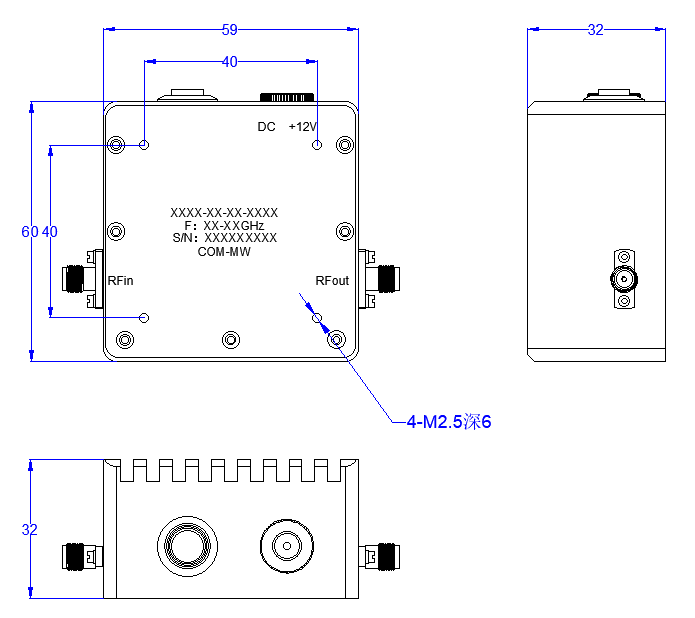

Configuration(mm)

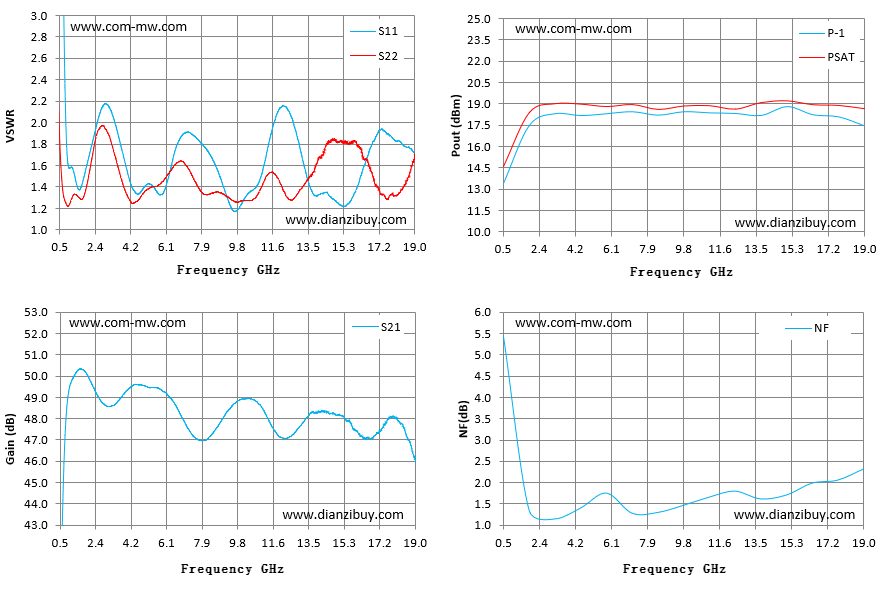

Typical test curve
Note
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
