LNA
1000~18000MHz, Gain40dB, Noise figure3dB, P-1dB15dBm, SMA
- DLNA8-1-18G-3022
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 18000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12~15V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Powered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture) |
AC Adapter
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 0.5 | 5.07 | 1.79 | 35.54 | 14 | 15.2 | 5.62 |
| 1.82 | 1.48 | 1.38 | 50.26 | 18.1 | 19 | 1.5 |
| 3.14 | 2.04 | 1.84 | 48.95 | 18.9 | 19.6 | 1.27 |
| 4.46 | 1.31 | 1.27 | 49.91 | 18.8 | 19.6 | 1.53 |
| 5.79 | 1.25 | 1.5 | 49.49 | 18.8 | 19.3 | 1.88 |
| 7.11 | 1.72 | 1.66 | 47.95 | 19 | 19.5 | 1.42 |
| 8.43 | 1.85 | 1.38 | 47.6 | 18.7 | 19.1 | 1.47 |
| 9.75 | 1.67 | 1.39 | 48.79 | 19.1 | 19.5 | 1.64 |
| 11.07 | 1.93 | 1.56 | 48.25 | 19 | 19.5 | 1.79 |
| 12.39 | 1.89 | 1.34 | 47.61 | 18.9 | 19.2 | 1.93 |
| 13.71 | 1.27 | 1.54 | 48.75 | 18.7 | 19.6 | 1.81 |
| 15.04 | 1.3 | 1.69 | 48.42 | 19.3 | 19.7 | 1.9 |
| 16.36 | 1.84 | 1.7 | 47.45 | 18.9 | 19.6 | 2.12 |
| 17.68 | 1.59 | 1.24 | 49.14 | 18.6 | 19.4 | 2.19 |
| 19 | 1.38 | 1.74 | 45.6 | 18 | 19.2 | 2.43 |

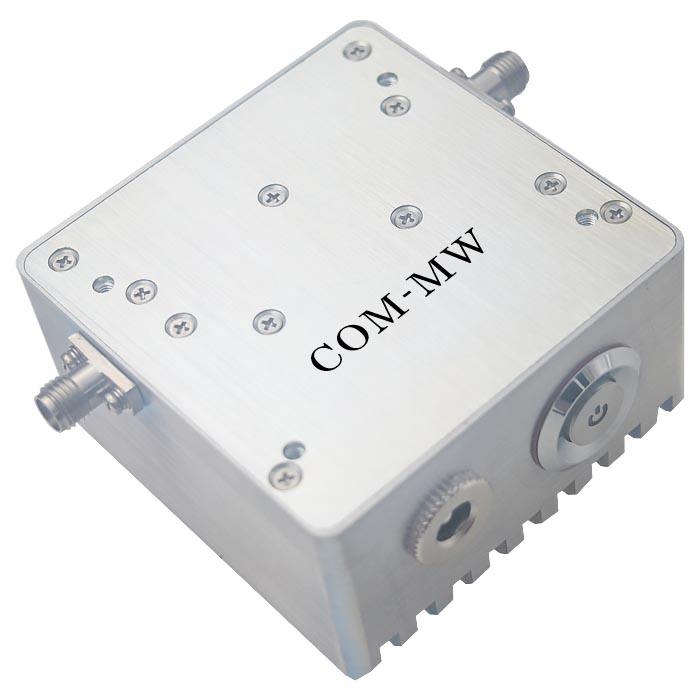

Reference picture

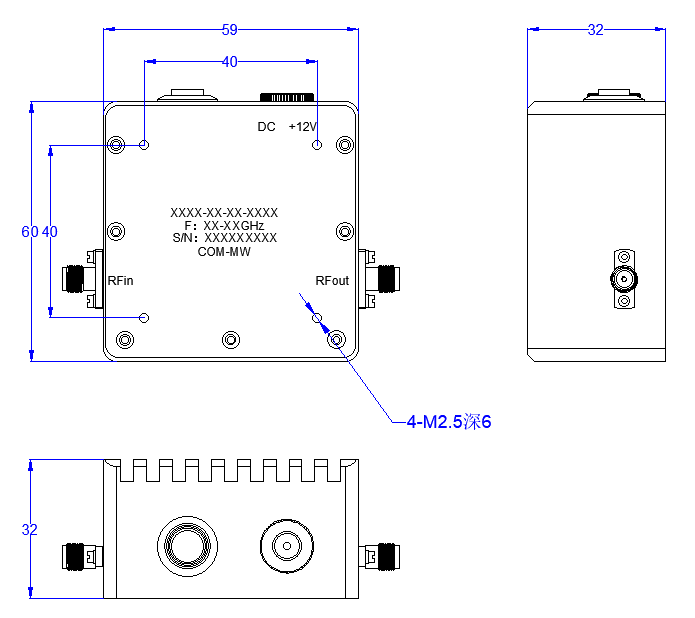

Configuration(mm)

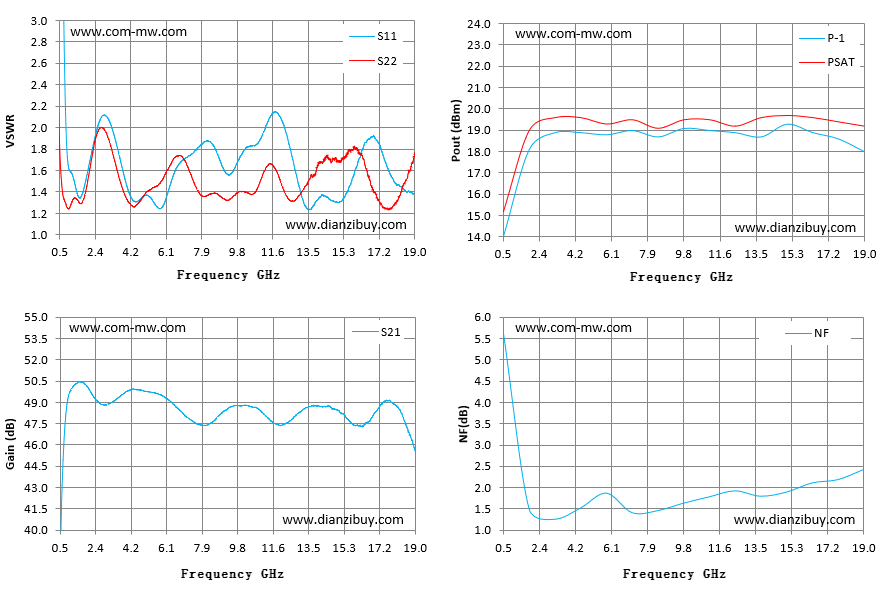

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
