LNA

6~18GHz, Gain45dB, Noise figure1.9dB, P-1dB10dBm, SMA

  • DLNA8-6-18G-3015
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Product features

High gain, low noise

Main specifications

ParametersMinTypicalMaxUnits
Frequency6~18GHz
Gain45dB
Gain flatness3dB
Noise figure1.9dB
VSWR1.6
P-1dB10dBm
Max input power10dBm

Other parameters

ConnectorSMA-K detachable, Pin 0.38mm
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current300mA
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 GainS21 NoiseP-1 dBm
41.563.9847.271.897.6
5.141.51.9551.51.519.9
6.291.061.1651.361.312.2
7.431.471.250.661.2413.1
8.571.311.3750.371.3413.1
9.711.131.4550.111.3113.5
10.861.181.5350.371.3113.4
121.111.4550.511.5212.5
13.141.131.2850.991.5112.4
14.291.221.1851.741.5313.2
15.431.221.1652.591.6813.1
16.571.11.3252.441.7812.8
17.711.321.552.741.8312.8
18.861.171.454.281.7512.8
201.371.3154.381.8712.9

Reference picture

Configuration(mm)

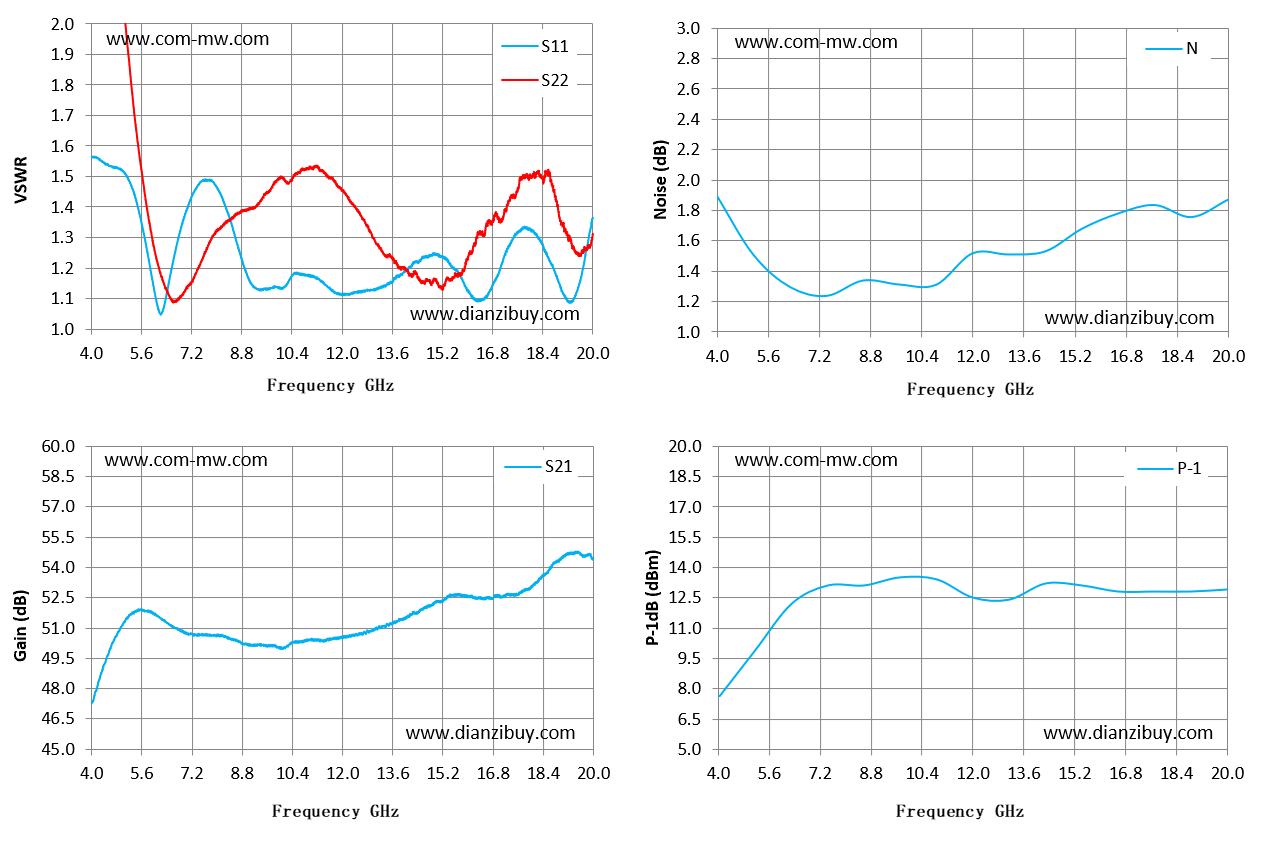

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
