LNA
10~3000MHz, Gain35dB, Noise figure2.8dB, P-1dB10dBm, N
- DLNA8-10-3000-9258
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 3000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 2.8 | dB | ||
| VSWR | 2.7 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Powered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture) |
AC Adapter

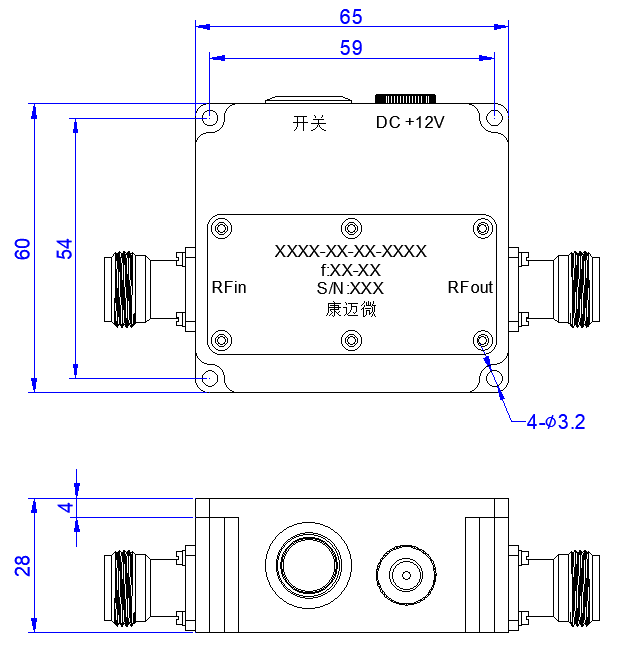

Configuration(mm)
Note
存储在湿度小于25%的环境，注意防尘防静电;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
