Power amplifier
1~18GHz, Gain30dB, P-1dB30dBm, Psat35dBm, SMA
- DPA8-1-18G-2628
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2 | ±2.5 | dB | |
| Input VSWR | 2 | |||
| Output VSWR | 2.5 | |||
| P-1dB | 30 | dBm | ||
| Psat | 35 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 1800mA |
| Operation Temp. | -40~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Reverse isolation ≥ 80dB; IP3≥35dBm |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | IDD@P-1 | IDD@PSAT |
| GHz | VSWR | VSWR | dB | dBm | dBm | A | A |
| 0.5 | 1.35 | 4.11 | 34.49 | 27.8 | 33.6 | 0.95 | 1.06 |
| 1.82 | 1.15 | 1.61 | 38 | 34.35 | 38.4 | 1 | 1.24 |
| 3.14 | 1.24 | 1.84 | 36.62 | 33.53 | 38.6 | 1.02 | 1.33 |
| 4.46 | 1.18 | 1.35 | 36.17 | 33.54 | 38.4 | 1 | 1.29 |
| 5.79 | 1.17 | 1.34 | 36.83 | 33.4 | 38.2 | 0.99 | 1.31 |
| 7.11 | 1.13 | 1.55 | 36.41 | 33.98 | 37.7 | 0.99 | 1.27 |
| 8.43 | 1.13 | 1.44 | 36.33 | 33.46 | 36.9 | 0.98 | 1.33 |
| 9.75 | 1.25 | 1.48 | 36.4 | 34.4 | 37.2 | 0.92 | 1.25 |
| 11.07 | 1.45 | 1.79 | 35.93 | 32.67 | 36.4 | 0.92 | 1.27 |
| 12.39 | 1.67 | 1.6 | 36.07 | 33.86 | 36.5 | 0.94 | 1.19 |
| 13.71 | 1.56 | 2.18 | 35.77 | 33.44 | 35.9 | 0.96 | 1.24 |
| 15.04 | 1.43 | 1.6 | 36.59 | 33.7 | 35.6 | 0.97 | 1.18 |
| 16.36 | 1.23 | 1.46 | 36.22 | 34.1 | 35.5 | 0.99 | 1.14 |
| 17.68 | 1.62 | 1.08 | 36.95 | 33.65 | 34.6 | 0.96 | 1.1 |
| 19 | 2.23 | 1.18 | 35.19 | 30.93 | 31.4 | 0.93 | 1.02 |

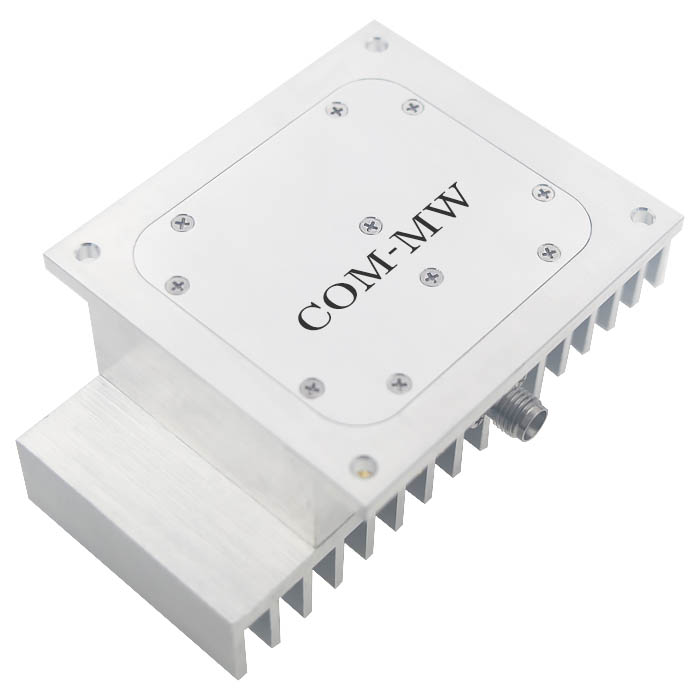

Reference picture

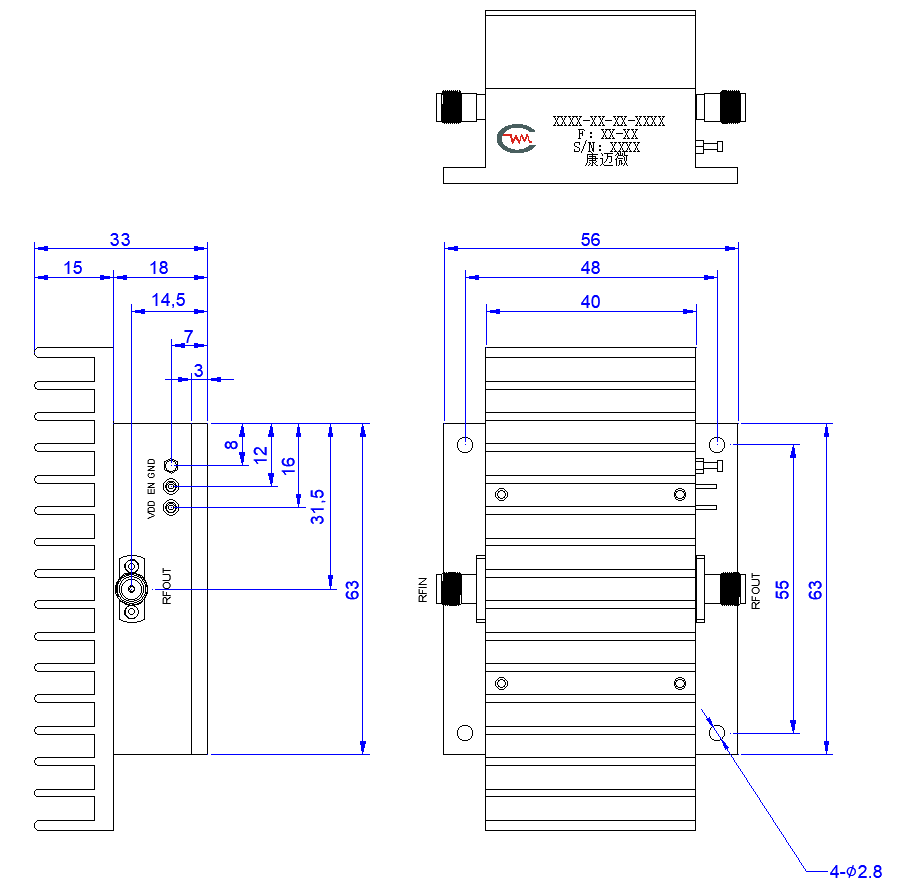

Configuration

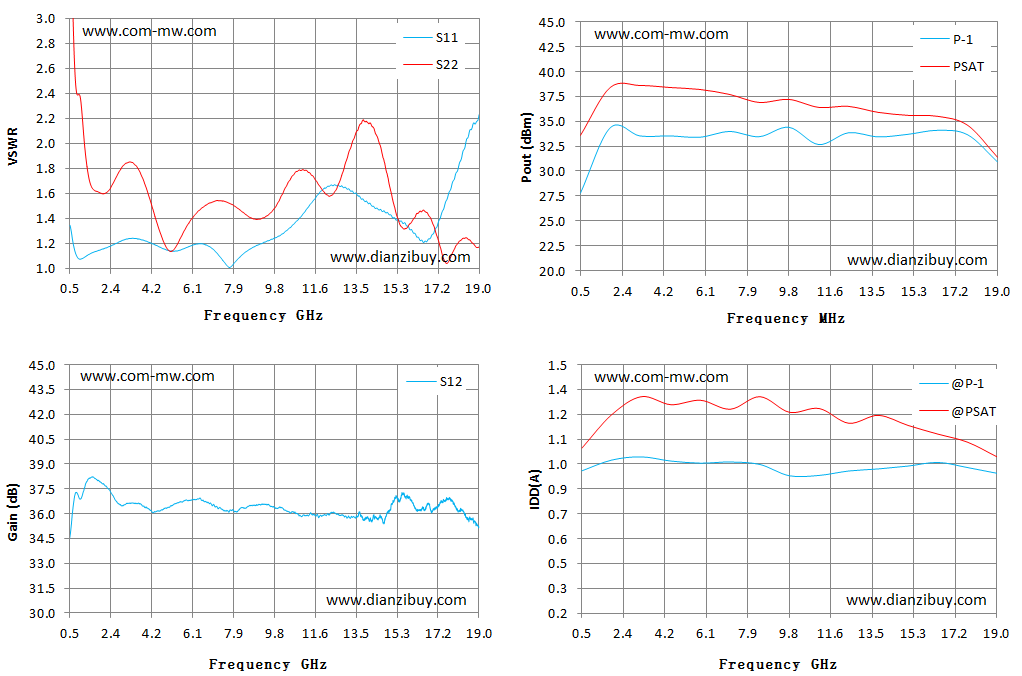

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
